ASROCK B550 EXTREME 4 AMD DDR4 MOTHERBOARD AM4
180 $
Brand New ~ 1 Year Warranty ~
Does Not Include Physical Damage
Only 2 left in stock

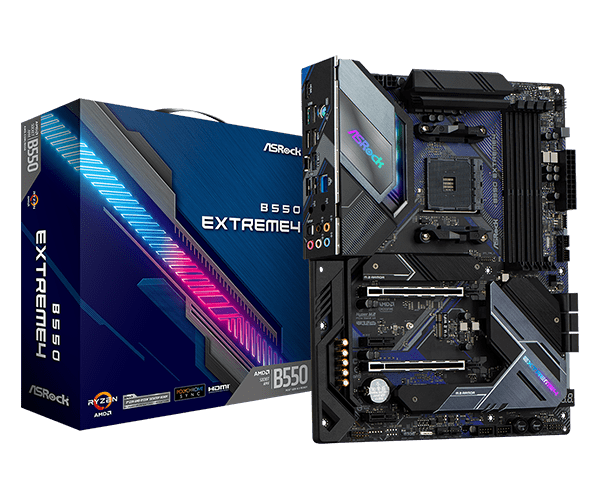

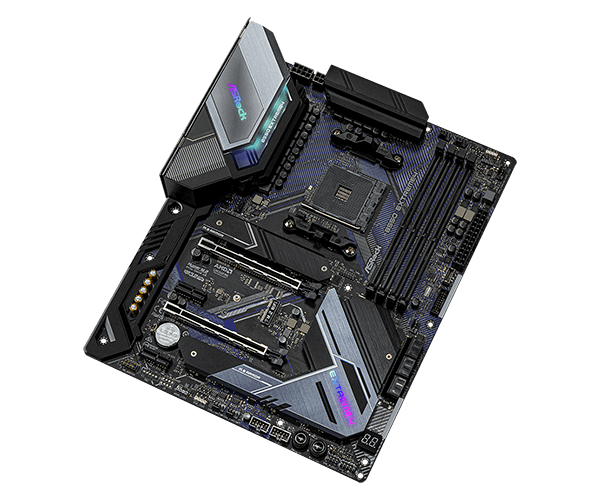

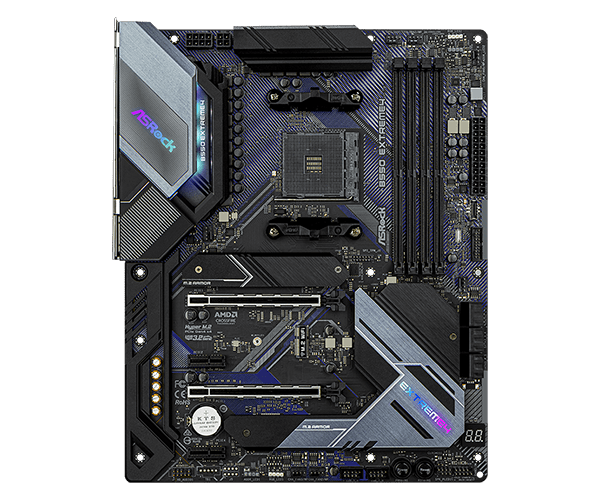

The ASRock B550 Extreme4 is a high-performance ATX motherboard designed for AMD Ryzen processors, offering exceptional power delivery, PCIe 4.0 support, and premium features for gaming and productivity builds.
Component |
Details |
|---|---|
Form Factor |
ATX |
CPU Socket |
AM4 |
Chipset |
AMD B550 |
CPU Support |
AMD Ryzen 3000, 4000 G-Series, 5000, 5000 G-Series |
Power Design |
14-phase Dr.MOS VRM |
Memory Support |
4× DDR4 DIMMs, up to 128GB, up to 4733MHz (OC) |
PCIe Slots |
1× PCIe 4.0 x16 (steel reinforced), 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 |
M.2 Slots |
1× PCIe 4.0 x4 (M.2_1), 1× PCIe 3.0 x2/SATA (M.2_2) |
SATA Ports |
6× SATA III 6Gb/s |

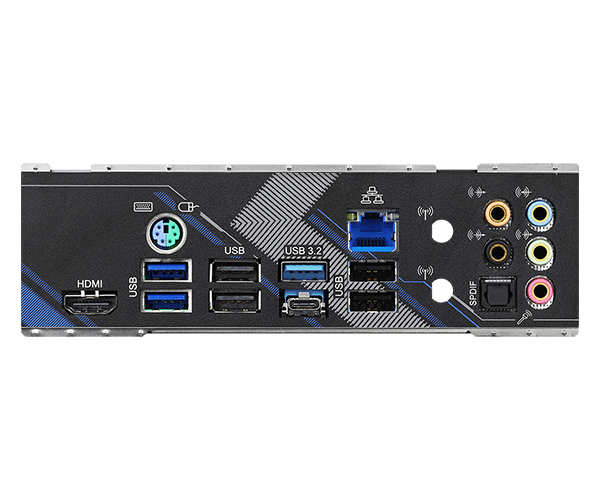

USB Ports (Rear) |
2× USB 3.2 Gen2 (1× Type-A, 1× Type-C), 2× USB 3.2 Gen1, 4× USB 2.0 |
USB Ports (Internal) |
USB 3.2 Gen2 Type-C header, USB 3.2 Gen1 headers, USB 2.0 headers |
Networking |
Realtek 2.5G LAN |
Audio |
Realtek ALC1220 7.1 HD Audio, Nahimic Audio |
Video Outputs |
HDMI 2.1, DisplayPort 1.4 |
RGB Support |
Polychrome RGB, 2× addressable RGB headers, 2× RGB headers |
Other Features |
Debug LED, onboard power/reset buttons, reinforced PCIe, large heatsinks, full spike protection |
Dimensions |
30.5 cm x 24.4 cm |
-
Supports AMD Ryzen 3000, 4000G, and 5000 series CPUs with PCIe 4.0 capabilities
-
14-phase Dr.MOS power delivery for stable overclocking and performance
-
Dual M.2 slots including PCIe 4.0 x4 for ultra-fast NVMe SSDs
-
Premium audio with Realtek ALC1220 codec and Nahimic enhancements
-
2.5Gb Ethernet for high-speed networking
-
Extensive RGB lighting support with addressable headers
-
Onboard buttons and debug LED for easy diagnostics and tuning
