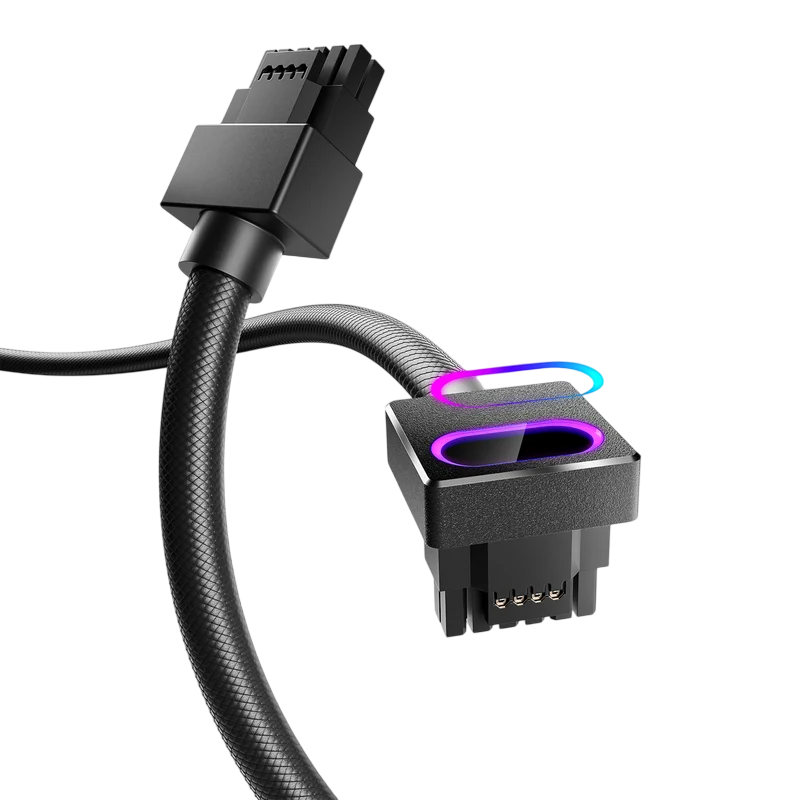

ASIA HORSE HYDRUS ARGB 16PIN GPU 50CM A EXTENSION CABLE - BLACK

  • TYPE: PC Accessories
Brand New
$30.00
ASIA HORSE HYDRUS ARGB 16PIN GPU 50CM A EXTENSION CABLE - BLACK

Notify me when ASIA HORSE HYDRUS ARGB 16PIN GPU 50CM A EXTENSION CABLE - BLACK - Default Title becomes available.

The AsiaHorse Hydrus ARGB 16-Pin (12+4 Pin / 12V-2x6 / 12VHPWR) PCIe 5.0 GPU Extension Cable (50cm Type A) in Sleek Black is an ultra-premium power delivery and aesthetic upgrade engineered for modern high-TDP graphics cards. Built with heavy-duty 16AWG pure copper conductors and 28AWG sideband signal lines, it reliably delivers up to 600W of clean, stable power with zero resistance bottlenecks or dangerous voltage sag. Layered with high-transmittance, hotspot-free silicone optical light guides and individually addressable 5V 3-pin ARGB LEDs, this extended 50cm Type-A standard-latch orientation cable ensures natural, strain-free curvature from top-facing GPU power connectors while harmonizing seamlessly with major motherboard lighting software.

INTERFACE
16-Pin (12+4)
POWER RATING
Up to 600W
LENGTH & ORIENTATION
50cm Type A
LIGHTING
5V 3-Pin ARGB

Specifications

Model Series AsiaHorse Hydrus ARGB 16-Pin (12+4 Pin) PCIe 5.0 GPU Extension Cable - Type A
Connector Standard 12V-2x6 / ATX 3.0 / PCIe 5.0 12VHPWR (12 Power Pins + 4 Sideband Signal Pins)
Plug Direction & Layout Type A (Standard Top-Latch Orientation for Traditional GPU Port Layouts)
Total Length 500mm ± 10mm (50cm / ~19.7 inches - Ideal for Showcase Dual-Chamber & E-ATX Chassis)
Maximum Continuous Wattage Supports up to 600W Continuous Output (High-Current Terminal Pin Design)
Internal Wire Gauge 16AWG Pure Copper Cores for 12V Power Lines + 28AWG Precision Sideband Sense Lines
Outer Sleeving & Color Ultra-Dense Braided PET Fiber Sleeving in Stealth Black
Light Guide Architecture High-Transmittance Dual-Layer Flexible Silicone Light Guide (Even, Spot-Free Diffusion)
LED Configuration & Operating Voltage Individually Addressable RGB LEDs (5V DC Input, Low-Draw Circuitry)
Motherboard ARGB Header Interface Standard 3-Pin (+5V-D-GND) Addressable RGB Connector with Pass-Through Daisy-Chain Port
Lighting Sync Ecosystems ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion 2.0, ASRock Polychrome Sync
GPU Compatibility GeForce RTX 4090, 4080 Super, 4080, 4070 Ti Super, RTX 50-Series & Next-Gen 16-Pin GPUs
Included Quality Assurance & Support High-Current Terminal Resistance Audit, LED Color Uniformity Check & Dedicated Support

Highlights

  • Purpose-engineered for PCIe 5.0 / ATX 3.0 graphics cards, delivering up to 600W of sustained power to easily handle flagship GPUs like the RTX 4090, RTX 4080 Super, and RTX 50-series.
  • Heavy-duty 16AWG high-conductivity pure copper wiring significantly lowers resistance and thermal buildup compared to thinner 18AWG cords, mitigating terminal overheating risks.
  • Type-A standard clip orientation is configured for graphics cards where the latch tab faces upward toward the backplate, ensuring the ARGB light strip faces outward for maximum visibility.
  • Extended 50cm (500mm) length provides the essential extra slack required in large showcase panoramic cases (such as Lian Li O11, NZXT H9, and Phanteks NV7) where standard 30cm extensions fall short.
  • Soft, dual-layer silicone optical diffuser evenly disperses light across the entire cable length, eliminating unsightly LED hot spots and producing smooth, liquid color transitions.
  • Standard 5V 3-pin ARGB header connects directly to your motherboard, synchronizing dynamic lighting effects through ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion, or ASRock Polychrome.
  • Integrated pass-through daisy-chain connector lets you effortlessly link 24-pin motherboard cables, ARGB fan hubs, or light strips to a single motherboard ARGB header.
  • High-density black braided PET sleeving provides superior abrasion resistance, durability, and a clean stealth look that complements dark battlestation aesthetics.
  • Pre-installed transparent routing combs keep each conductor channel aligned and parallel, maintaining structural rigidity and preventing side-to-side wire warping.
  • Precision-stamped alloy terminal pins ensure a firm, fully seated mechanical connection, minimizing micro-arcing and contact resistance at the GPU socket.
  • Universal extension design attaches directly to your existing native 12VHPWR / 12V-2x6 PSU cable, eliminating proprietary pinout conflicts.
  • Backed by dedicated after-sales customer support, ensuring guidance on connector seating, safe bend-radius clearance, and complete operational peace of mind.
Power your flagship graphics card with absolute confidence and radiant illumination using the AsiaHorse Hydrus ARGB 16-Pin (12+4) 50cm Type-A GPU Extension Cable, featuring 16AWG pure copper wiring, 600W rating, spot-free silicone diffusion, and seamless 5V 3-pin motherboard synchronization.
