BITFENIX

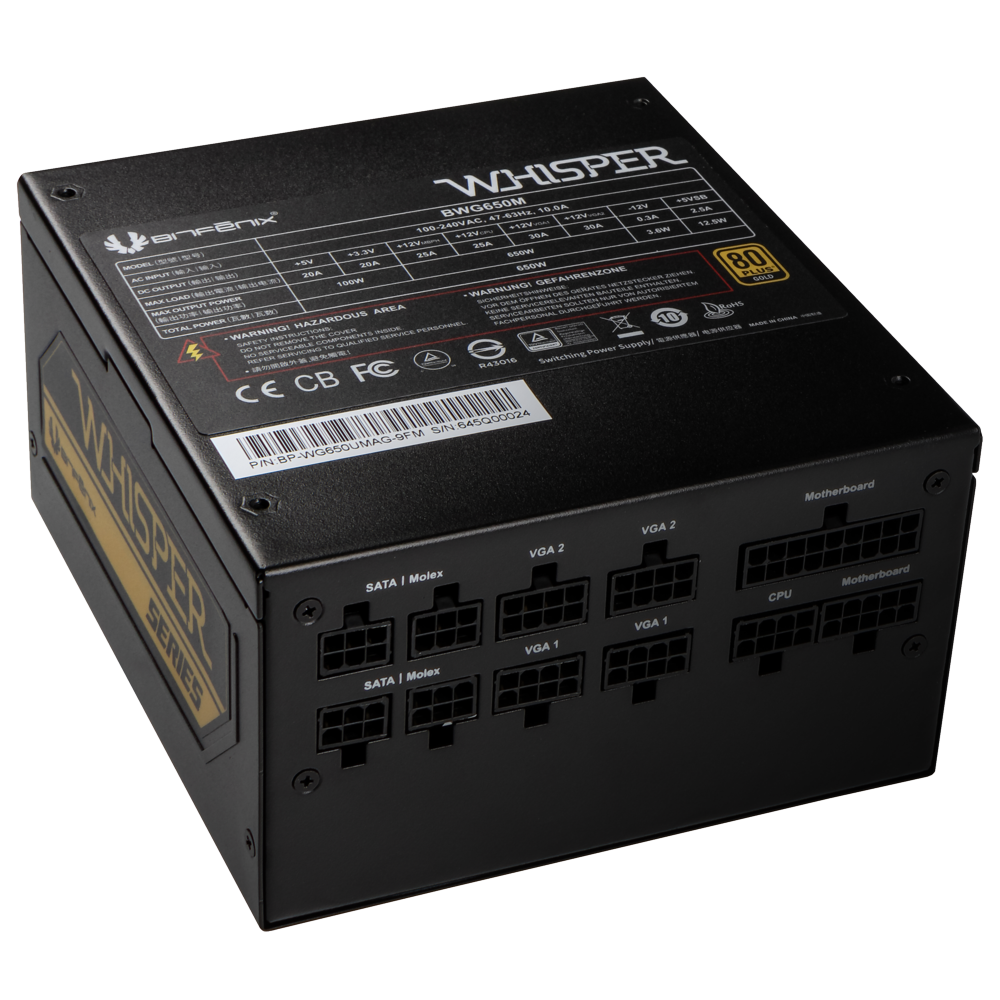

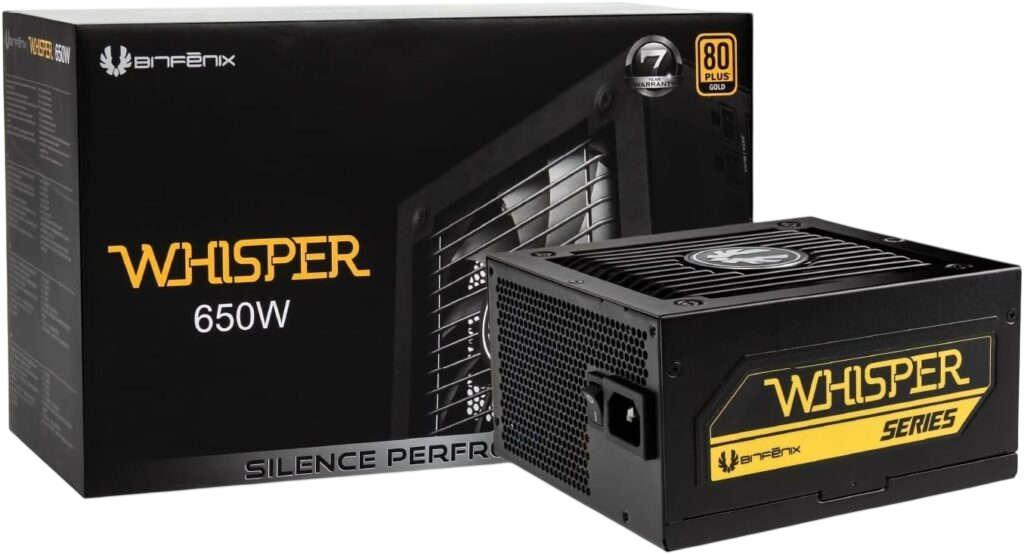

BITFENIX WHISPER 650W GOLD FULLY MODULAR

  • TYPE: Power Supply
  • SKU: 4712883216084
Brand New1 Year Warranty
$80.00

Notify me when BITFENIX WHISPER 650W GOLD FULLY MODULAR - Default Title becomes available.

The BitFenix Whisper M 650W is an elite-tier, 80 Plus Gold certified power supply unit (PSU) engineered to deliver uncompromised electrical stability and near-silent operation. Designed for mid-to-high end gaming rigs, compact workstations, and daily computing builds, this power supply combines advanced multi-rail topology with 100% industrial-grade Japanese components. Its fully modular framework and flat ribbon-style cabling maximize chassis airflow and clean cable management, making it an exceptional foundation for modern hardware configurations.

Form Factor / Type
Intel ATX 12V V2.4 / EPS 12V
Power Factor Correction
Active PFC (PF Value > 0.99)
+12V Rail Architecture
Dedicated Quad +12V Rails
MTBF / Reliability
> 100,000 Hours

Specifications

Model Name / SKU BitFenix Whisper M 650W / BWG650M (BP-WG650UMAG-7FM)
Form Factor / Type Intel ATX 12V V2.4 / EPS 12V
Maximum Wattage 650 Watts Continuous DC Output (at up to 50°C)
Efficiency Certification 80 PLUS Gold Certified (Up to 92% efficiency @ typical load)
Power Factor Correction Active PFC (PF Value > 0.99)
AC Input Range Full Range: 100V–240V AC / 10A / 47–63Hz
+12V Rail Architecture Dedicated Quad +12V Rails
Internal Topology LLC Resonant Topology with DC-to-DC Conversion
Capacitor Engineering 100% High-Performance Japanese Industrial 105°C Capacitors

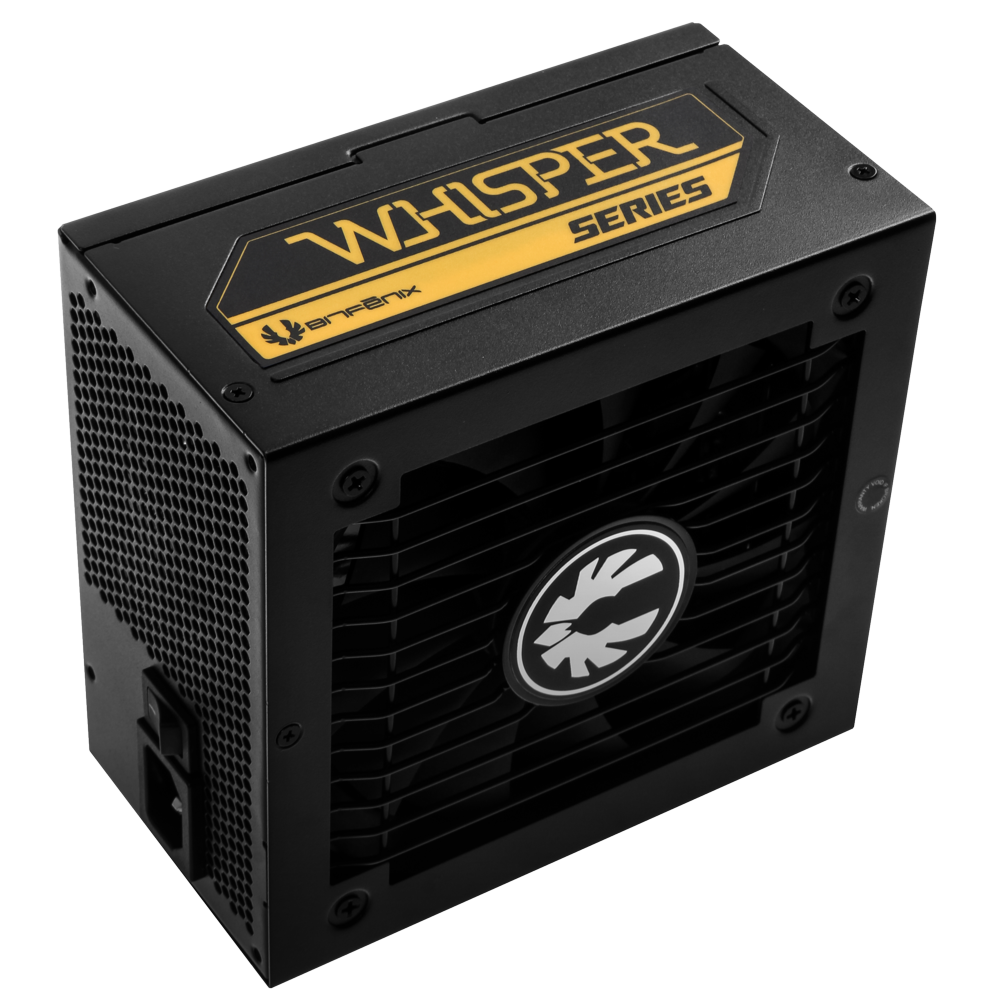

Cooling Fan Layout 135mm Premium Fluid Dynamic Bearing (FDB) Fan

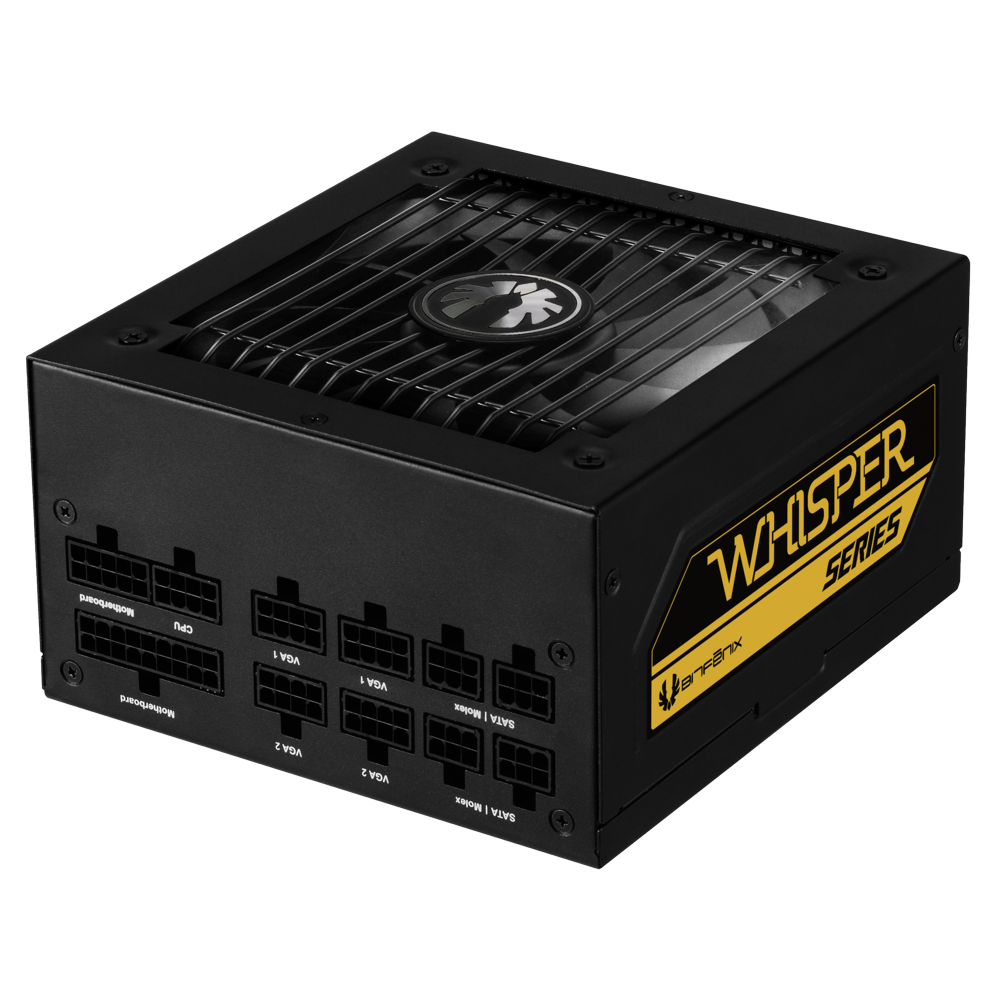

Cable Management 100% Fully Modular Ribbon Flat Cables
MTBF / Reliability > 100,000 Hours
Chassis Dimensions 160 mm (Depth) × 150 mm (Width) × 86 mm (Height)

Highlights

  • 80 PLUS Gold Efficiency Rating: Attains an outstanding 92% efficiency rating under typical system loads, minimizing utility grid power waste and internal thermal losses. It is fully optimized to meet strict modern energy-saving standards and low-power CPU sleep states.
  • Dedicated Quad-Rail +12V Design: Utilizes an intelligent quad-rail power layout partitioned for Motherboard/Peripherals, CPU, GPU1, and GPU2. This distribution features independent over-current protection thresholds to supply unthrottled energy safely without accidental shutdowns.
  • Advanced LLC Resonant & DC-to-DC Topology: Implements a premium LLC resonant circuit switching architecture alongside separate DC-to-DC minor rail conversion stages (+5V and +3.3V). This structure ensures tight DC voltage regulation and remarkably low ripple noise.
  • 100% Industrial Japanese 105°C Capacitors: Loaded entirely with premium Japanese solid polymer and electrolytic capacitors. Rated to function reliably under intense 105°C operating extremes, they drastically extend operational lifespans and ensure consistent power delivery.
  • Intelligent Fan Curve Dynamics: Operates on an advanced, noise-optimized silent fan matrix. The cooling fan initiates rotation at an ultra-low threshold and maintains dead-silent audio performance under 18 dBA up to 60% system loads.
  • Premium Fluid Dynamic Bearing Fan: Houses a specialized silence-optimized Fluid Dynamic Bearing (FDB) cooling fan. The fluid dynamic architecture prevents physical metal-on-metal friction, significantly multiplying the fan's lifespan compared to standard sleeve-bearing alternatives.
  • Flat Ribbon-Style Modular Cabling: Features flexible, 18AWG thick all-black flat modular ribbon cables that detach completely. This allows you to plugin only the necessary power lines to maximize internal chassis airflow and maintain a professional, clutter-free aesthetic.
  • Industrial-Grade Safety Suite: Outfitted with robust, full-spectrum hardware guardrails: Over Current (OCP), Over Voltage (OVP), Under Voltage (UVP), Over Power (OPP), Short Circuit (SCP), Over Temperature (OTP), No Load Operation (NLO), and Surge & Inrush Protection (SIP).
Anchor your gaming configuration with the pristine power delivery of the BitFenix Whisper M 650W Gold Fully Modular Power Supply. Unifying an efficient 80 PLUS Gold circuit framework, a rock-solid dedicated quad +12V rail layout, high-end 105°C Japanese industrial capacitors, and an ultra-quiet fluid dynamic bearing fan profile, this continuous-power PSU delivers the ultimate combination of stable voltage output, clean modular cable management, and whisper-silent thermal control.
