COOLER MASTER

COOLER MASTER T20

  • TYPE: Cooling
  • SKU: 6928968304180
Brand New
$15.00

Notify me when COOLER MASTER T20 - Default Title becomes available.

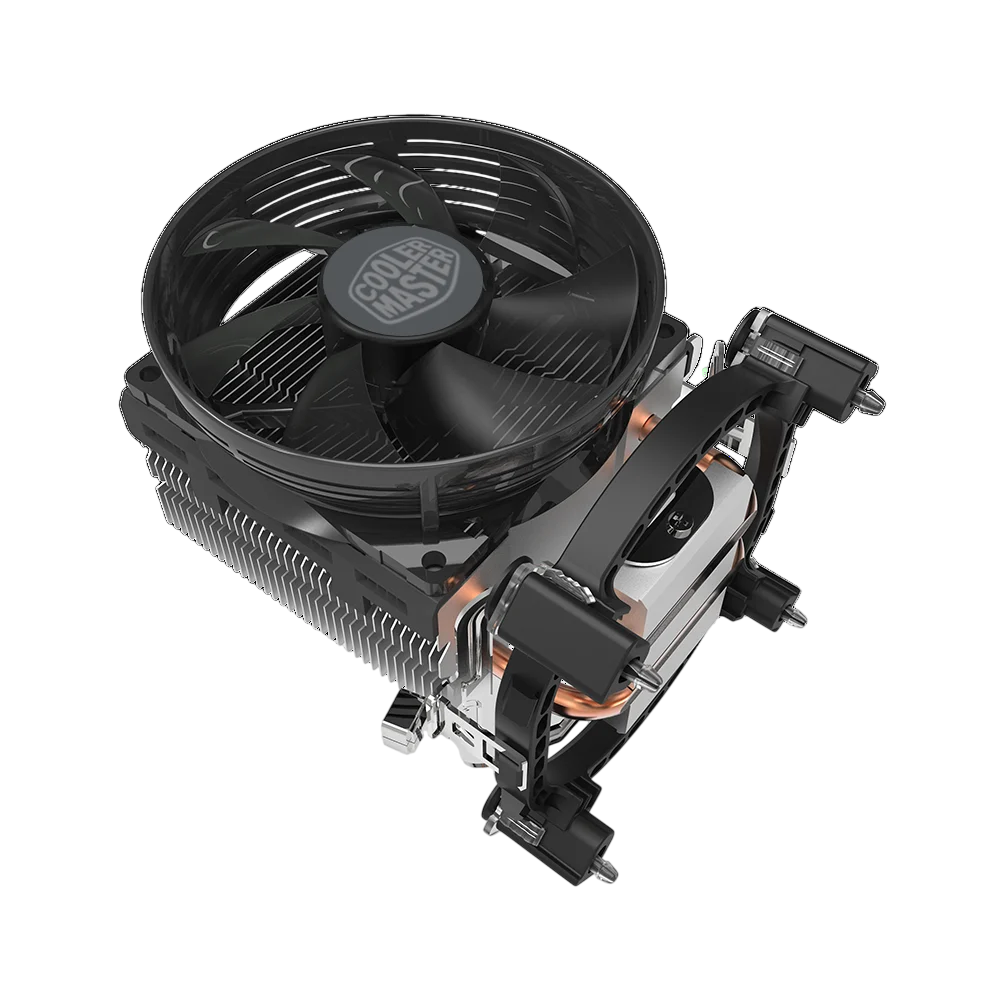

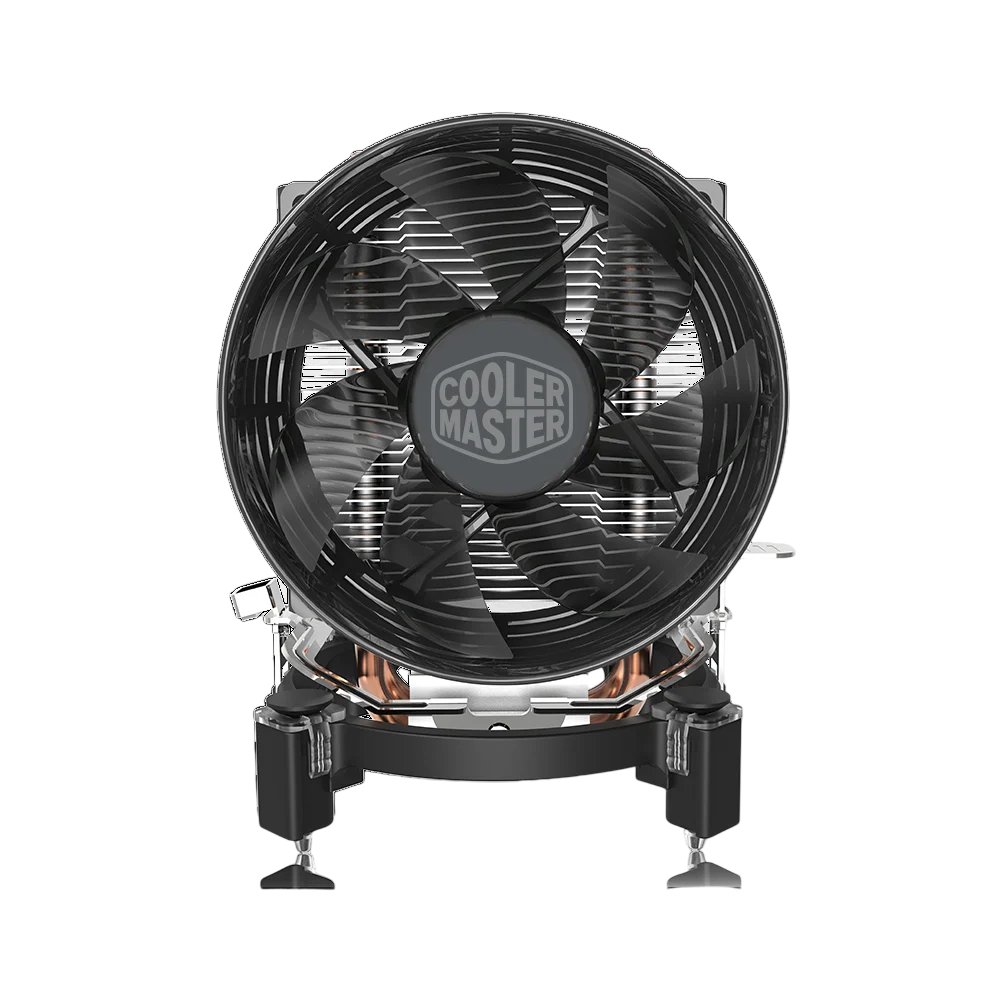

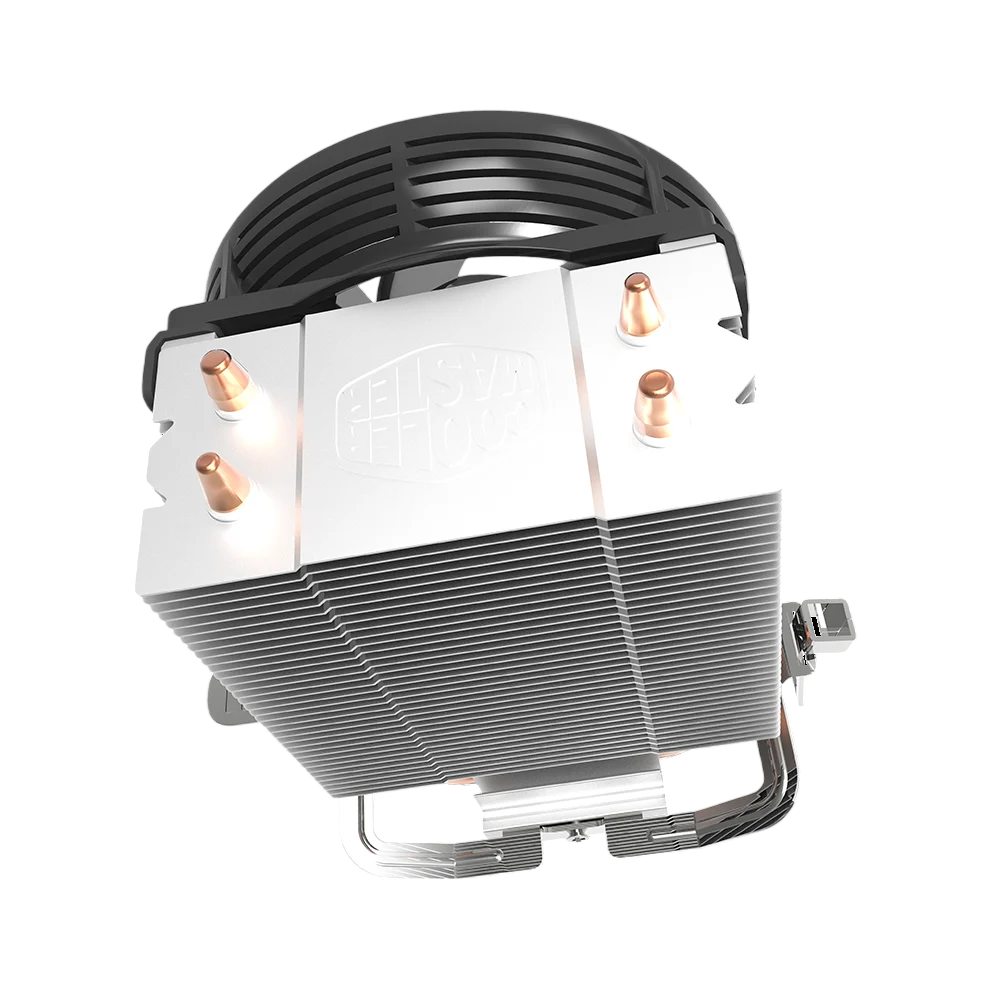

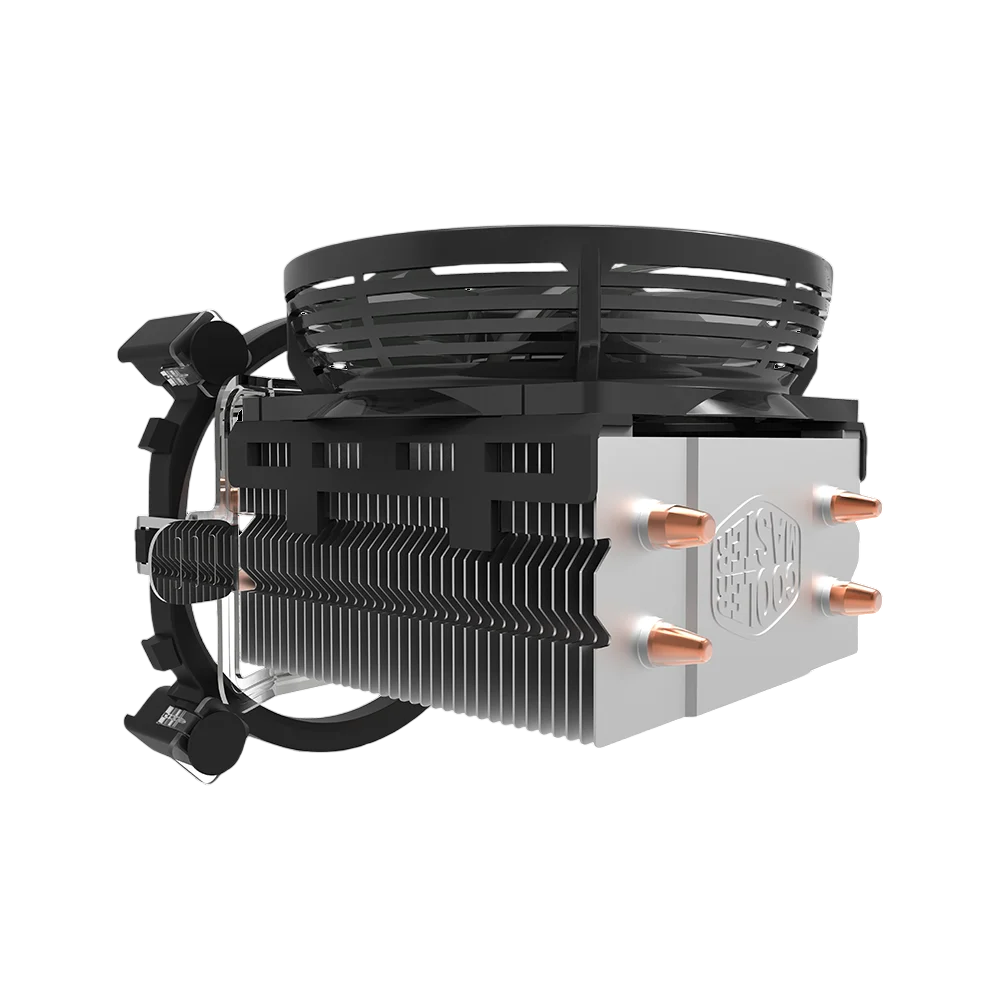

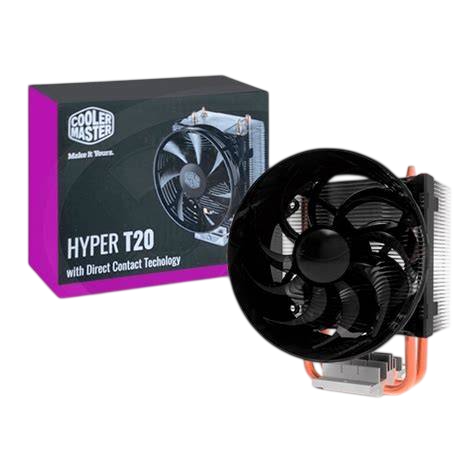

The Cooler Master Hyper T20 is a highly efficient, compact CPU air cooler engineered to deliver reliable thermal suppression with exceptionally low noise output. Optimized for budget-conscious builders, everyday workstations, and space-constrained systems, the Hyper T20 serves as a superior alternative to standard stock coolers. Featuring an intelligent direct-contact heat pipe layout, a densely stacked aluminum fin array, and a quick-disassemble fan framework, this stealthy cooler maximizes heat dissipation while maintaining a mini-tower footprint designed to easily clear adjacent components.

Fan Power Interface
3-Pin Connector
Fan Speed Capability
2000 RPM ± 10%
Fan Dimensions (L x W x H)
95.5 mm × 95.5 mm × 25 mm
Heatsink Weight
218g

Specifications

Model Number / SKU Hyper T20 / RR-T20-20FK-R1
Cooler Type Compact Tower Air Cooler
Colorway Stealth Black & Silver
Overall Dimensions (L x W x H) 95 mm × 80 mm × 117 mm
Heatsink Material 2 Copper Heat Pipes / Direct Contact / Aluminum Fins
Heatsink Weight 218g
Heat Pipe Diameter \varnothing 6 mm
Cooling Fan Count 1x 95.5mm High-Airflow Fan Included
Fan Dimensions (L x W x H) 95.5 mm × 95.5 mm × 25 mm
Fan Speed Capability 2000 RPM ± 10%
Maximum Fan Airflow 31.7 CFM ± 10%
Maximum Fan Air Pressure 1.09 mmH2O
Maximum Fan Noise Level 30 dBA
Fan Bearing Matrix Premium Low-Friction Rifle Bearing
Fan Power Interface 3-Pin Connector
Fan Rated Voltage / Current 12V DC / 0.16A
Fan Mean Time To Failure (MTTF) 40,000 Hours
Intel Socket Compatibility LGA 1200 / 1156 / 1155 / 1151 / 1150 / 775
AMD Socket Compatibility AM5 / AM4 / AM3+ / AM3 / AM2 / FM2+ / FM2 / FM1

Highlights

  • Continuous Direct-Contact Technology: Built with two \varnothing 6mm copper heat pipes meticulously flattened and integrated directly into the cooler's base. This eliminates barriers to thermal conductivity, ensuring immediate heat transfer from the CPU surface up through the tower.
  • Ultra-Compact 117mm Tower Footprint: Engineered with a low-profile 117mm total height architecture. This compact height offers unmatched case clearance, allowing it to fit into mini-ITX enclosures, mid-tower setups, or slim home-theater PC chassis with ease.
  • High-Density Aluminum Fin Architecture: Outfitted with an optimized, large aluminum fin tower structure designed to maximize cooling efficiency. The spacing between each fin is precisely calculated to provide minimal resistance against passing airflow.
  • Quick-Disassemble Fan Stand Framework: Features a smart, modular clip-on fan bracket stand engineered for toolless hardware removal. This quick-release housing allows users to snap the 95.5mm fan off the heatsink instantly, making routine dusting and maintenance quick and simple.
  • Whisper-Quiet Rifle Bearing Performance: Equipped with a 95.5mm high-performance cooling fan powered by a low-friction rifle bearing mechanism. Operating at a fixed, reliable 2000 RPM, it pushes an efficient 31.7 CFM of fresh air while capping total noise generation to a faint 30 dBA.
  • Anti-Dust Fan Blade Shroud Material: The structural fan frame composition is molded from a specialized anti-dust polymer compound. This design prevents ambient dust from accumulating along the rotation tracks, ensuring long-term rotation reliability.
  • Simplified Buckle Installation Array: Implements an incredibly straightforward buckle installation assembly compatible with a wide cross-generation range of Intel and AMD motherboard sockets. This user-friendly mounting setup allows for rapid installation and removal directly inside the case.
Upgrade your budget configuration or system workstation with the thermal efficiency of the Cooler Master Hyper T20 CPU Air Cooler. Combining direct-contact copper heat pipes, an ultra-compact 117mm cooling tower, and an easy-to-clean quick-disassemble fan shroud, this air cooler provides reliable system temperature protection and whisper-quiet operation without demanding premium desk space or premium component pricing.
