DEEPCOOL CG530U 4F - BLACK

  • TYPE: Case
Brand New
$110.00
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK
DEEPCOOL CG530U 4F - BLACK

Notify me when DEEPCOOL CG530U 4F - BLACK - Default Title becomes available.

The DeepCool CG530U 4F Black redefines the "aquarium" style chassis by replacing traditional multi-panel joints with a single, precision-engineered piece of continuous curved tempered glass. This elegant, wrap-around design offers an uninterrupted 270-degree panorama of your system’s interior, completely eliminating the bulky front corner pillar. Utilizing a premium dual-chamber layout that isolates the power supply and storage devices behind the motherboard tray, the CG530U 4F ships fully loaded with four vibrant PWM ARGB fans—including three side intake reverse-blade units—delivering stealthy dark aesthetics, uncompromised airflow, and a breathtaking hardware showcase.

Case Form Factor
Midi Tower
Top Fan Support
3 × 120mm or 2 × 140mm
Net Weight
7.3 kg
Chassis Color
Deep Anodized Black

Specifications

Case Form Factor Midi Tower
Chassis Color Deep Anodized Black
Material Build SPCC Steel, High-Impact ABS Plastic, Curved Tempered Glass
Chassis Dimensions 475 mm × 285 mm × 380 mm (L × W × H)
Net Weight 7.3 kg
Motherboard Form Factor Mini-ITX / Micro-ATX / ATX (Supports Rear-Connector motherboards)
Expansion Card Slots 7 Standard Horizontal Slots
Storage Drive Bays 2 × 3.5" HDD Bays & 3 × 2.5" SSD Bays (Configured as 2+1)
Pre-Installed Fan Setup Side: 3 × 120mm PWM ARGB (Reverse-Blade Flow Intakes) Rear: 1 × 120mm PWM ARGB (Standard Exhaust)
Total Fan Mounting Capacity Up to 10 × 120mm or 4 × 140mm + 4 × 120mm Fans
Top Fan Support 3 × 120mm or 2 × 140mm
Side Fan Support 3 × 120mm or 2 × 140mm
Rear Fan Support 1 × 120mm
Bottom Fan Support 3 × 120mm (Can blend with 1x 3.5" HDD or 1x 2.5" SSD layouts)
Liquid Cooling Support Top: 120 / 140 / 240 / 280 / 360mm Radiators Side: 120 / 140 / 240 / 280mm Radiators Bottom: 120 / 240 / 360mm Radiators
CPU Cooler Clearance Up to 160 mm Maximum Height
Graphics Card Clearance Up to 410 mm Max Length
Power Supply Clearance ATX Form Factor up to 210 mm Max Length
Front I/O Interface 2 × USB 3.0 Type-A, 1 × USB 3.2 Gen2 Type-C, 1 × Hybrid Audio Jack, LED Control Button
Dust Filtration Layout Removable Magnetic Filters Fitted at Top and Bottom

Highlights

  • Seamless Curved Glass Aesthetics: The defining trait of the CG530U 4F is its premium one-piece curved tempered glass front-to-side wrap. Without a structural corner pillar to split the view, your components are showcased behind a crystal-clear, smooth architectural bend.
  • Efficient Dual-Chamber Design: By moving the power supply unit, hard drives, and excess cable bundles into a dedicated secondary chamber behind the motherboard tray, the main cabin remains entirely clutter-free. This directly enhances thermal passage and highlights your core performance hardware.
  • Hidden-Wiring Back-Connect Ready: Built with the latest structural layouts in mind, this case features precise tray cutouts designed to accommodate rear-connector motherboards (such as ASUS BTF and MSI Project Zero series), entirely hiding power and data leads from the front window.
  • Pre-Installed Reverse Intake Fans: Features four factory-installed 120mm PWM ARGB fans. The three side-mounted fans utilize specialized reverse blades to draw fresh air into the chassis while keeping their clean structural faces toward the glass, balanced out by a standard 120mm rear exhaust fan.
  • Extreme 410mm GPU Capacity: Built to house the largest elite hardware on the market without structural limits. The main chamber easily accommodates flagship graphics cards up to 410 mm long, leaving plenty of breathing room for premium custom support brackets.
  • Triple 360mm Radiator Versatility: Liquid cooling enthusiasts have exceptional configuration flexibility. Radiators up to 360mm can be mounted simultaneously on both the top panel and the bottom floor, with additional space for up to a 280mm radiator on the side mount.
  • Massive 45mm Cable Management Vault: The wide dual-chamber profile yields a substantial 45mm routing backplane space behind the motherboard. This massive depth simplifies organizing thick, sleeved power cable extensions and multi-fan ARGB hubs without hassle.

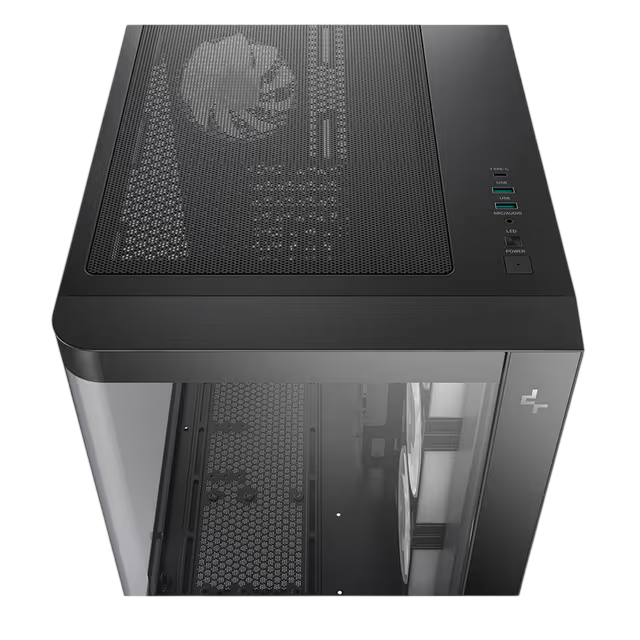

  • High-Speed Top-Mounted I/O Hub: Positioned for perfect accessibility, the top-edge panel offers a blazing-fast USB 3.2 Gen 2 Type-C port, two standard USB 3.0 Type-A connections, a combo audio/mic jack, and an integrated LED controller switch to change lighting modes on the fly.
The DeepCool CG530U 4F Black Panoramic Case offers a stunning, seamless canvas for your next high-performance custom build. Merging its advanced dual-chamber thermal design with the premium aesthetics of a continuous curved glass panel and full rear-connector motherboard support, this mid-tower delivers an unmatched blend of show-ready elegance and enthusiast-grade hardware compatibility.
