DEEPCOOL CG530U 4F - WHITE

  • TYPE: Case
Brand New
$115.00

Notify me when DEEPCOOL CG530U 4F - WHITE - Default Title becomes available.

The DeepCool CG530U 4F White redefines the "aquarium" style chassis by replacing traditional multi-panel joints with a single, precision-engineered piece of continuous curved tempered glass. This elegant, wrap-around design offers an uninterrupted 270-degree panorama of your system’s interior, completely eliminating the bulky front corner pillar. Utilizing a premium dual-chamber layout that isolates the power supply and storage devices behind the motherboard tray, the CG530U 4F ships fully loaded with four vibrant PWM ARGB fans—including three side intake reverse-blade units—delivering pristine all-white aesthetics, uncompromised airflow, and a breathtaking hardware showcase.

Case Form Factor
Midi Tower
Top Fan Support
3 × 120mm or 2 × 140mm
Net Weight
7.3 kg
Chassis Color
Pristine White

Specifications

Case Form Factor Midi Tower
Chassis Color Pristine White
Material Build SPCC Steel, High-Impact ABS Plastic, Curved Tempered Glass
Chassis Dimensions 475 mm × 285 mm × 380 mm (L × W × H)
Net Weight 7.3 kg
Motherboard Form Factor Mini-ITX / Micro-ATX / ATX (Supports Rear-Connector motherboards)
Expansion Card Slots 7 Standard Horizontal Slots
Storage Drive Bays 2 × 3.5" HDD Bays & 3 × 2.5" SSD Bays (Configured as 2+1)
Pre-Installed Fan Setup Side: 3 × 120mm PWM ARGB (Reverse-Blade Flow Intakes) Rear: 1 × 120mm PWM ARGB (Standard Exhaust)
Total Fan Mounting Capacity Up to 10 × 120mm or 4 × 140mm + 4 × 120mm Fans
Top Fan Support 3 × 120mm or 2 × 140mm
Side Fan Support 3 × 120mm or 2 × 140mm
Rear Fan Support 1 × 120mm
Bottom Fan Support 3 × 120mm (Can blend with 1x 3.5" HDD or 1x 2.5" SSD layouts)
Liquid Cooling Support Top: 120 / 140 / 240 / 280 / 360mm Radiators Side: 120 / 140 / 240 / 280mm Radiators Bottom: 120 / 240 / 360mm Radiators
CPU Cooler Clearance Up to 160 mm Maximum Height
Graphics Card Clearance Up to 410 mm Max Length
Power Supply Clearance ATX Form Factor up to 210 mm Max Length
Front I/O Interface 2 × USB 3.0 Type-A, 1 × USB 3.2 Gen2 Type-C, 1 × Hybrid Audio Jack, LED Control Button
Dust Filtration Layout Removable Magnetic Filters Fitted at Top and Bottom

Highlights

  • Seamless Curved Glass Aesthetics: The defining trait of the CG530U 4F is its premium one-piece curved tempered glass front-to-side wrap. Without a structural corner pillar to split the view, your components are showcased behind a crystal-clear, smooth architectural bend.
  • Efficient Dual-Chamber Design: By moving the power supply unit, hard drives, and excess cable bundles into a dedicated secondary chamber behind the motherboard tray, the main cabin remains entirely clutter-free. This directly enhances thermal passage and highlights your core performance hardware.
  • Hidden-Wiring Back-Connect Ready: Built with the latest structural layouts in mind, this case features precise tray cutouts designed to accommodate rear-connector motherboards (such as ASUS BTF and MSI Project Zero series), entirely hiding power and data leads from the front window.

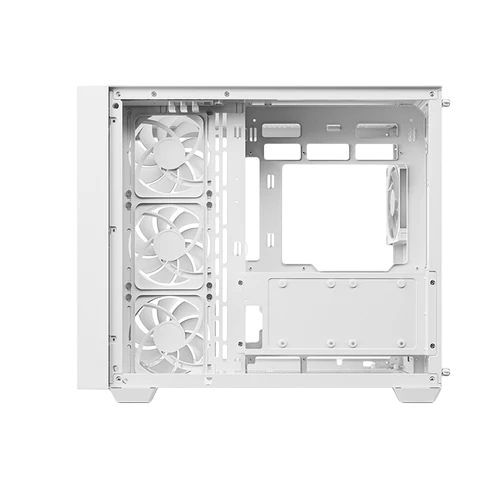

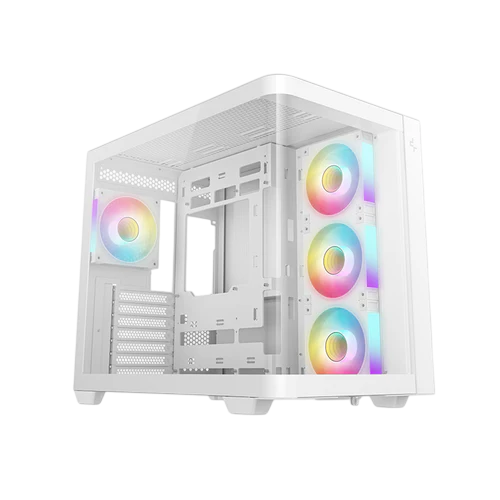

  • Pre-Installed Reverse Intake Fans: Features four factory-installed 120mm PWM ARGB fans. The three side-mounted fans utilize specialized reverse blades to draw fresh air into the chassis while keeping their clean structural faces toward the glass, balanced out by a standard 120mm rear exhaust fan.
  • Extreme 410mm GPU Capacity: Built to house the largest elite hardware on the market without structural limits. The main chamber easily accommodates flagship graphics cards up to 410 mm long, leaving plenty of breathing room for premium custom support brackets.
  • Triple 360mm Radiator Versatility: Liquid cooling enthusiasts have exceptional configuration flexibility. Radiators up to 360mm can be mounted simultaneously on both the top panel and the bottom floor, with additional space for up to a 280mm radiator on the side mount.
  • Massive 45mm Cable Management Vault: The wide dual-chamber profile yields a substantial 45mm routing backplane space behind the motherboard. This massive depth simplifies organizing thick, sleeved white cable extensions and multi-fan ARGB hubs without hassle.

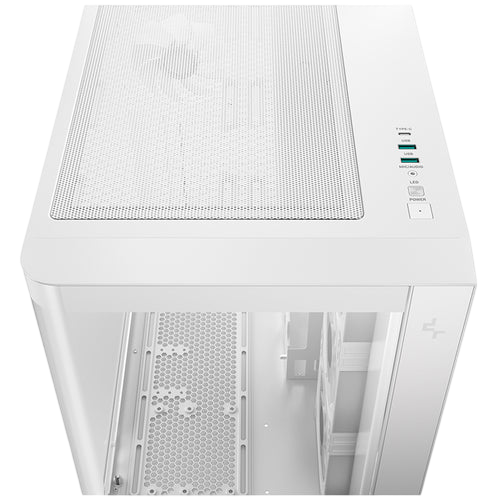

  • High-Speed Top-Mounted I/O Hub: Positioned for perfect accessibility, the top-edge panel offers a blazing-fast USB 3.2 Gen 2 Type-C port, two standard USB 3.0 Type-A connections, a combo audio/mic jack, and an integrated LED controller switch to change lighting modes on the fly.
The DeepCool CG530U 4F White Panoramic Case offers a stunning, seamless canvas for your next all-white custom build. Merging its advanced dual-chamber thermal design with the premium aesthetics of a continuous curved glass panel and full rear-connector motherboard support, this mid-tower delivers an unmatched blend of show-ready elegance and enthusiast-grade hardware compatibility.

General Warranty Terms & Conditions

1. General Warranty Coverage

All products—including Brand New, Open Box, and Used items—are subject to the same warranty conditions, inspection standards, and exclusions outlined in this policy.

Open Box and Used items receive the same manufacturing-defect coverage as Brand New items. However, they may have a shorter designated warranty period, as specified on the product page or purchase invoice.

Power Protection Requirement

Due to extreme grid-voltage fluctuations ranging from 180V to 250V, all systems, individual components, and electronic devices must be powered exclusively through a verified, high-quality Uninterruptible Power Supply (UPS).

Failures or damage caused by the following are strictly excluded:

  • Power spikes or electrical surges
  • Brownouts or unstable voltage
  • Physical or accidental damage
  • Liquid exposure
  • Improper handling or misuse

These exclusions apply to products in all conditions, including Brand New, Open Box, and Used items.

Strict No-Tampering Policy

Opening or disassembling any device—including user-accessible hardware such as custom PCs, pre-built PCs, laptops, graphics cards, and power supplies—will immediately void the warranty.

Breaking or removing any store or factory warranty seal will also void all coverage.

The following work must be performed exclusively by our technical service center:

  • Internal dust cleaning
  • Thermal paste replacement
  • Hardware upgrades or replacements
  • Routine internal maintenance
  • Diagnostics and repairs

2. Pre-Built Gaming PCs, Custom Builds and Laptops

Pre-Built and Custom-Built Desktop PCs

Every individual hardware component installed inside the system is covered under its respective manufacturer’s warranty.

The system must remain connected to a verified, high-quality UPS at all times.

The overall system and component warranties will be voided if the customer:

  • Opens the case
  • Removes or replaces components
  • Performs self-upgrades
  • Reapplies thermal paste
  • Repairs or services the PC outside our technical service center

Laptops

Laptop warranty coverage includes manufacturing defects affecting:

  • Motherboard
  • CPU
  • GPU
  • Display panel
  • Keyboard
  • Trackpad
  • Internal power-delivery components

Laptops must be charged using their original power adapters connected to a stable, surge-protected power source.

Laptop Batteries and Power Adapters

Laptop batteries and original charging adapters are covered against complete hardware failure for their specified warranty period.

Laptop Warranty Void Triggers

  • Opening or disassembling the chassis
  • Third-party RAM or SSD installation
  • Unauthorized thermal paste replacement
  • Drops or impact damage
  • Cracked displays
  • Liquid spills or exposure
  • Use of unverified third-party chargers or adapters

3. Core Components and Hardware

Processors (CPUs)

Covered against manufacturing defects.

Warranty coverage is void if the processor:

  • Has bent or broken pins
  • Has a bent, cracked, or physically damaged PCB
  • Has been overclocked or underclocked
  • Is damaged due to an outdated or incompatible motherboard BIOS

Motherboards

Covered against manufacturing defects.

Warranty coverage excludes:

  • Physical damage
  • Bent CPU-socket pins
  • Ethernet or LAN damage caused by static discharge
  • Power-surge damage
  • Scratched traces caused by improper mounting or installation

Graphics Cards (GPUs)

Covered against manufacturing defects.

The graphics card must be used with:

  • A reliable, tier-rated power supply rated Tier B- or higher
  • Original, native PSU power cables
  • A suitable anti-sag GPU support bracket

Warranty coverage is void if the graphics card has been:

  • Opened or disassembled
  • Re-pasted
  • Overclocked
  • Undervolted
  • Physically modified

RAM (Memory)

Covered against manufacturing defects.

Warranty coverage excludes:

  • Physical damage
  • Failures caused by manual overvolting
  • Overclocking beyond standard XMP or EXPO profiles

Storage Devices (SSDs and HDDs)

Covered against manufacturing defects affecting the controller or NAND storage.

Warranty coverage is void if:

  • The drive exceeds the manufacturer’s specified Total Bytes Written (TBW) limit
  • The ports, connectors, PCB, or casing show physical damage

Power Supply Units (PSUs)

Covered against internal component failure under standard operating conditions.

The following are not covered:

  • Burnt input stages
  • Grid-level electrical surges
  • Damage caused by connecting the PSU directly to an unprotected power line
  • Damage resulting from unstable voltage or unsuitable power protection

4. Displays, Cooling and Peripherals

Monitors: Standard and OLED

Standard LCD/IPS and OLED monitors require four or more dead or stuck pixels to qualify for warranty repair or replacement.

OLED panels include coverage for burn-in and image retention under normal usage conditions, provided that all built-in panel-care and protection features remain enabled.

The following are strictly excluded:

  • Cracked panels
  • Pressure marks
  • Scratches
  • Impact damage
  • Other forms of physical damage

Air Coolers

Air coolers are covered exclusively under Dead on Arrival (DOA) terms. Any issue must be reported within 48 hours of delivery.

Liquid Coolers (AIOs)

Liquid coolers are covered for:

  • DOA pump failure
  • DOA fan failure
  • Manufacturing-related leaks

Coverage applies only when the unit has been installed according to the manufacturer’s official guidelines and has not been modified or mounted with excessive hose tension.

Peripherals

Keyboards, mice, and headsets are covered against internal hardware and connectivity defects arising under normal operating conditions.

Coverage excludes:

  • Cosmetic damage
  • Frayed or damaged cables
  • Switch damage caused by excessive force
  • Liquid spills or exposure
  • Damage caused by misuse

Uninterruptible Power Supplies (UPS)

UPS units are covered against manufacturing defects affecting:

  • Internal circuit boards
  • Inverters
  • Batteries

Coverage applies for the specified warranty period.


5. DOA-Only Products

The following products are covered exclusively under Dead on Arrival (DOA) terms and must be inspected and reported within 48 hours of delivery:

  • PC cases
  • Monitor arms
  • Webcams
  • Microphones
  • Speakers
  • Routers
  • Internal and external cables
  • Desk accessories
  • Chairs
  • Desks
  • RGB extensions and cables
  • Mini LCD screens

Issues reported after the 48-hour period will not qualify for warranty service unless otherwise stated on the product page or invoice.


6. Products Without Warranty

Mouse Pads

Mouse pads are classified as consumable products and are sold with no warranty coverage.
