DEEPCOOL

DEEPCOOL CG580 4F V2 - BLACK

  • TYPE: Case
Brand New
$100.00

Notify me when DEEPCOOL CG580 4F V2 - BLACK - Default Title becomes available.

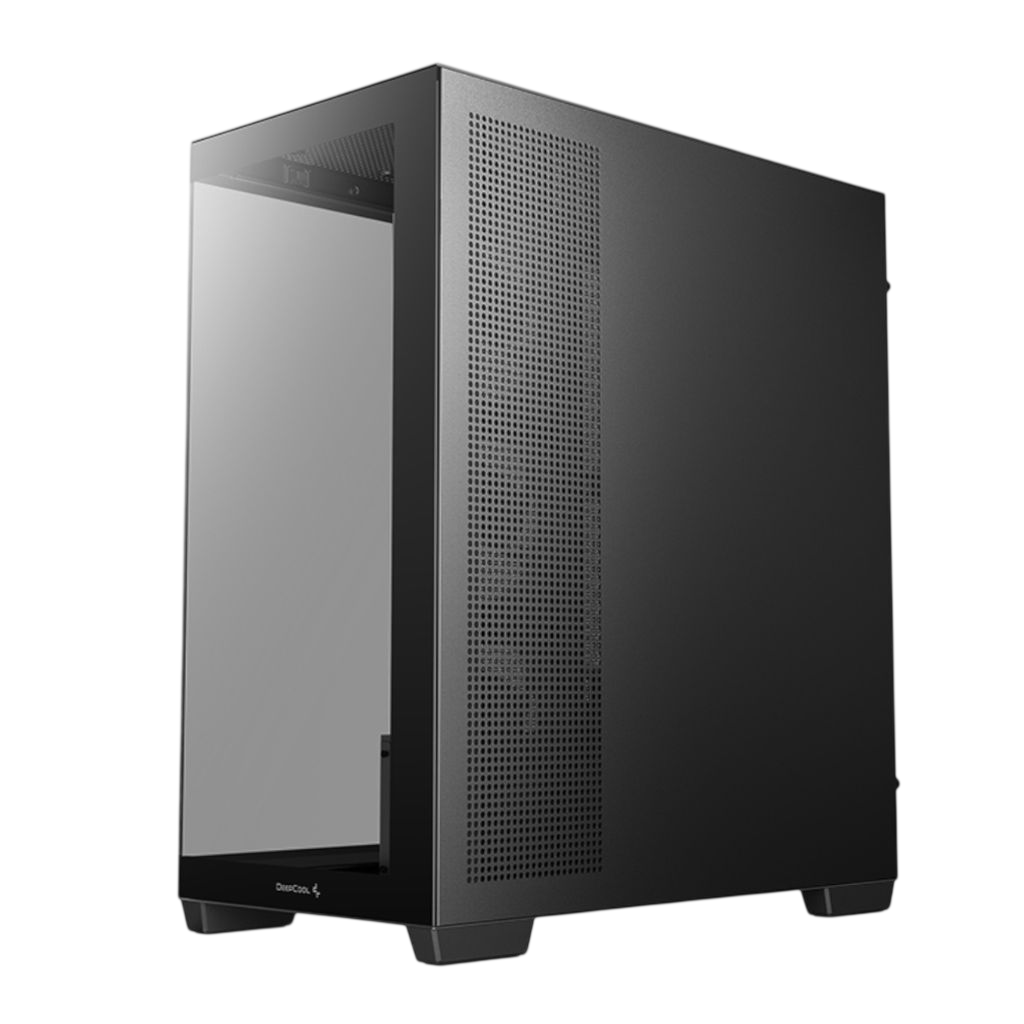

The DeepCool CG580 4F V2 is a premium single-chamber panoramic midi-tower chassis engineered to give your high-performance hardware the ultimate showcase treatment. Featuring an elegant pillar-less front and side tempered glass layout, this case delivers an unobstructed 270-degree view of your interior components without structural interruptions. Outfitted out of the box with four high-performance PWM ARGB fans—including three specialized reverse-blade intakes on the side—and boasting comprehensive support for massive liquid cooling setups, the CG580 4F V2 strikes the perfect balance between high-end thermal performance and jaw-dropping visual presentation.

Case Form Factor
Mid Tower
Top Fan Support
3 × 120mm or 2 × 140mm
Net Weight
8.8 kg
Chassis Color
Black

Specifications

Case Form Factor Mid Tower
Chassis Color Black
Material Build SPCC Steel, High-Impact ABS Plastic, Tempered Glass
Chassis Dimensions 437 mm × 235 mm × 501 mm (L × W × H)
Net Weight 8.8 kg
Motherboard Form Factor Mini-ITX / Micro-ATX / ATX (Supports Rear-Connector motherboards)
Expansion Card Slots 7 Standard Horizontal Slots
Storage Drive Bays 2 × 3.5" HDD Bays & 2 × 2.5" SSD Bays
Pre-Installed Fan Setup Side: 3 × 120mm PWM ARGB (Reverse Flow Intakes) Rear: 1 × 120mm PWM ARGB (Standard Exhaust)
Total Fan Mounting Capacity Up to 10 × 120mm or 3 × 120mm + 3 × 140mm Fans
Top Fan Support 3 × 120mm or 2 × 140mm
Side Fan Support 3 × 120mm
Rear Fan Support 1 × 120mm or 1 × 140mm
Bottom / Shroud Support PSU Shroud: 2 × 120mm Chassis Bottom: 1 × 120mm (Shares space with 1 × 3.5" HDD)
Liquid Cooling Support Top: 120 / 140 / 240 / 280 / 360mm Radiators Side: 120 / 240 / 360mm Radiators Rear: 120 / 140mm Radiators
CPU Cooler Clearance Up to 176 mm Maximum Height
Graphics Card Clearance Up to 410 mm Max Length (Limits to 262 mm if side 360mm AIO is installed)
Power Supply Clearance ATX PS2 Form Factor up to 210 mm Max Length
Front I/O Interface 2 × USB 3.0 Type-A, 1 × USB 3.2 Gen2 Type-C, 1 × Hybrid Audio Jack, LED Control Button
Dust Filtration Layout Magnetic Filters Fitted at Top, Bottom, and Right Side Panel

Highlights

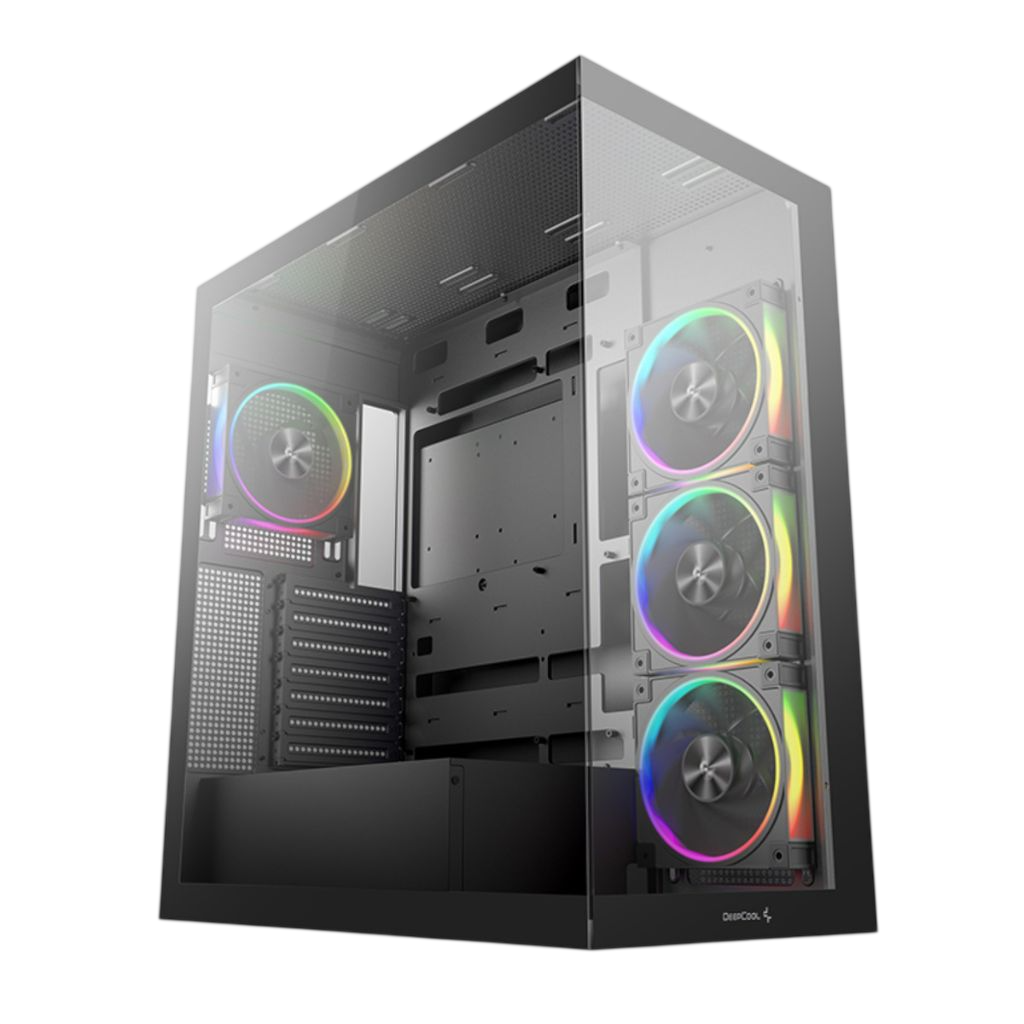

  • Unobstructed 270° Panoramic Showcase: Designed without a front corner A-pillar block, the dual tempered glass front and side panels meet seamlessly. This structural optimization ensures a completely open panoramic viewpoint to exhibit your custom lighting, clean cabling, and core components.
  • Rear-Connector Motherboard Ready: Fully compatible with cutting-edge hidden-wiring motherboards (such as ASUS BTF and MSI Project Zero series). The internal tray offers dedicated routing cutouts to accommodate rear-mounted power and data input sockets for an ultra-clean internal look.

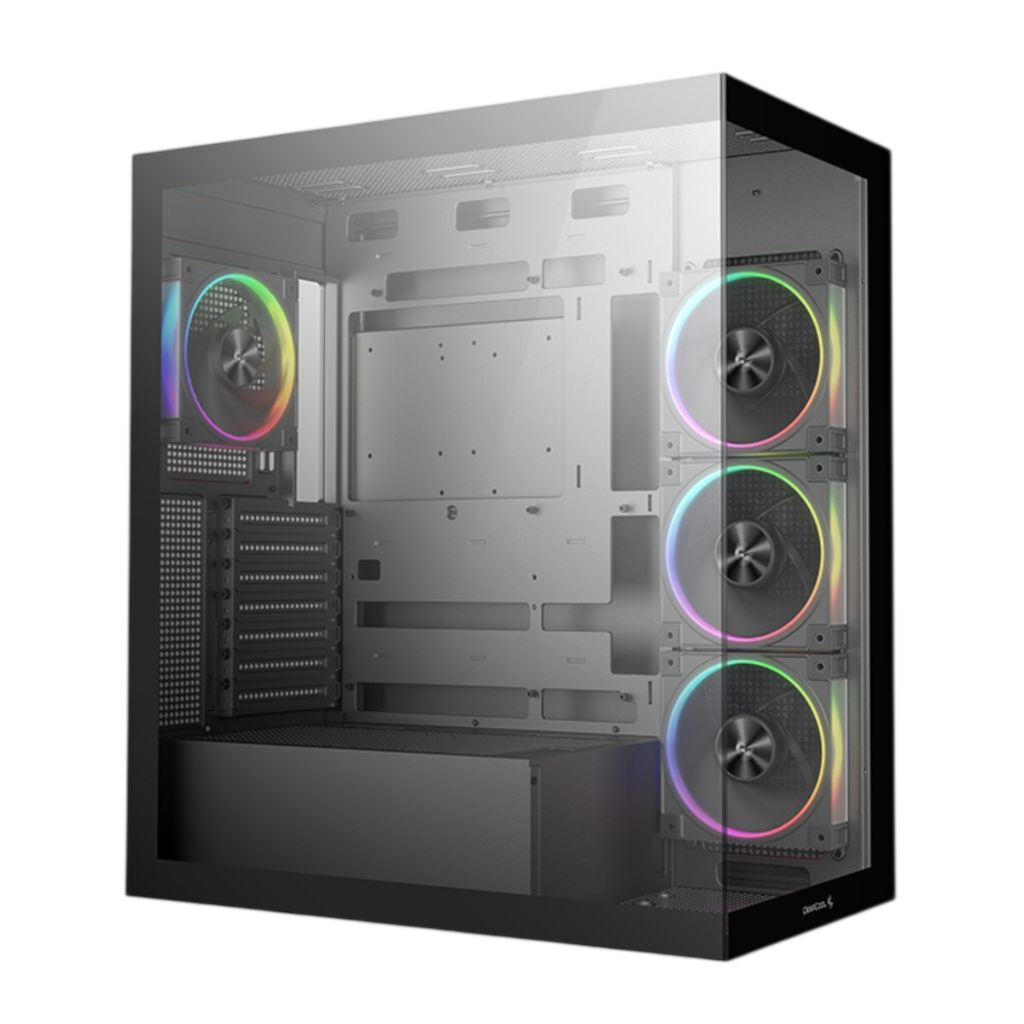

  • Smart Factory Airflow with Reverse Fans: Comes equipped with four pre-installed PWM ARGB cooling fans. The three side-mounted 120mm fans utilize reverse blades to push fresh intake air straight toward your GPU while keeping their clean structural frames facing forward, while a standard 120mm rear fan exhausts hot exhaust out the back.
  • Flexible 360mm Dual-Radiator Cooling: Accommodates high-end thermal configurations with ample space to mount a full-sized 360mm liquid cooling loop radiator simultaneously on either the top ceiling or the motherboard side tray, allowing you to cool high-TDP processors easily.
  • Elite Component Structural Clearance: Built to handle massive flagship tier hardware. Easily drop in extra-long graphics cards up to 410 mm in length, tall enthusiast tower air-coolers up to 176 mm high, and premium high-wattage power supplies up to 210 mm deep.
  • On-Board & Syncable ARGB Controller: Take direct authority over your system's ambient lighting array. Use the dedicated top panel LED button to click through 16 pre-programmed lighting effects, or hold the button for 2-3 seconds to sync control to your motherboard's software environment.

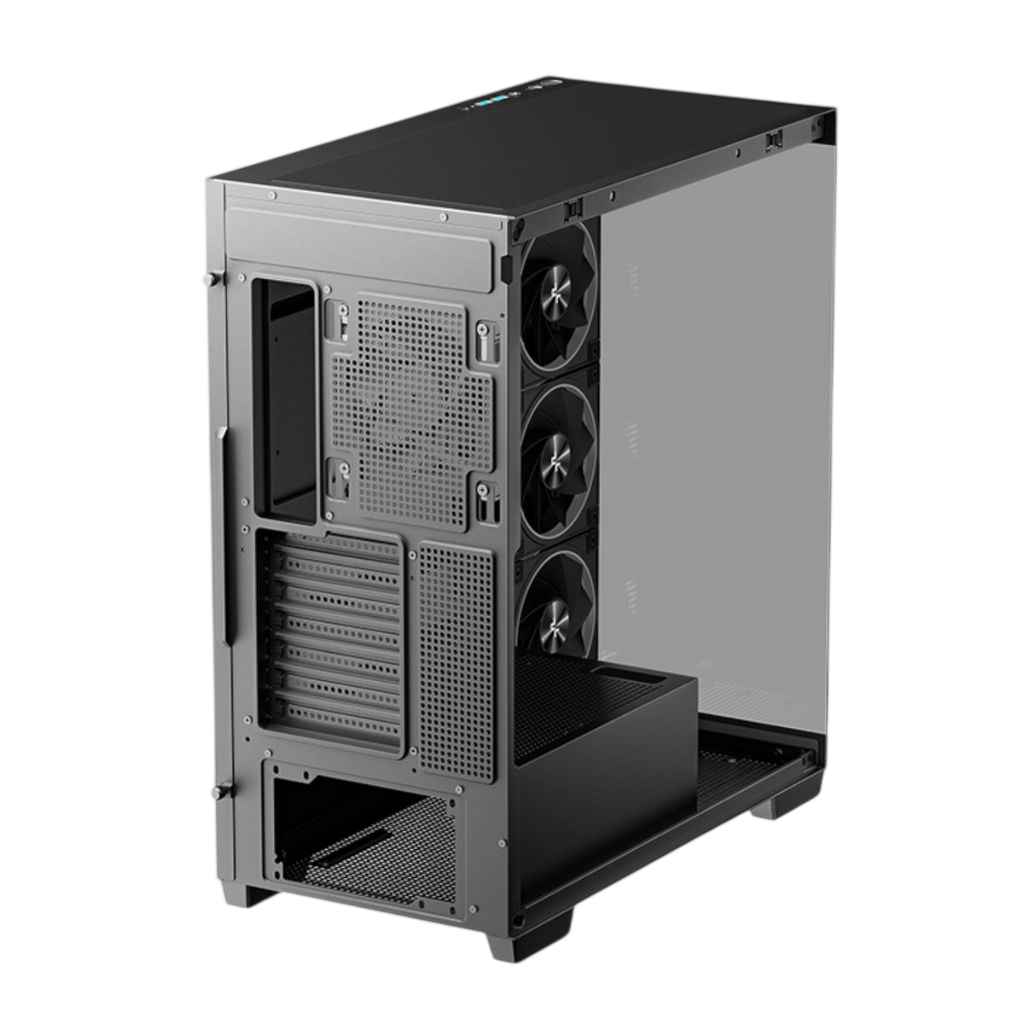

  • Simplified 33mm Cable Routing Space: Features a deep 33mm layout backplane chamber behind the motherboard tray. This generous clearance area provides plenty of room to organize bulky power cords, link fan hubs, and slide side panels shut without compression stress.
  • High-Speed Next-Gen I/O Connectivity: The top-mounted access array features a blazing-fast USB 3.2 Gen 2 Type-C port alongside dual USB 3.0 Type-A sockets and a hybrid mic/headphone audio port for quick peripheral hookups.
Transform your PC build into a centerpiece with the DeepCool CG580 4F V2 Panoramic Mid-Tower Case in Black. Merging a pristine pillar-less glass layout, native support for rear-connector motherboards, and a pre-configured 4-fan ARGB cooling array, this chassis offers everything an enthusiast needs to build a clean, cool, and jaw-dropping performance gaming machine.
