DEEPCOOL CH270 DIGITAL - BLACK

  • TYPE: Case
  • SKU: 6933412765257
Brand New
$100.00

Notify me when DEEPCOOL CH270 DIGITAL - BLACK - Default Title becomes available.

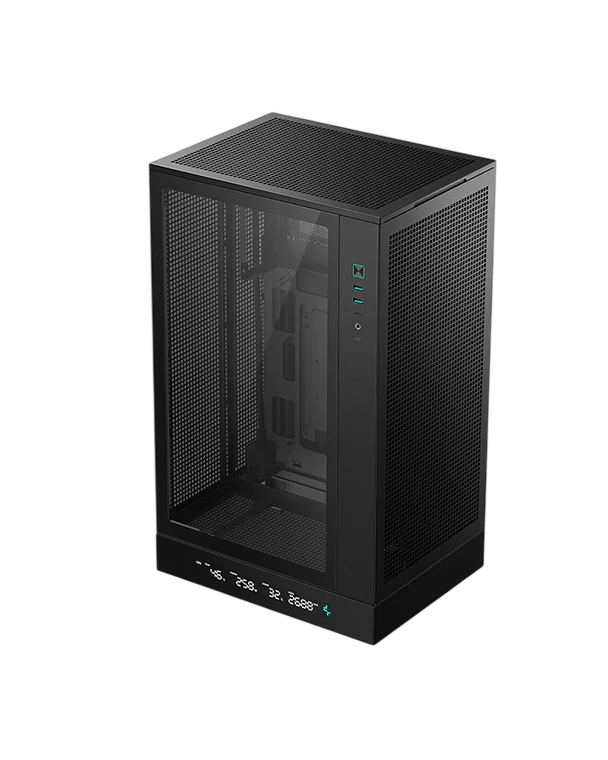

The DeepCool CH270 DIGITAL is an elevated, high-airflow mini-tower case engineered to maximize desktop space without sacrificing component real estate. Featuring a modern vertical layout with a remarkably small footprint, this stealthy matte black chassis accommodates up to Micro-ATX motherboards and full-size hardware configurations. An integrated real-time digital monitoring panel anchors the base, while a stunning tempered glass side window showcases your hardware against wraparound high-airflow mesh panels. Optimized for clean building trends, the CH270 DIGITAL completely redefines space-saving efficiency for high-performance setups.

Drive Bay Capacity
1x 3.5" HDD / 1x 2.5" SSD
Power Supply Type
ATX PS2 (Maximum length: 150 mm)
Net Weight
5.8 kg
Chassis Colorway
Stealth Matte Black

Specifications

Model Number / SKU CH270 DIGITAL / R-CH270-BKNDM0-G-1
Form Factor / Type Compact Mini-Tower (Vertical Orientation)
Chassis Colorway Stealth Matte Black
Material Composition ABS Plastic, SPCC Steel, Tempered Glass
Motherboard Support Micro-ATX / Mini-ITX
Rear Connector Board Support Yes (Wider backplane clearance for BTF/Project Zero)
Expansion Slots 4 Standard Slots
Drive Bay Capacity 1x 3.5" HDD / 1x 2.5" SSD
Power Supply Type ATX PS2 (Maximum length: 150 mm)
Pre-Installed Fans None (Ultimate builder flexibility)
Product Dimensions 296 mm × 225 mm × 486 mm (L × W × H)
Net Weight 5.8 kg

Highlights

  • Real-Time Vertical Digital Display Bar : Built with an intelligent status screen integrated into the lower base that tracks critical temperatures, loads, and statistics across your CPU, GPU, or PSU.
  • Small Outside, Full-Size Inside : Despite its space-saving 32-liter volume, it fits full-sized ATX power supplies and massive flagship graphics cards up to 413 mm vertically.
  • Uncompromising Wraparound Mesh Ventilation : Outfitted with highly breathable, perforated wraparound mesh structures on the panels to maximize fresh intake and expel hot air.
  • Massive 360mm Side AIO Mounting : Natively supports up to a 360mm all-in-one liquid cooling radiator vertically down the side panel while handling tower air coolers up to 174 mm tall.
  • Rear-Connector Motherboard Ready : Designed with extra clearance behind the motherboard tray to accommodate next-gen hidden-cable standards like ASUS BTF and MSI Project Zero.
  • Customizable Perforated Accent Panels : Perforated patterns on top and front panels accept DeepCool PIXEL rubber bits for constructing custom colorful logos or patterns.
  • Modern High-Speed Front I/O Array : Features two high-speed USB 3.0 Type-A ports, a USB 3.2 Gen 2 Type-C port, and a consolidated HD Audio/Mic combo jack.
Save premium desk space while putting your high-end hardware on display with the DeepCool CH270 DIGITAL Micro-ATX case. Merging a space-saving vertical micro-tower footprint with support for full-size ATX components, massive 360mm liquid cooling arrays, and a real-time hardware status screen, this elegant black enclosure delivers the ultimate balance of compact efficiency and uncompromised thermal performance.
