DEEPCOOL CH560 DIGITAL WHITE

  • TYPE: Case
  • SKU: 6933412774877
Brand New
$135.00

Notify me when DEEPCOOL CH560 DIGITAL WHITE - Default Title becomes available.

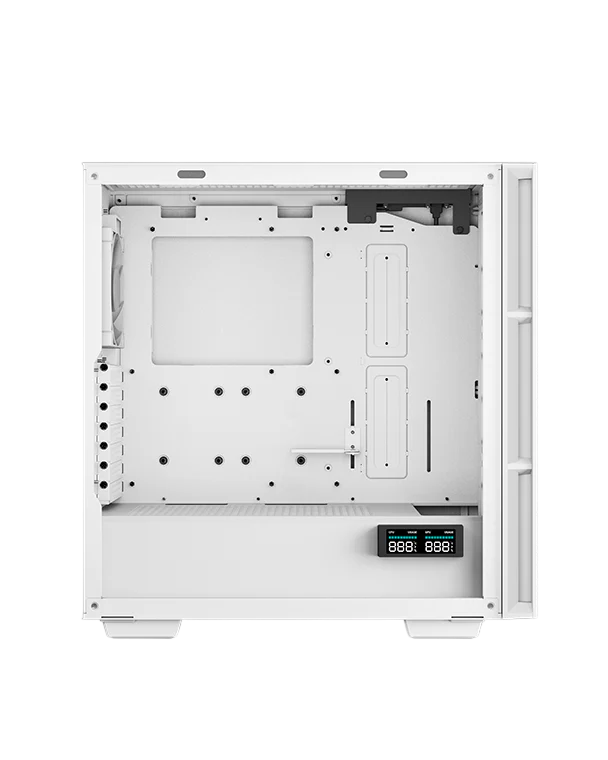

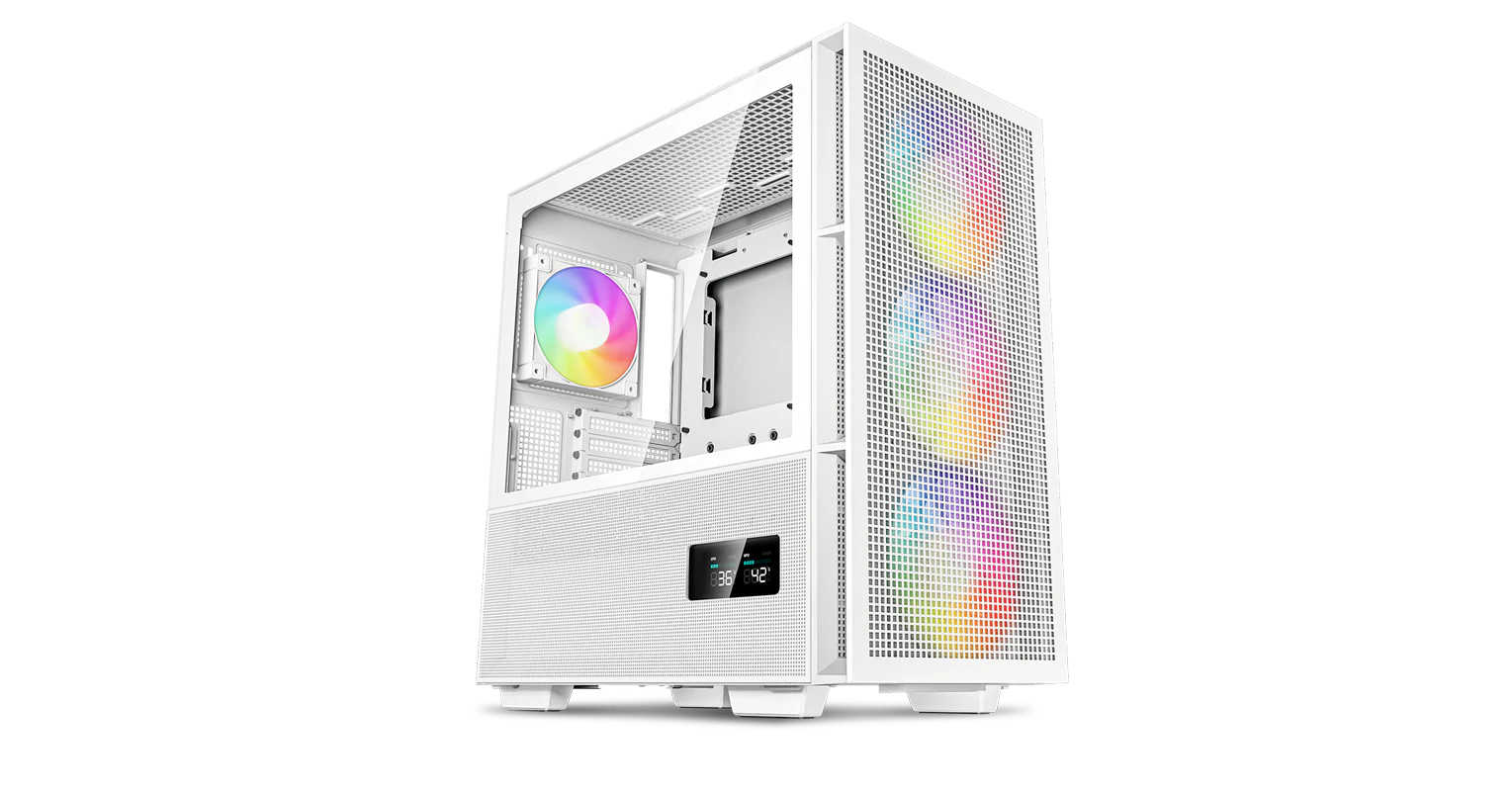

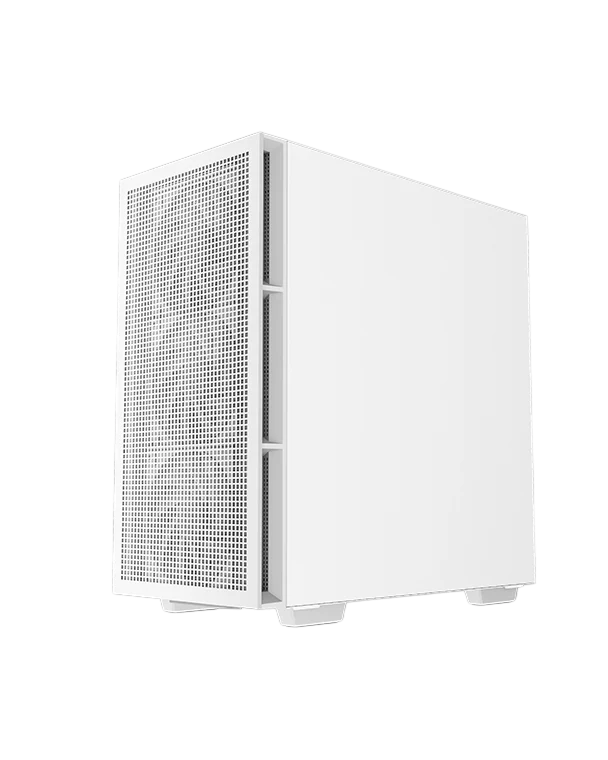

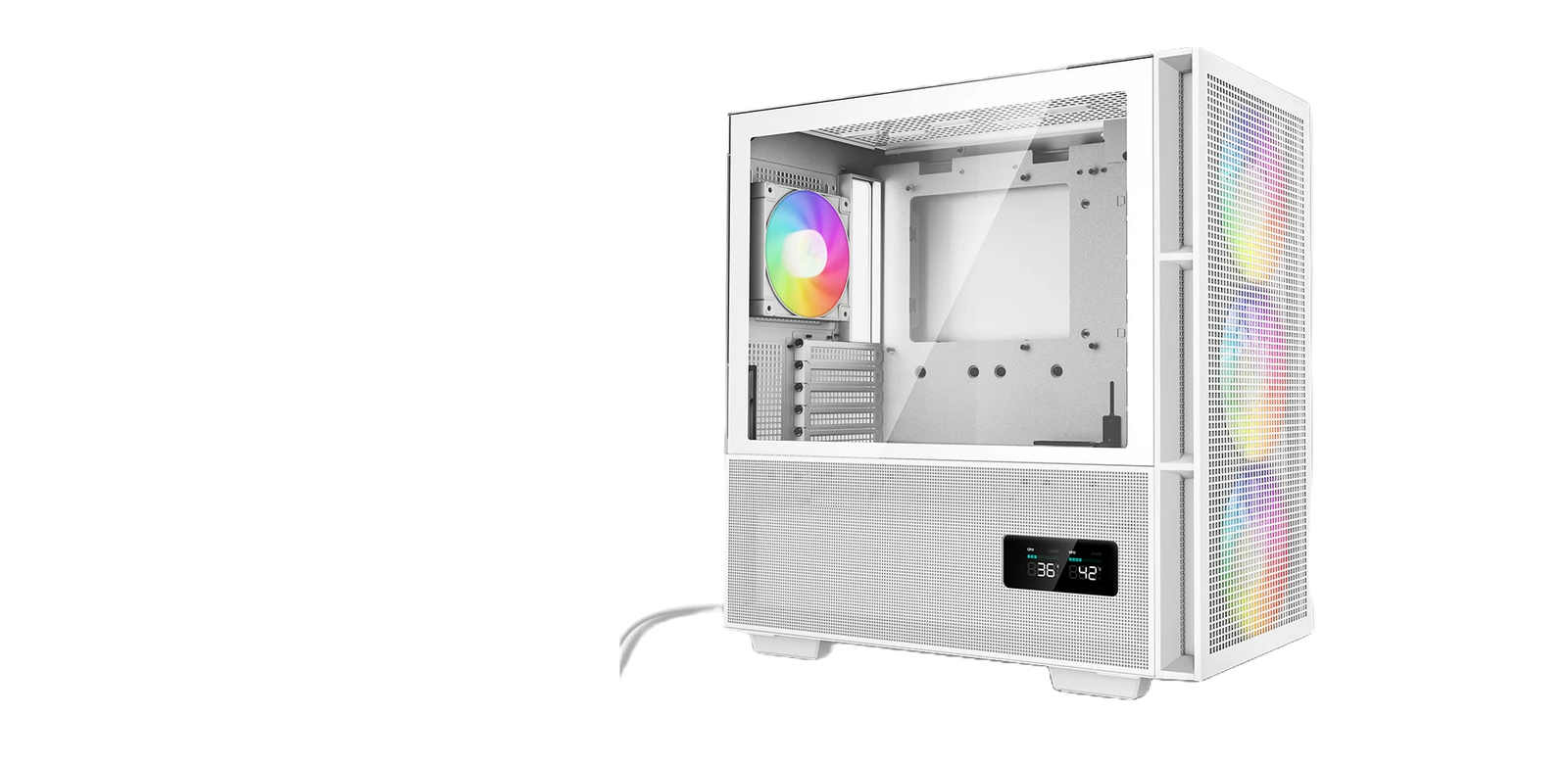

The DeepCool CH560 Digital White is a high-airflow mid-tower case designed for modern gaming builds. Featuring a hybrid tempered glass and mesh side panel, a digital status display, and four pre-installed ARGB fans, it offers both aesthetics and performance for PC enthusiasts.

Side Panel
Hybrid Tempered Glass & Mesh
Weight
7.5 kg
Case Type
Mid-Tower
Model
R-CH560-WHAPE4D-G-1

Specifications

Model R-CH560-WHAPE4D-G-1
UPC 6933412774877
Case Type Mid-Tower
Motherboard Support E-ATX / ATX / Micro-ATX / Mini-ITX
Material Steel, Tempered Glass, Plastic
Color White
Side Panel Hybrid Tempered Glass & Mesh
Dimensions (L×W×H) 458 × 230 × 471 mm
Weight 7.5 kg
Expansion Slots 7
Drive Bays 2 × 3.5", 2 × 2.5" + 1 × 2.5" (optional)
Front I/O Ports 1 × USB 3.0, 1 × USB 2.0, 1 × USB Type-C, 1 × Audio Jack
Pre-Installed Fans Front: 3 × 140mm ARGB, Rear: 1 × 120mm ARGB
Fan Support Front: 3 × 120mm / 3 × 140mm<br>Top: 2 × 120mm / 2 × 140mm<br>Rear: 1 × 120mm<br>PSU Shroud: 2 × 120mm
Radiator Support Front: 120 / 140 / 240 / 280 / 360mm<br>Top: 120 / 140 / 240 / 280 / 360mm<br>Rear: 120mm
CPU Cooler Clearance 175 mm
GPU Clearance 380 mm
PSU Clearance 170 mm
Dust Filters Top, Bottom

Highlights

  • DIGITAL STATUS DISPLAY : Monitor CPU and GPU temperatures in real-time with the integrated digital display panel.
  • HIGH-AIRFLOW DESIGN : The hybrid tempered glass and mesh side panel, along with a mesh front panel, ensures optimal airflow throughout the chassis.
  • ARGB LIGHTING : Comes with four pre-installed ARGB fans that provide vibrant lighting effects, enhancing the visual appeal of your build.
  • SPACIOUS INTERIOR : Supports large graphics cards up to 380 mm in length and CPU coolers up to 175 mm in height, accommodating a wide range of components.
  • VERSATILE COOLING OPTIONS : Supports multiple fan and radiator configurations, including up to a 360mm radiator at the front and top, allowing for efficient cooling solutions.
  • CONVENIENT CABLE MANAGEMENT : Offers ample space behind the motherboard tray for clean and organized cable routing.
Elevate your PC build with the DEEPCOOL CH560 DIGITAL WHITE MID-TOWER CASE. Combining efficient airflow, real-time system monitoring, and vibrant ARGB lighting, it's the ideal choice for gamers and PC enthusiasts seeking both performance and style.
