Name: DEEPCOOL LE520 240MM - WHITE
Brand: DEEPCOOL
SKU: 6933412728290
Price: 100.0 USD
Availability: OutOfStock

Back To Home

DEEPCOOL

DEEPCOOL LE520 240MM - WHITE

TYPE: Cooling
SKU: 6933412728290

Brand New1 Year Warranty

$100.00

Share

Link

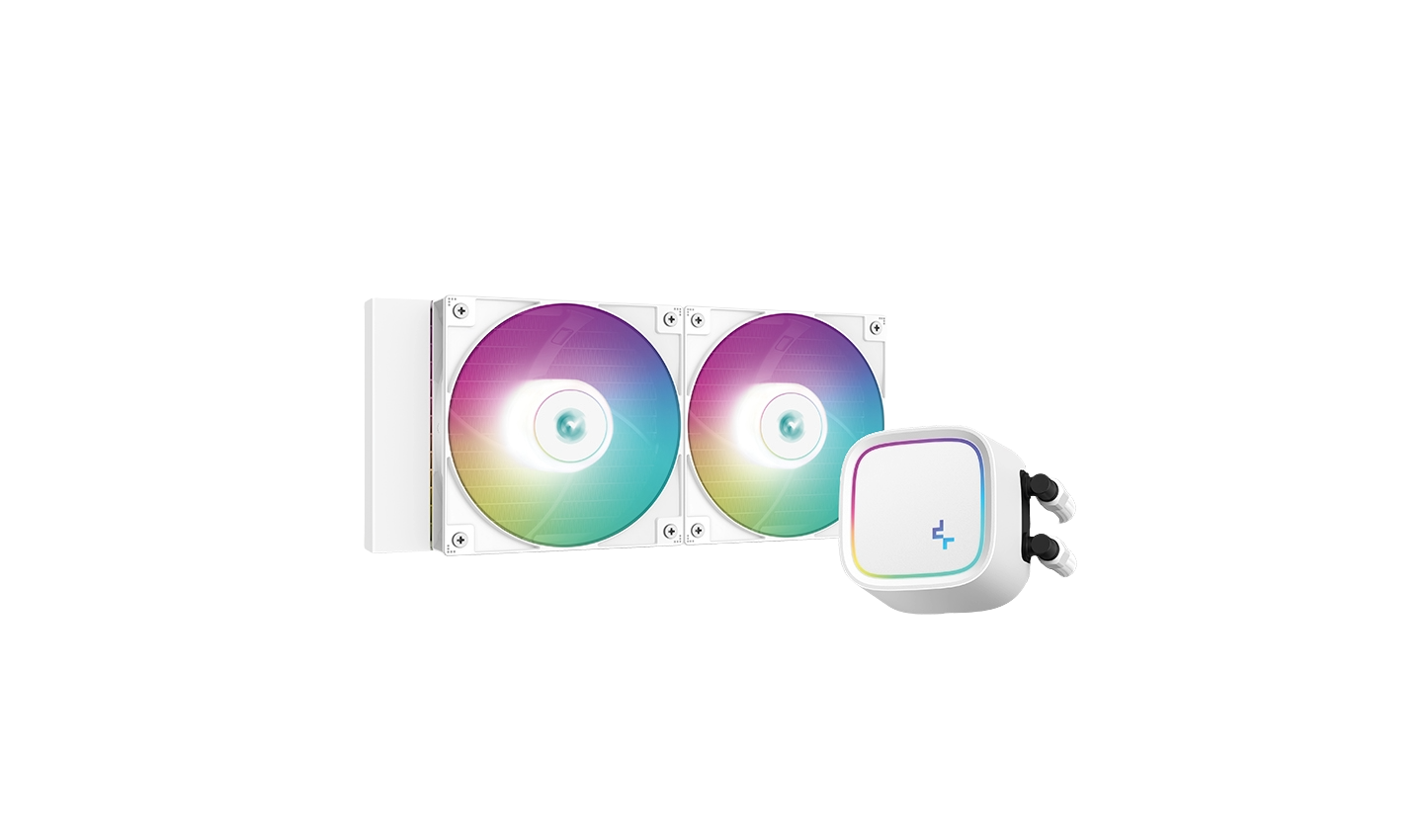

The DeepCool LE520 WH is a high-performance all-in-one (AIO) liquid CPU cooler designed to provide efficient cooling for modern CPUs. Featuring a 240mm radiator, dual 120mm ARGB fans, and a sleek white design, it ensures optimal heat dissipation while enhancing your system's aesthetics.

Cooling Capacity

220W TDP

Pump Power Consumption

2.4 W

Pump Speed

2400 RPM ±10%

Fan Dimensions

120 × 120 × 25 mm

Specifications

Model	R-LE520-WHAMMN-G-1
UPC	6933412728290
Cooling Capacity	220W TDP

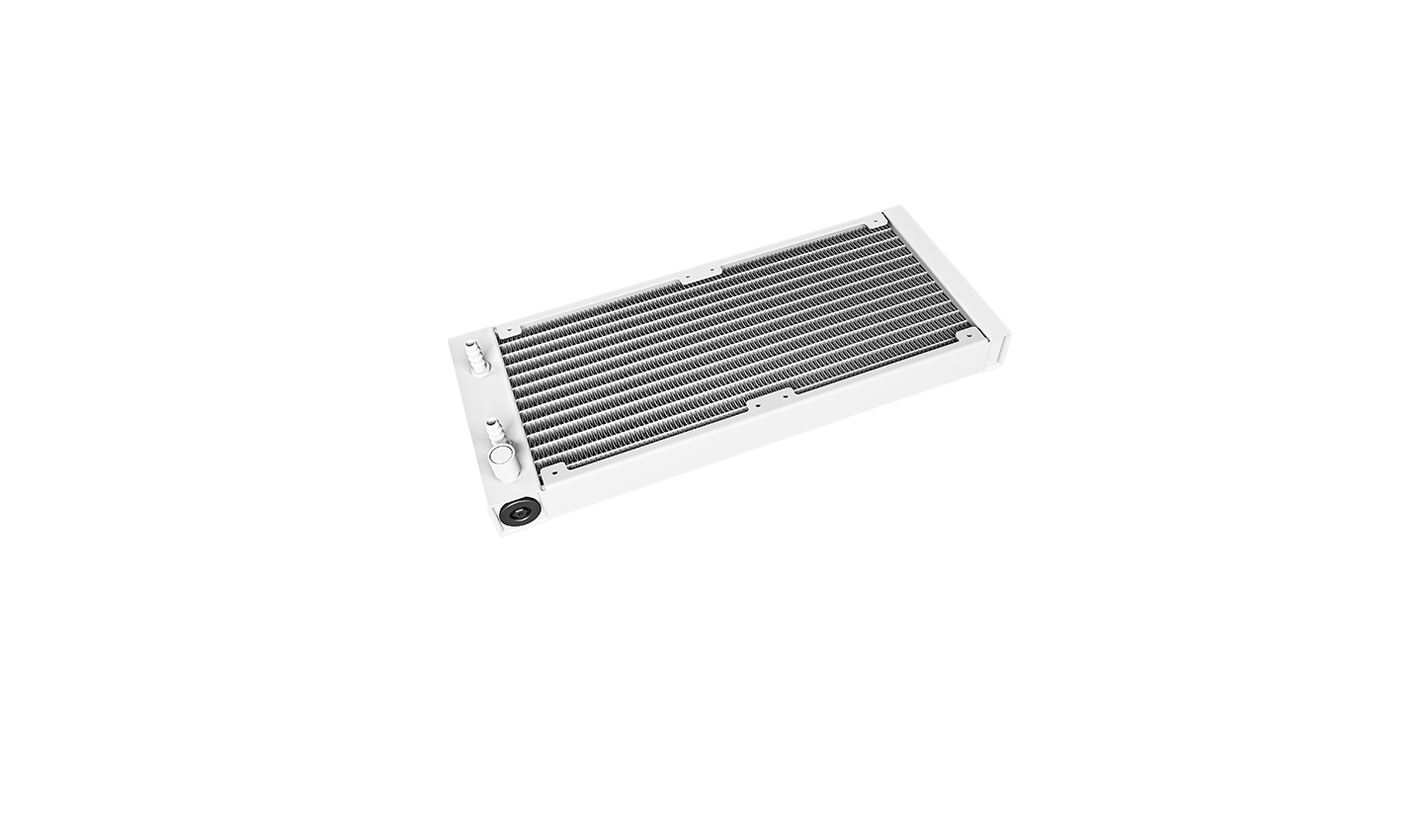

Radiator Dimensions	282 × 120 × 27 mm
Radiator Material	Aluminum

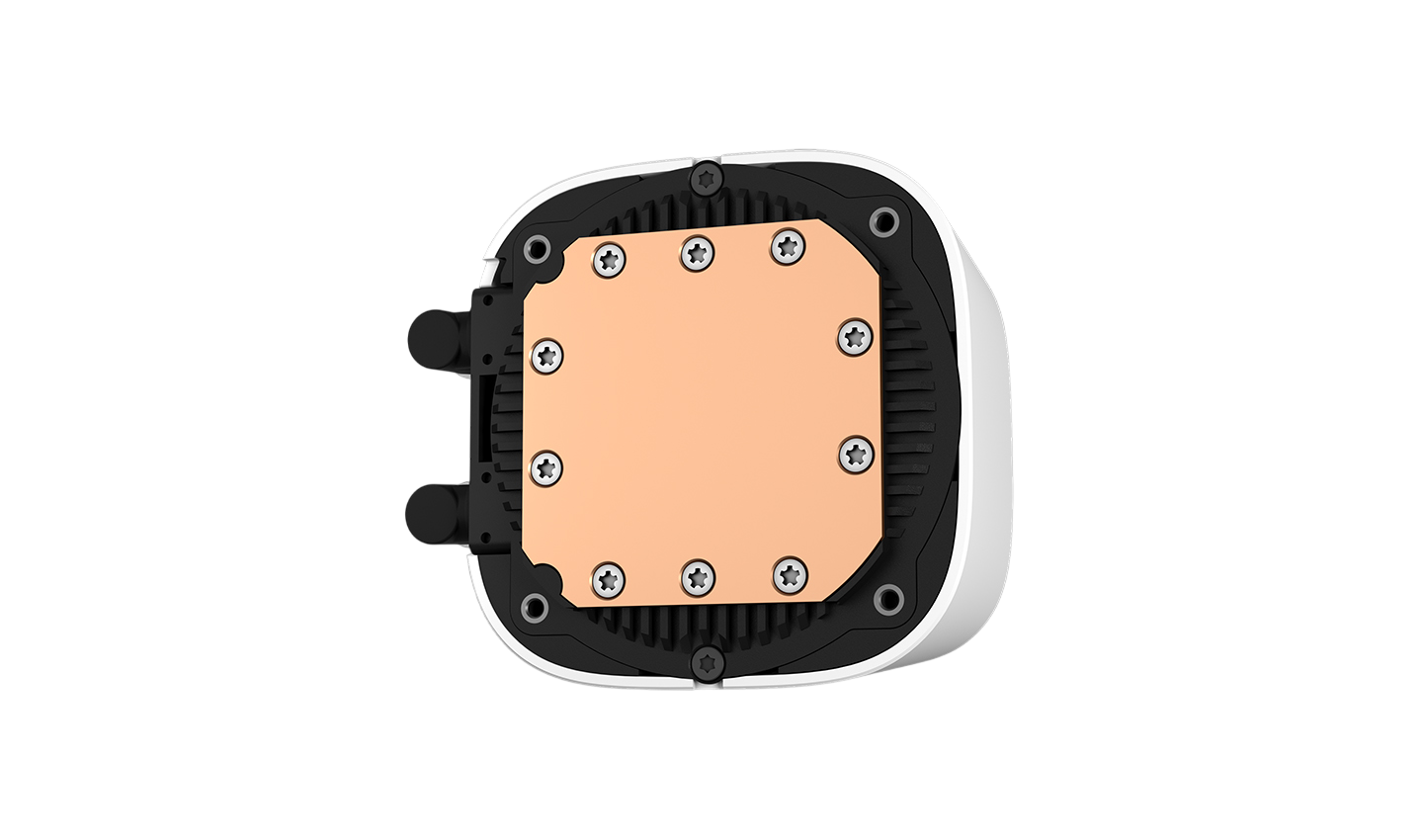

Pump Dimensions	91 × 80 × 52 mm
Pump Speed	2400 RPM ±10%
Pump Noise	17.8 dB(A)
Pump Connector	3-pin
Pump Rated Voltage	12 VDC
Pump Power Consumption	2.4 W

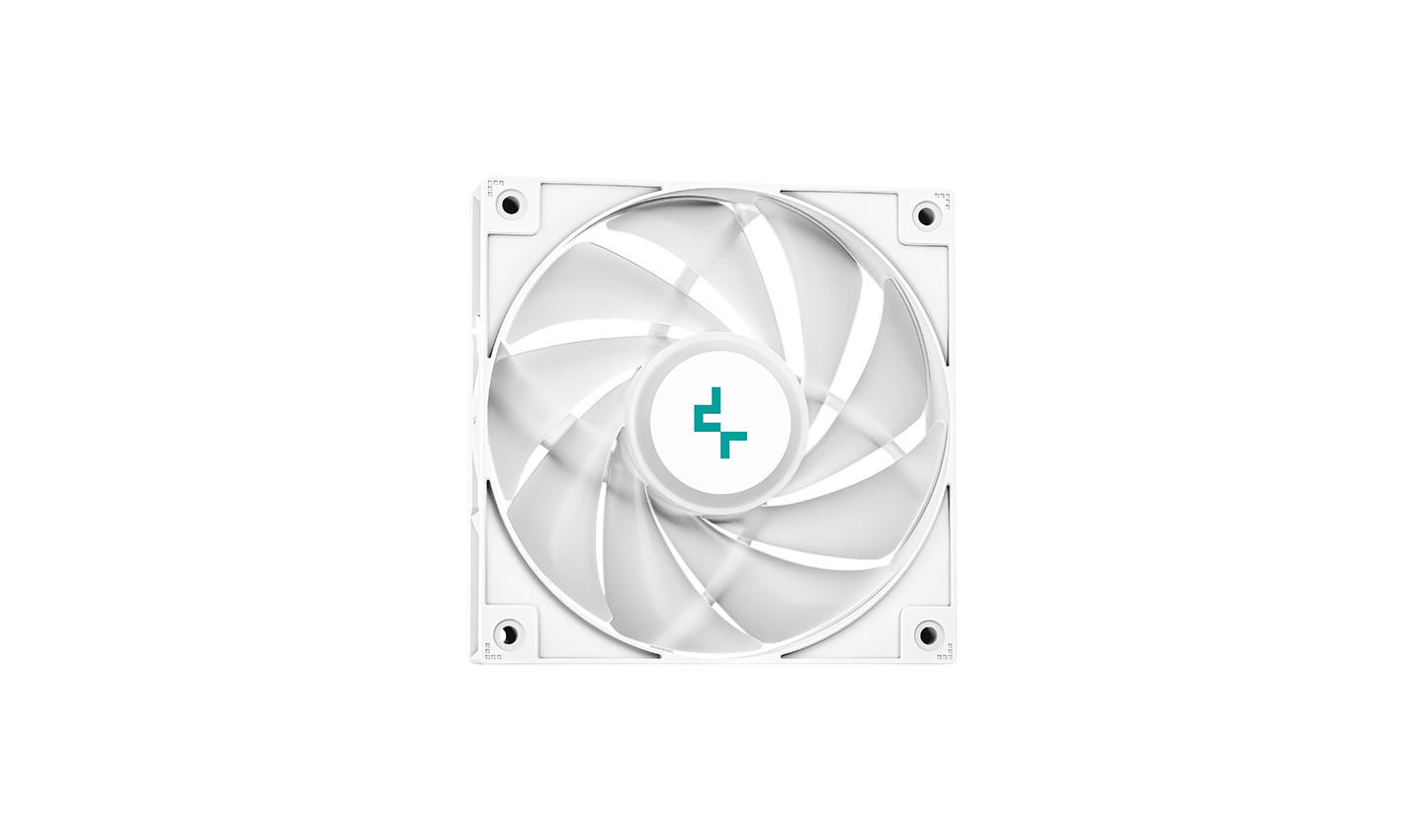

Fan Dimensions	120 × 120 × 25 mm
Fan Speed	500 – 2250 RPM ±10%
Fan Airflow	85.85 CFM
Fan Air Pressure	3.27 mmAq
Fan Noise Level	≤32.9 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
LED Type	Addressable RGB LED
LED Connector	3-pin (+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.25 W (Pump) / 2.1 W (Fan ×2)
Tube Length	410 mm
Socket Compatibility	Intel LGA 2011-v3/2011/1200/1151/1150/1155/1366; AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Highlights

EFFICIENT COOLING PERFORMANCE: With a cooling capacity of 220W TDP, the LE520 WH effectively manages heat for high-performance CPUs.
DUAL 120MM ARGB FANS: Provides vibrant lighting effects and excellent airflow, enhancing both aesthetics and cooling efficiency.
SLEEK WHITE DESIGN: The white color scheme adds a clean and modern look to your build.
ANTI-LEAK TECHNOLOGY: Features DeepCool’s patented Anti-Leak Technology for enhanced safety and longevity.
WIDE COMPATIBILITY: Supports a broad range of Intel and AMD sockets, making it versatile for various builds.

Upgrade your cooling solution with the DEEPCOOL LE520 WH 240MM ARGB AIO CPU LIQUID COOLER. Combining high thermal performance, vibrant ARGB lighting, and a sleek white design, it's the perfect choice for gamers and PC enthusiasts seeking both function and style.
