DEEPCOOL PF500X 500W 800 PLUS BRONZE

  • TYPE: Power Supply
  • SKU: 6933412743804
Brand New1 Year Warranty
$55.00

Notify me when DEEPCOOL PF500X 500W 800 PLUS BRONZE - Default Title becomes available.

The DeepCool Gamer Storm PF500X is a highly reliable, non-modular 500W power supply unit engineered to deliver safe, stable, and cost-effective energy to entry-to-mid-range gaming configurations and compact daily workstations. Built on modern desktop architectures and adhering to the Intel ATX 2.52 design standard, this compact black enclosure features an optimized structural layout to suppress ripple noise and eliminate voltage deviations. Combining multi-agency bronze efficiency certifications with premium internal filtering arrays, the PF500X provides the perfect combination of essential hardware safeguards and clean system aesthetics.

Form Factor / Type
ATX12V V2.52
Continuous Power Output
500 Watts
Model Name / SKU
PF500X / R-PF500X-HD0B-JGUK
Mean Time Between Failures
40,000 Hours (MTBF)

Specifications

Model Name / SKU PF500X / R-PF500X-HD0B-JGUK
Form Factor / Type ATX12V V2.52
Cabling Configuration Non-Modular / Custom-Molded Flat Black Sleeved Cables
Continuous Power Output 500 Watts
Efficiency Certifications 80 PLUS 230V EU Bronze / Cybenetics Bronze / PPLP 230V Bronze
Cybenetics Noise Level Cybenetics A (Ultra-Quiet Performance Validation)
Topology Architecture Active PFC + Double Forward + DC-to-DC Conversion
Capacitor Configuration Premium Taiwanese Solid + Dual Japanese Brand Electrolytic
Cooling Fan Engine 120mm Long-Life Hydro-Dynamic Bearing (HYB) Fan
Mean Time Between Failures 40,000 Hours (MTBF)
Dimensions (W x L x H) 150 mm x 140 mm x 86 mm (Shallow Case Compatibility)

Highlights

  • Multi-Bronze Efficiency Standards: Certified by 80 PLUS, Cybenetics, and PPLP to guarantee an 88% energy efficiency rating under typical 50% system loads. This helps reduce unnecessary power grid draw and keeps internal heat production to an absolute minimum.
  • Intel ATX 2.52 DC-to-DC Topology: Engineered with an active PFC setup, a dual-stage EMI circuit, and double forward DC-to-DC conversion rails. This design layout enforces strict voltage regulation and provides excellent compatibility with modern processor power states.
  • Premium Taiwanese & Japanese Filtering: Configured with premium Taiwanese solid and electrolytic bulk capacitors to preserve a power hold-up time ≥ 16ms under heavy operational strain. Crucial standby power lines are reinforced with dual Japanese brand electrolytic components, boosting service longevity.

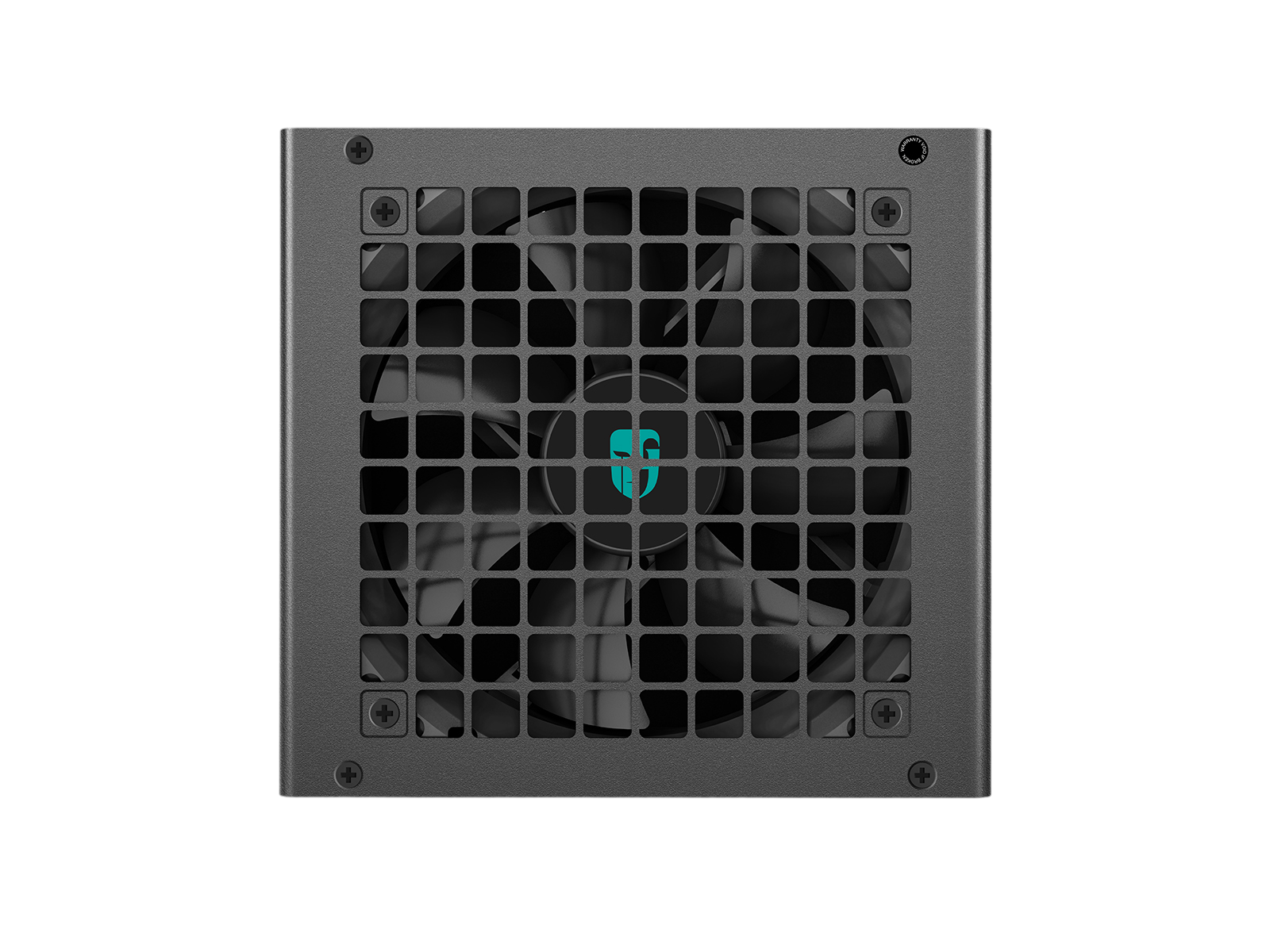

  • Aerodynamic 120mm HYB Fan: Cooled via a 120mm Hydro-Dynamic Bearing (HYB) fan running an optimized flow-resistance layout. The internal bearing reduces operational friction and casing vibrations, ensuring a quiet profile throughout intensive workloads while honoring a hushed Cybenetics A noise limit.
  • Stealthy Custom-Molded Flat Black Cables: Equipped with fixed, premium flat black sleeved cables designed by Gamer Storm. The flexible ribbons bend easily around chassis layout constraints, making behind-the-tray routing a clean experience while keeping the main chamber clear for optimal airflow.
  • 8-Tier Comprehensive IC Safety Shield: Outfitted with an integrated industrial-grade protection circuit that constantly monitors system parameters. It guards against Over-Power (OPP), Over-Voltage (OVP), Short-Circuit (SCP), Over-Temperature (OTP), Over-Current (OCP), Under-Voltage (UVP), Surge & Inrush (SIP), and No-Load Operations (NLO).
  • Wide Voltage Adaptation Integration: Designed to protect systems connected to unstable power infrastructure by supporting a wide 180V–264V AC input operational profile. It is factory-tested to survive full operational loads even during grid sags, completely averting sudden system shutdowns.
Lay down a rock-solid, efficient, and well-protected foundation for your next mainstream PC build with the DeepCool Gamer Storm PF500X 500W 80 PLUS Bronze power supply. By matching multi-certified 88% efficiency with premium internal components, an ultra-quiet 120mm HYB cooling fan, and flat black cable management styling, this 500W power supply delivers the ultimate balance of budget-friendly economy and uncompromised desktop power stability.
