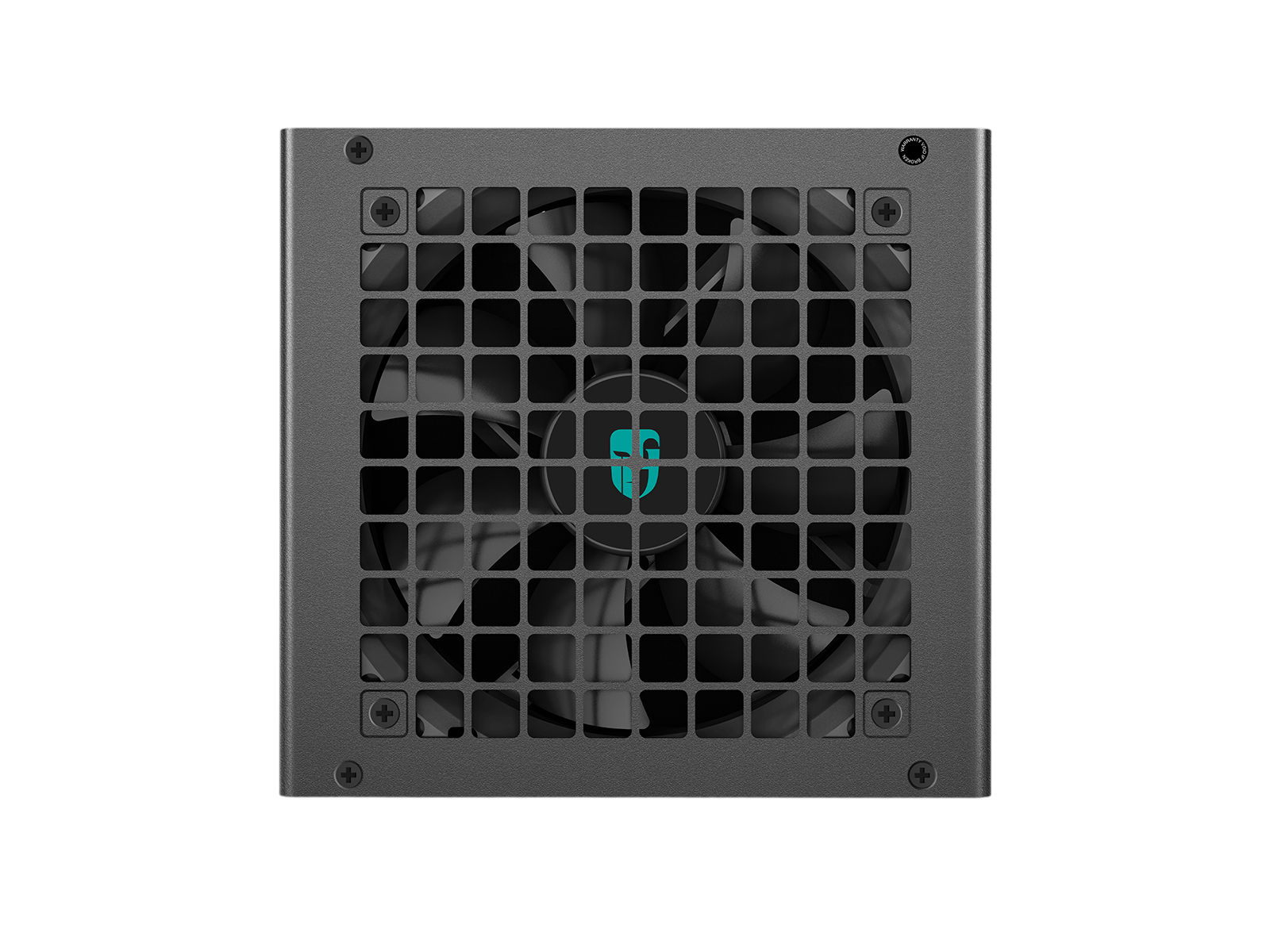

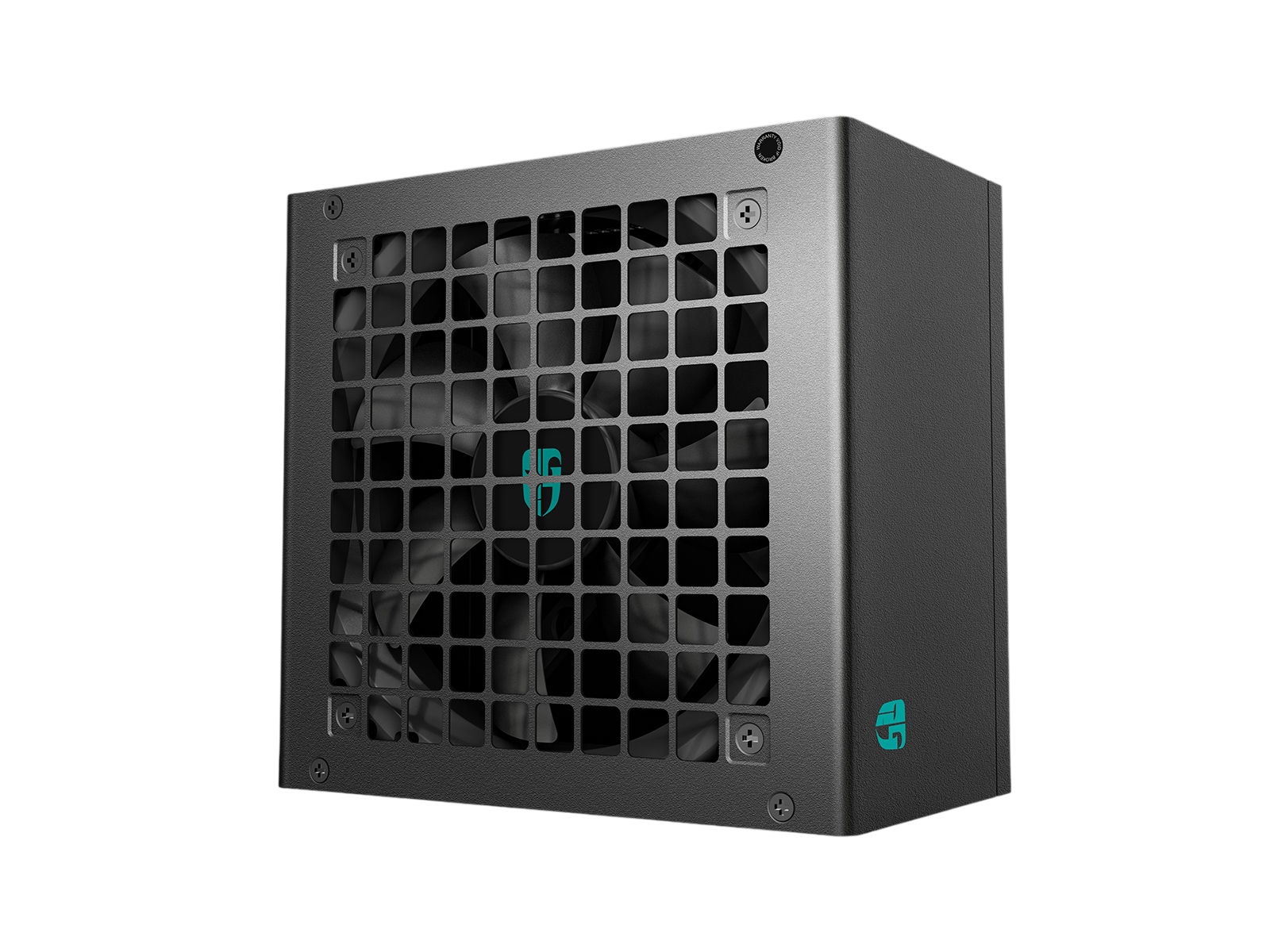

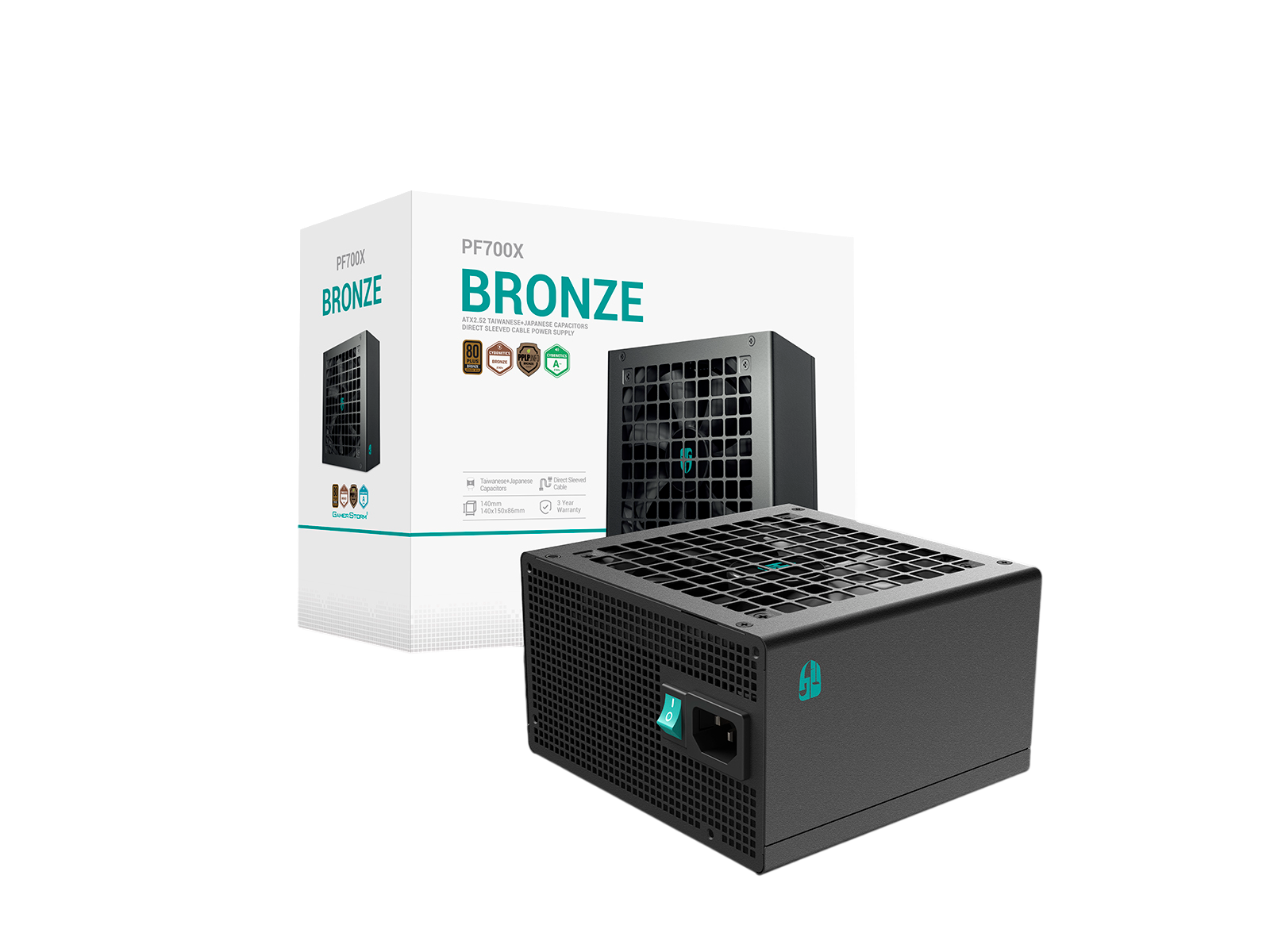

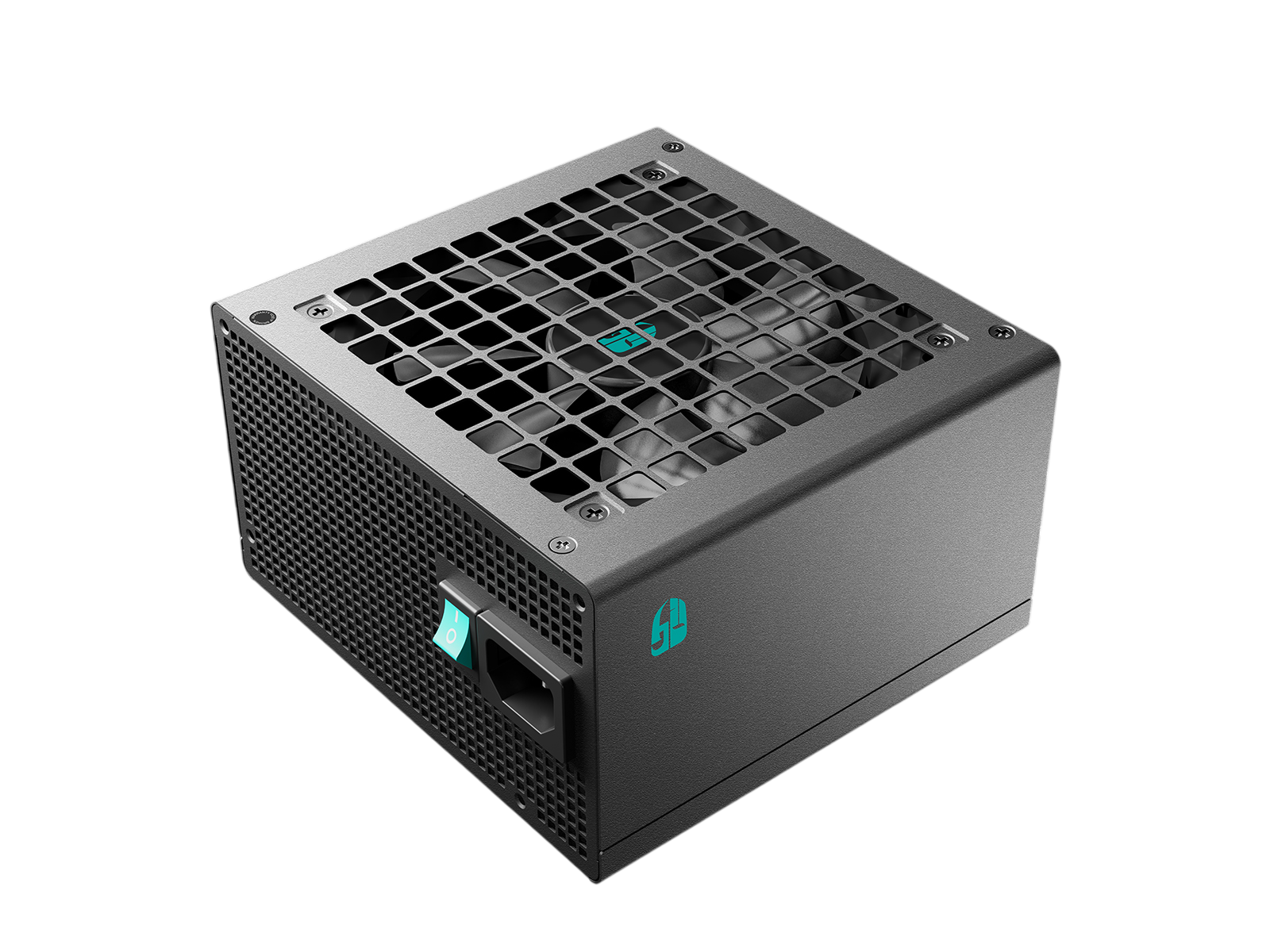

DEEPCOOL PF700X 700W 800 PLUS BRONZE

  • TYPE: Power Supply
  • SKU: 6933412744085
Brand New1 Year Warranty
$70.00

Notify me when DEEPCOOL PF700X 700W 800 PLUS BRONZE - Default Title becomes available.

The DeepCool Gamer Storm PF700X is a reliable, high-performance 700W power supply unit (PSU) engineered to provide stable and efficient power delivery for modern gaming rigs and multitasking workstations . Built on the Intel ATX12V v2. 52 standard, it utilizes an advanced Active PFC, Double Forward, and DC-to-DC topology to ensure superior voltage stability and minimal ripple noise . Backed by multiple efficiency certifications and premium internal component architecture, the PF700X is the perfect backbone for system builders seeking cost-effective, long-term durability without compromising on component safety .

Form Factor / Type
ATX12V V2 .52
Continuous Power Output
700 Watts
Model Name / SKU
PF700X / R-PF700X-HD0B-JGUK
Mean Time Between Failures
40,000 Hours (MTBF)

Specifications

Model Name / SKU PF700X / R-PF700X-HD0B-JGUK
Form Factor / Type ATX12V V2 .52
Cabling Configuration Non-Modular / Custom-Molded Flat Black Sleeved Cables
Continuous Power Output 700 Watts
Efficiency Certifications 80 PLUS 230V EU Bronze / Cybenetics Bronze / PPLP 230V Bronze
Cybenetics Noise Level Cybenetics A- (230V Ultra-Quiet Validation)
Topology Architecture Active PFC + Double Forward + DC-to-DC Conversion
Capacitor Configuration Premium Taiwanese Solid + Dual Japanese Brand Electrolytic
Cooling Fan Engine 120mm Long-Life Hydro-Dynamic Bearing (HYB) Fan
Mean Time Between Failures 40,000 Hours (MTBF)
Dimensions (W x L x H) 150 mm x 140 mm x 86 mm (Compact Case Compatibility)

Highlights

  • Elite Triple Bronze Efficiency: Proudly bears independent efficiency certifications from 80 PLUS, Cybenetics, and PPLP. It guarantees greater than 88% energy efficiency under typical 50% system loads, significantly reducing internal heat generation and building electricity waste.
  • Active PFC + DC-to-DC Topology: Engineered with a dual-stage EMI circuit and DC-to-DC conversion rails that step down voltage cleanly. This advanced design eliminates voltage deviation stutters, ensuring tight regulations and rock-solid compatibility with modern CPUs and high-TDP graphics cards.
  • Premium Taiwanese & Japanese Capacitors: Outfitted with premium Taiwanese solid electrolytic capacitors to maintain a power hold-up time ≥ 16ms under 75% load during abrupt outages. The vital 5V Stand-By (5VSB) rail is reinforced with dual-brand Japanese capacitors, offering a 4-fold operational lifespan over generic components.
  • Ultra-Quiet 120mm HYB Fan: Cooled by a 120mm long-life Hydro-Dynamic Bearing (HYB) fan running an aerodynamic layout that increases operational lifespans by 30% over standard sleeve-bearing models. It operates continuously 24/7 in demanding 40°C scenarios while maintaining a hushed Cybenetics A- noise footprint.

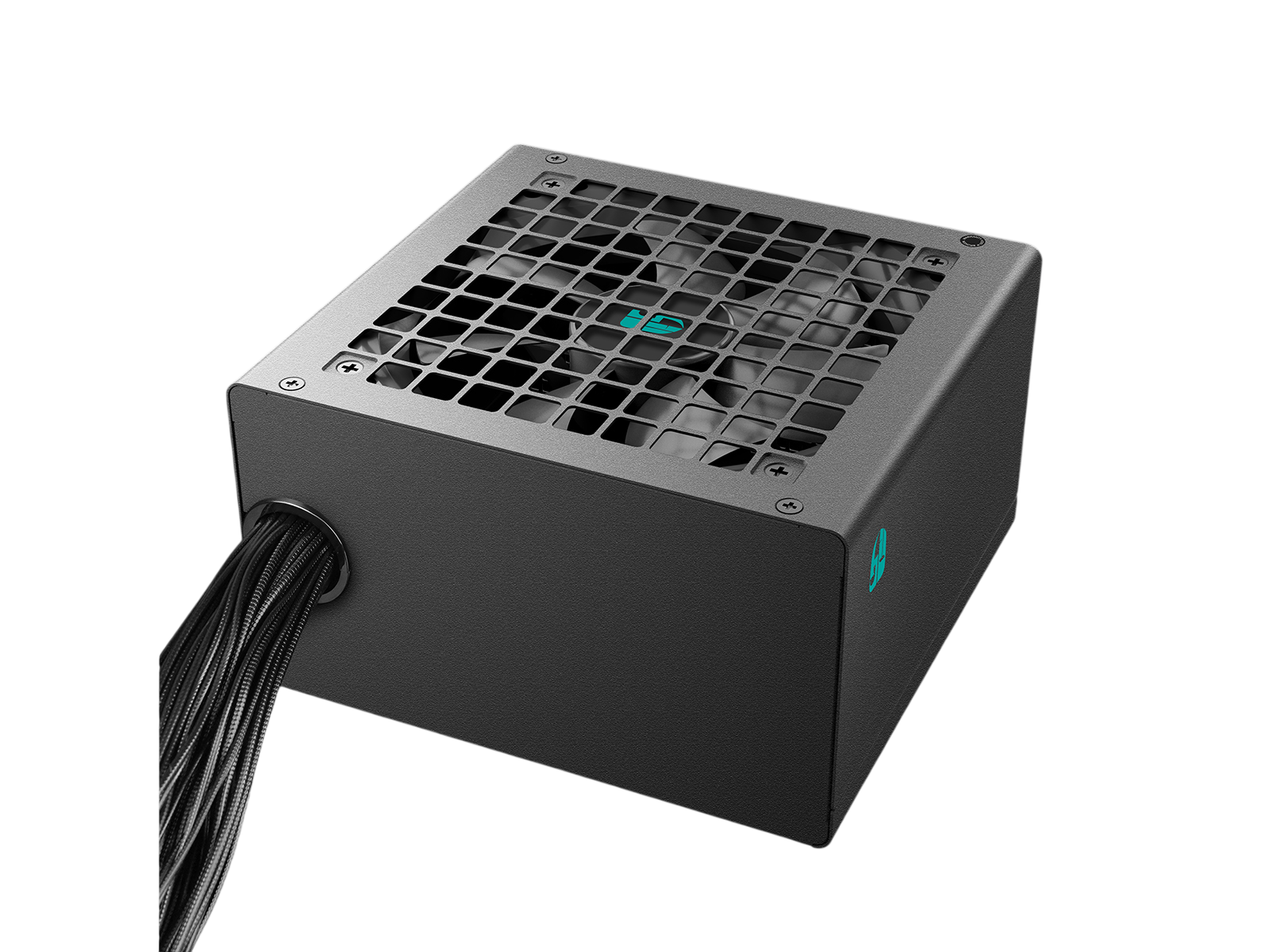

  • Stealthy Flat Black Sleeved Cables: Features DeepCool’s custom-molded, low-profile flat black sleeved cables. The flexible, non-modular cable strands bend easily around tight corners behind motherboard trays, streamlining internal layouts and optimizing main-chamber airflow dynamics.
  • 8-Tier Comprehensive IC Safeguards: Packed with an industrial-grade protection integrated circuit (IC) matrix. The system actively monitors for Over-Power (OPP), Over-Voltage (OVP), Over-Current (OCP), Short-Circuit (SCP), Over-Temperature (OTP), Under-Voltage (UVP), Surge/Inrush (SIP), and No-Load Operations (NLO) to completely shield your hardware.
  • Wide Voltage Adaptation Matrix: Formulated to effortlessly navigate unstable power grids by natively supporting a wide 180V–264V AC input spectrum. It is tested to endure full-load processing at room temperature even when a grid sags to 160V, entirely preventing unexpected safety shutdowns.
Anchor your hardware investment with the unwavering power delivery of the DeepCool Gamer Storm PF700X 700W 80 PLUS Bronze PSU. By unifying certified Triple Bronze energy conservation with modern ATX 2 .52 DC-to-DC topology, hybrid premium Japanese/Taiwanese filtering arrays, and flat black aesthetic cabling, this 700W power supply unit provides the ultimate balance of heavy-duty PC component safety and pristine, whisper-quiet operation.
