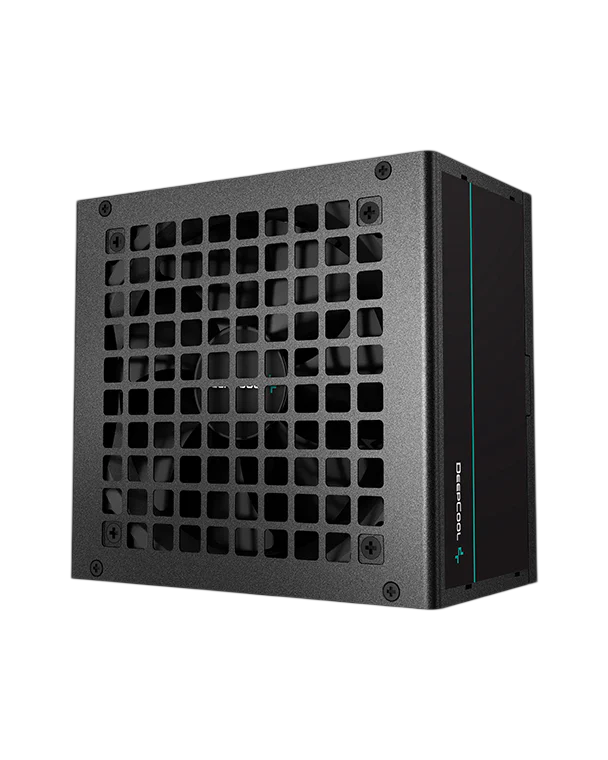

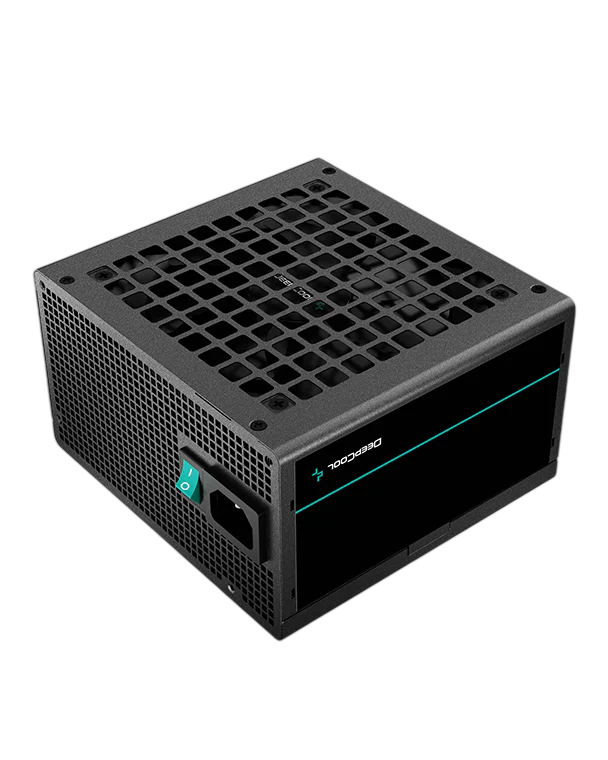

DEEPCOOL PF750D 750W 80 PLUS

  • TYPE: Power Supply
  • SKU: 6933412711605
Brand New1 Year Warranty
$75.00

Notify me when DEEPCOOL PF750D 750W 80 PLUS - Default Title becomes available.

The DeepCool PF750D is a highly reliable 750W power supply unit engineered to deliver safe, stable, and cost-effective power performance for mainstream gaming configurations and daily workstation workloads. Built on modern desktop standards, this non-modular ATX power supply combines certified electrical efficiency with standard-compliant component safety architectures. Housed in a compact, stealthy matte black frame, the PF750D utilizes an optimized structural layout to provide clean voltage regulation, making it an excellent foundation for setups running mid-to-high range graphics cards and high-performance multi-core processors.

Efficiency Certification
80 PLUS Standard 230V EU (White)
Form Factor / Type
ATX12V V2 .4
Continuous Power Output
750 Watts
Model Name / SKU
PF750D Series / R-PF750D-HA0B

Specifications

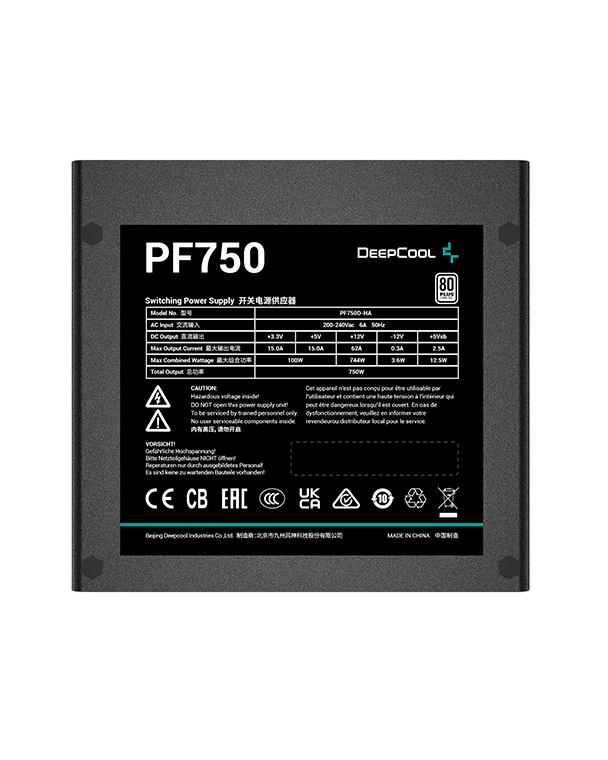

Model Name / SKU PF750D Series / R-PF750D-HA0B
Form Factor / Type ATX12V V2 .4
Cabling Configuration Non-Modular / Fixed Layout
Continuous Power Output 750 Watts
Efficiency Certification 80 PLUS Standard 230V EU (White)
Topology Architecture Active PFC + Double Tube Forward
Total Amperage (+12V Rail) 62A
Capacitor Configuration Reliable Taiwan Bulk Capacitors
Cooling Fan Engine 120mm Silent Hydraulic Bearing Fan
Hold-Up Time ≥ 12ms (At 75% Load Operational Strain)
Mean Time Between Failures 100,000 Hours (MTBF Reliability Rating)
Dimensions (W x L x H) 150 mm x 1 4 0 mm x 86 mm

Highlights

  • Certified 230V EU Energy Efficiency: Formally verified under the 80 PLUS 230V EU Standard to deliver up to 85% energy efficiency under typical 50% system loads. This enhanced operational capability drastically cuts back on power wastage while keeping thermal output low to extend component longevity.
  • Active PFC + Double Tube Forward Topology: Structured to yield consistent power tracking. Each unit is precision-engineered to produce uniform voltage stability and reliable throughput across individual rails, allowing safe instant-on waking from deep standby or sleep cycles.

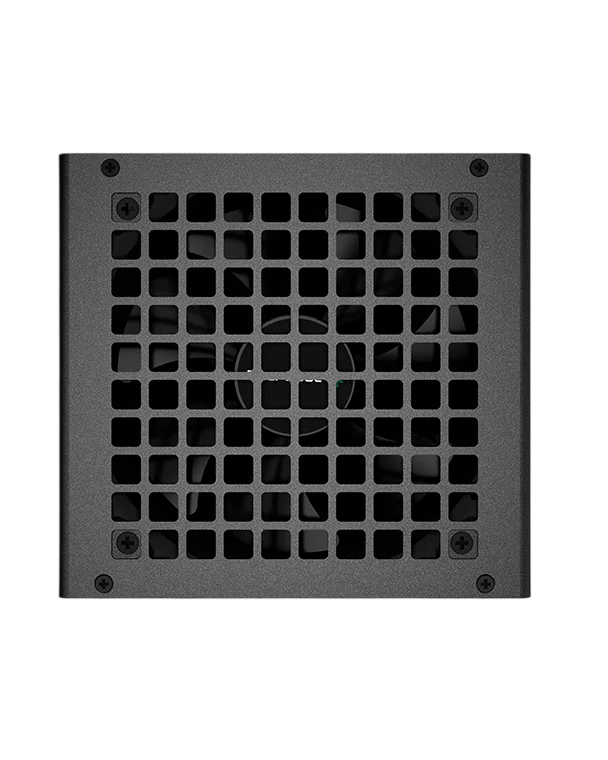

  • Whisper-Quiet 120mm Hydraulic Fan: Cooled via a 120mm low-noise fluid/hydraulic bearing fan designed to optimize internal airflow currents without ramping up system acoustics. The internal bearing reduces operational friction and casing vibrations, ensuring a quiet profile throughout intensive workloads.
  • Ample High-Performance Power Distribution: Outfitted with twin EPS 4+4 pin CPU connectors and four 6+2 pin PCIe outputs. This allows the 750W power supply to easily feed a wide catalog of modern, high-TDP multi-core processors and mid-to-high tier graphics cards safely.
  • Stealthy Low-Profile Flat Black Cables: Manufactured with fixed, ultra-flexible flat black cabling. These flat ribbons move smoothly through tight corners behind the motherboard tray, helping builders minimize spatial clutter while preserving optimal, clear paths for main-chamber airflow dynamics.
  • Four-Tier Comprehensive IC Safety Shield: Hardwired with an integrated industrial-grade monitoring circuit. The internal IC actively safeguards your secondary hardware investments by incorporating Over-Power Protection (OPP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Short-Circuit Protection (SCP).
  • Compact Chassis Fitment Engineering: Modeled to fit easily inside the vast majority of mid-tower and compact ATX chassis enclosures without issue. The shallow 140mm depth measurement leaves vital structural breathing room in the lower shroud area to house excess cable runs comfortably.
Secure a solid, reliable, and energy-conscious foundation for your desktop ecosystem with the DeepCool PF750D 750W 80 PLUS power supply. Bringing together certified 85% efficiency metrics, a quiet 120mm hydraulic cooling solution, premium flat black aesthetic cabling, and rigorous hardware safety protections, this versatile 750W unit supplies the ultimate balance of budget-friendly economy and uncompromised desktop power stability.
