GAMDIAS

GAMDIAS ATLAS E1 DIGITAL

  • TYPE: Case
  • SKU: 4711514500271
Brand New
$75.00

Notify me when GAMDIAS ATLAS E1 DIGITAL - Default Title becomes available.

The GAMDIAS ATLAS E1 Digital is a compact, high-visibility mid-tower case designed for gamers and PC builders seeking a balance of high airflow, modern aesthetics, and real-time system tracking. Acting as the budget-friendly, space-efficient entry point to the premium Atlas lineup, it features seamless dual tempered glass panels across the front and left side to eliminate visual corner obstructions. The chassis comes highlighted by an embedded digital status monitor built onto the lower frame to keep tabs on critical hardware performance. Outfitted with three pre-installed 120mm ARGB fans—including dual reverse-intake shroud fans—the ATLAS E1 Digital delivers impressive bottom-to-top thermal air pathing straight out of the box.

Case Form Factor
Mid-Tower
Net Weight
6.3 kg (13.9 lbs)
Brand
GAMDIAS
Series
ATLAS Series

Specifications

Brand GAMDIAS
Series ATLAS Series
Model ATLAS E1 Digital
Case Form Factor Mid-Tower
Chassis Material SPCC Steel, ABS Plastic, & Tempered Glass
Color Options Matte Black / Snow White
Motherboard Support ATX, Micro-ATX, Mini-ITX
Built-in Digital Display Real-time LCD panel (Monitors CPU, GPU, and Ambient temperatures)
Pre-Installed Fans PSU Shroud: 2 x 120mm ARGB Reverse Intake Fans Rear: 1 x 120mm ARGB Exhaust Fan
Total Fan Capacity Up to 5 fans (Top: 2x 120mm or 2x 140mm, PSU Shroud: 2x 120mm, Rear: 1x 120mm)
Radiator Support Top: 240 mm / Rear: 120 mm
Expansion Slots 7
Drive Bays 1 x 3.5" (Chassis Bottom) / 2 x 2.5" (SSD Brackets)
Front/Top I/O Ports 2 x USB 3.0, 1 x HD Audio, 1 x LED Switch, 1 x Monitor Mode Switch
RGB Synchronization 5V 3-Pin Addressable Header
CPU Cooler Clearance Up to 160 mm
VGA / GPU Clearance Length up to 340 mm
PSU Clearance Length up to 160 mm
Product Dimensions (L x W x H) 360 mm x 210 mm x 480 mm
Net Weight 6.3 kg (13.9 lbs)

Highlights

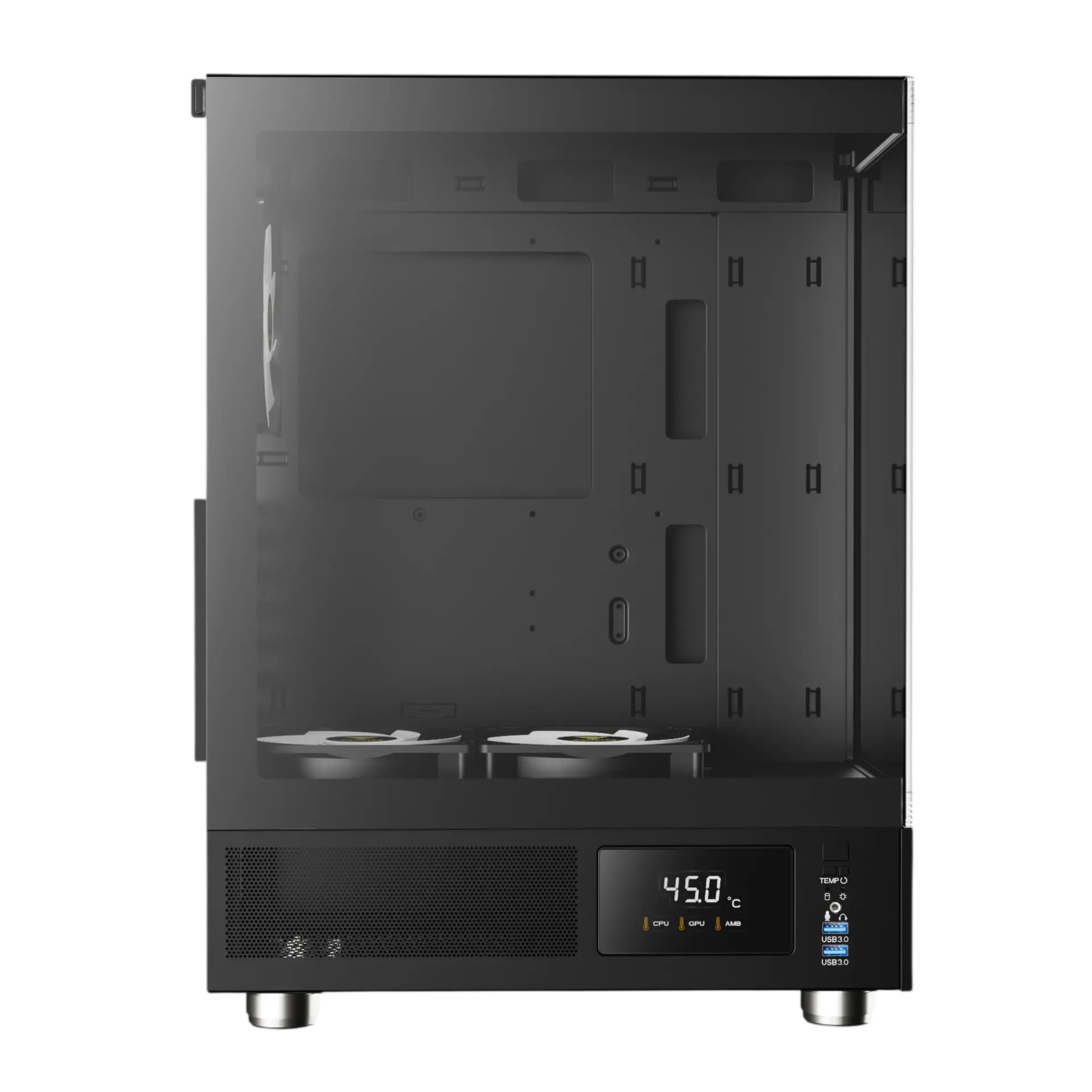

  • Real-Time Diagnostic Monitor: Embedded digital status display tracks live CPU, GPU, and ambient case temperatures via dedicated ZEUS CAST software integration.
  • On-the-Fly Display Controls: A dedicated monitor mode hardware switch on the I/O panel lets users seamlessly cycle between different hardware metrics or turn off the screen.
  • Columnless Viewport Design: Seamless front and left side tempered glass panels interface neatly without a bulky corner column, providing a panoramic window into your components.

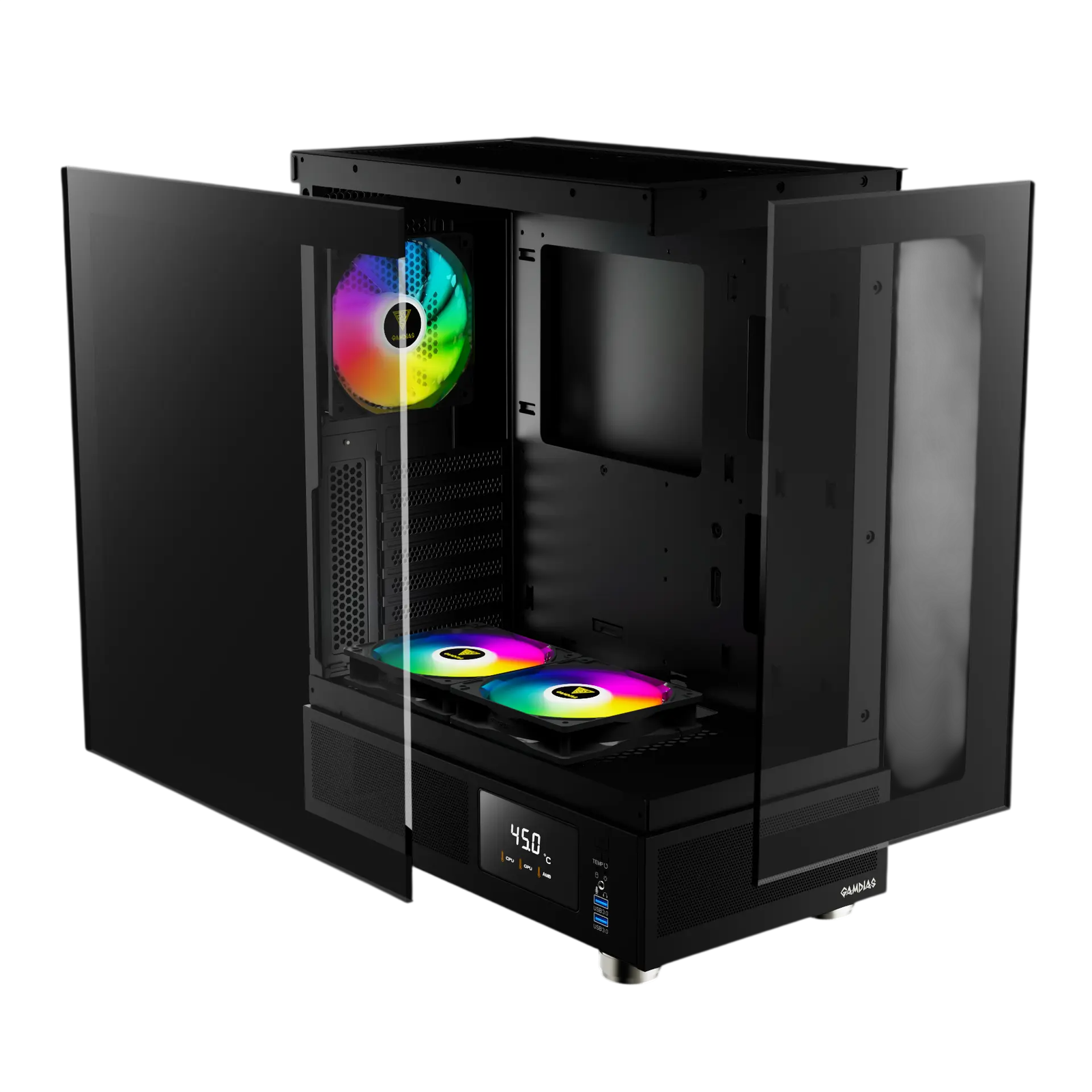

  • Tool-Free Clasp Mechanism: Structural glass features a secure clasp installation method that simplifies removal for trouble-free interior upgrades and maintenance.
  • Reverse Airflow Optimization: Two pre-installed 120mm reverse-blade bottom fans actively pull cool ambient air up through the perforated PSU shroud directly into your graphics card.
  • Powerful Ventilation Architecture: Perforated air vents carved into the top panel, lower power supply chamber, and side frames maintain steady internal static pressure.
  • Spacious Hardware Accommodation: Highly compact physical footprint that comfortably accommodates full-sized ATX motherboards and performance graphics cards up to 340mm long.
  • Smart Dynamic Cabling: Shipped with an angled 90° USB 3.0 motherboard header connector to promote clean line layouts and stress-free rear wire bundling.
Bring real-time performance analytics and striking panoptic style to your desk with the GAMDIAS ATLAS E1 Digital mid-tower case. By merging a columnless glass view, optimized reverse-airflow ARGB lighting, and an intelligent LCD hardware statistics tracker, it presents a feature-rich, space-efficient showcase for modern desktop builds.
