GAMDIAS

GAMDIAS ATLAS M1 DIGITAL

  • TYPE: Case
  • SKU: 4712960139565
Brand New
$90.00

Notify me when GAMDIAS ATLAS M1 DIGITAL - Default Title becomes available.

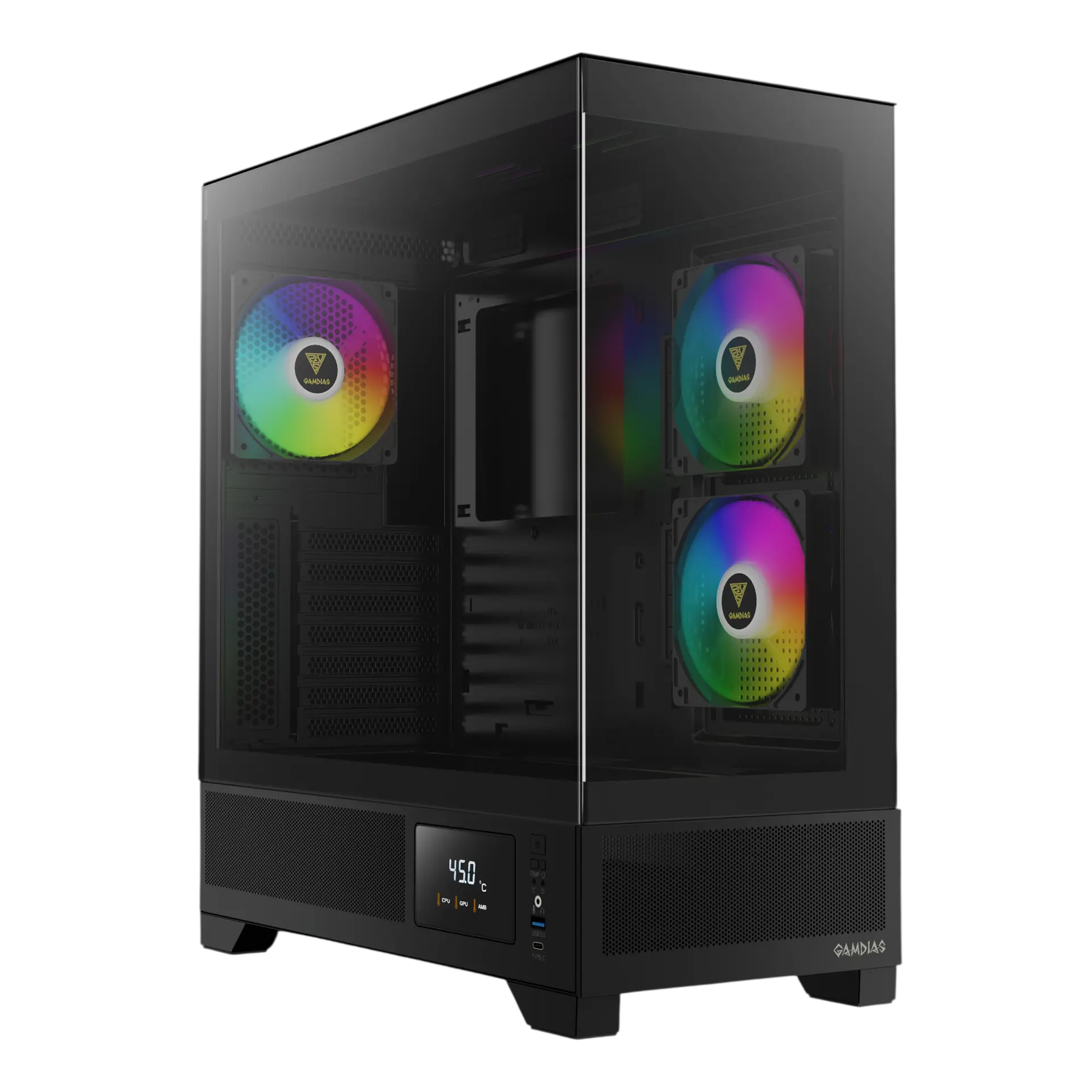

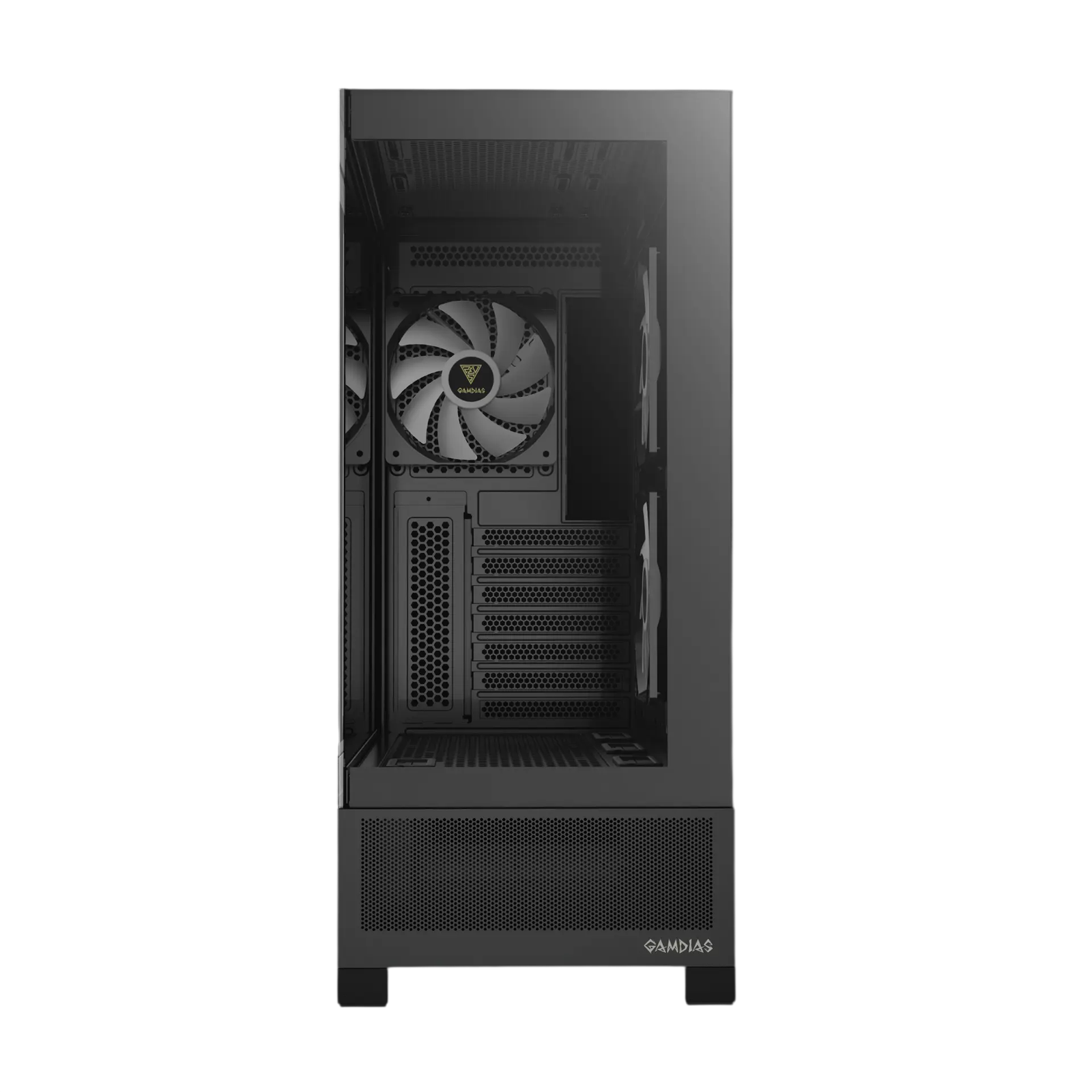

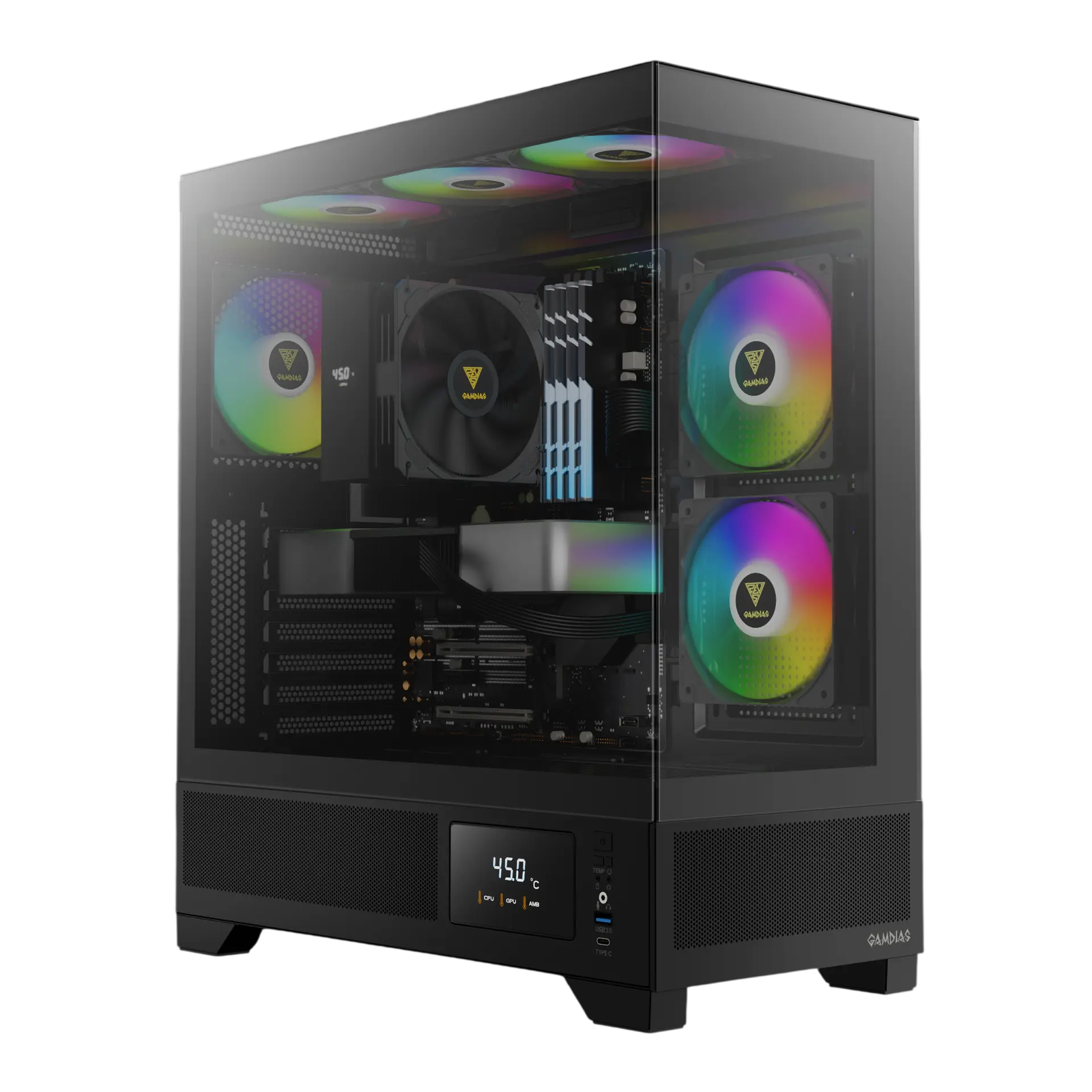

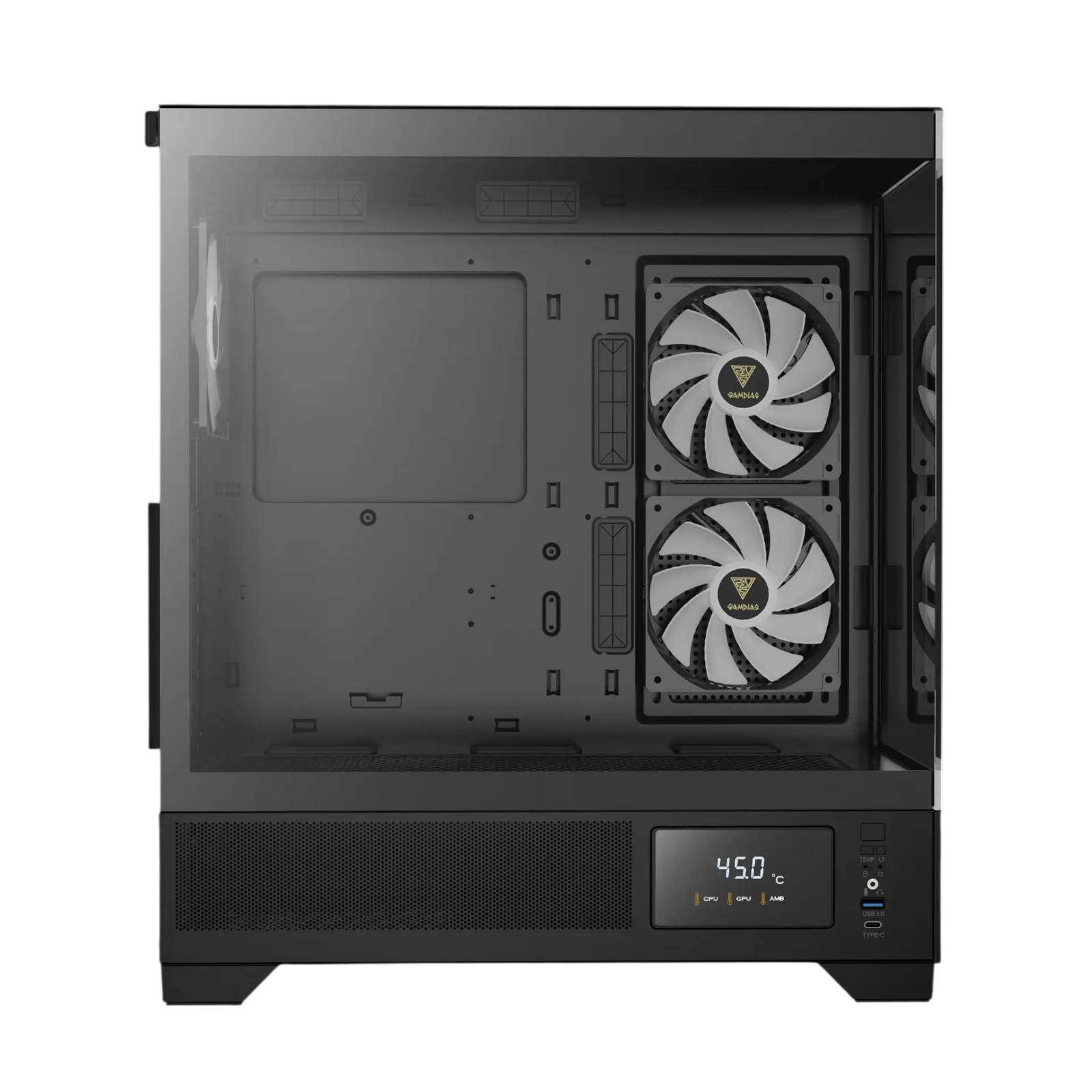

The GAMDIAS ATLAS M1 Digital introduces an intelligent, high-visibility approach to mid-tower desktop design. Featuring a dual-panel seamless tempered glass design across the front and left side, this enclosure offers a gorgeous corner-column-free view of your core system architecture. The signature highlight is a built-in digital status screen built directly onto the lower structure, delivering real-time metric tracking for your critical hardware. Pre-installed with three high-performance 120mm ARGB PWM fans (including two reverse-intake side fans) and an integrated 6-port fan controller, the ATLAS M1 Digital perfectly merges premium lifestyle aesthetics with enthusiast-level monitoring capabilities.

Case Form Factor
Mid-Tower
Net Weight
7.6 kg (16.7 lbs)
Brand
GAMDIAS
Series
ATLAS Series

Specifications

Brand GAMDIAS
Series ATLAS Series
Model ATLAS M1 (Digital Edition)
Case Form Factor Mid-Tower
Chassis Material SPCC Steel, ABS Plastic, & Tempered Glass
Color Matte Black
Motherboard Support ATX, Micro-ATX, Mini-ITX
Built-in Digital Display Real-time LCD panel (Monitors CPU, GPU, and Ambient temperatures)
Pre-Installed Fans Side: 2 x 120mm ARGB PWM Reverse Intake Fans Rear: 1 x 120mm ARGB PWM Exhaust Fan
Total Fan Capacity Up to 6 fans (Top: 3x 120mm or 2x 140mm, Side: 2x 120mm, Rear: 1x 120mm)
Radiator Support Top: 360mm or 280mm / Side: 240mm / Rear: 120mm
Expansion Slots 7 + 2 Vertical (Supports vertical graphics card configurations)
Drive Bays 2 x 3.5" or 1 x 2.5" + 1 x 3.5" (HDD Cage) / 2 x 2.5" (SSD Brackets)
Front/Top I/O Ports 1 x USB 3.2 Gen 2 Type-C (10Gbps), 1 x USB 3.0, 1 x HD Audio, 1 x LED Control Button, 1 x Monitor Mode Switch
Pre-Installed Fan Hub 6-Port PWM & 5V 3-Pin ARGB Hub (3 ports utilized out of the box)
CPU Cooler Clearance Up to 160 mm
VGA / GPU Clearance Length up to 410 mm (Ready for NVIDIA RTX 50/40 Series)
PSU Clearance Length up to 180 mm (Bottom ATX location)
Product Dimensions (L x W x H) 420 mm x 210 mm x 465 mm (16.5" x 8.3" x 18.3" inches)
Net Weight 7.6 kg (16.7 lbs)

Highlights

  • Embedded digital status monitor displays live CPU, GPU, and ambient case temperatures via dedicated ZEUS CAST hardware companion software
  • Dedicated physical I/O toggle switch allows you to seamlessly cycle between tracking modes or turn the digital display entirely off
  • Columnless panoramic tempered glass design wraps across the front and left side to eliminate corner structural blind spots

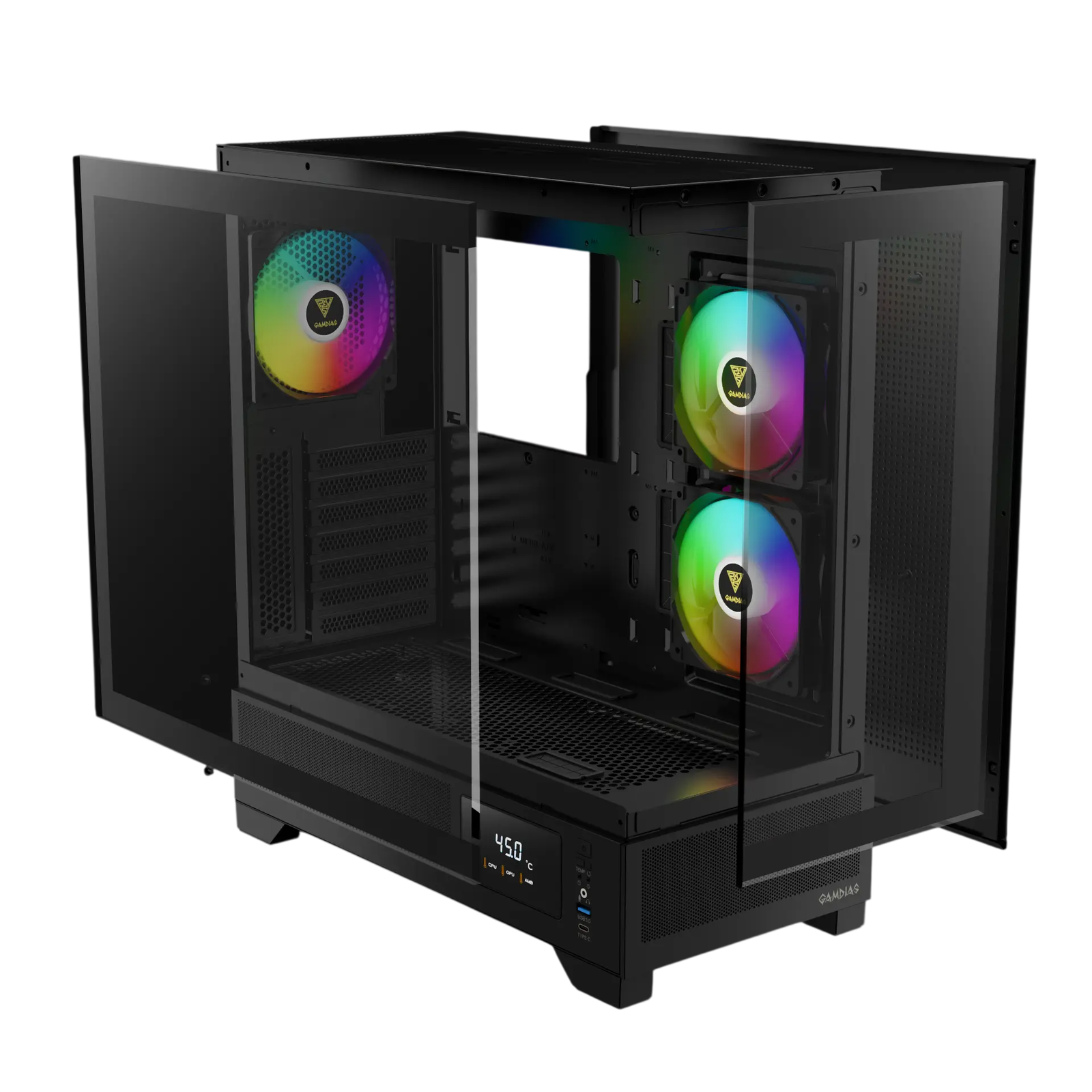

  • Tool-free clasp installation mechanism on the glass panels simplifies case entry for quick building adjustments and system cleaning
  • Three factory-equipped 120mm ARGB PWM fans feature dual side-mounted reverse blades that pull cool ambient air inward without hiding fan frames
  • Extended component space comfortably accommodates flagship graphics processing units up to 410mm long without structural crowding
  • Heavy-duty ventilation layout includes custom perforated air pathways across the PSU shroud, side frame, and rear paneling
  • Top-mounted liquid cooling compartment supports large 280mm or 360mm AIO loops for stable enthusiast overclocking thermal control
Bring elite real-time diagnostics and striking panoptic style to your battle station with the black GAMDIAS ATLAS M1 Digital mid-tower case. Outfitted with three premium ARGB PWM fans, a built-in LCD system statistics dashboard, and space for massive next-gen graphics cards, it presents a masterclass in custom PC showcase engineering.
