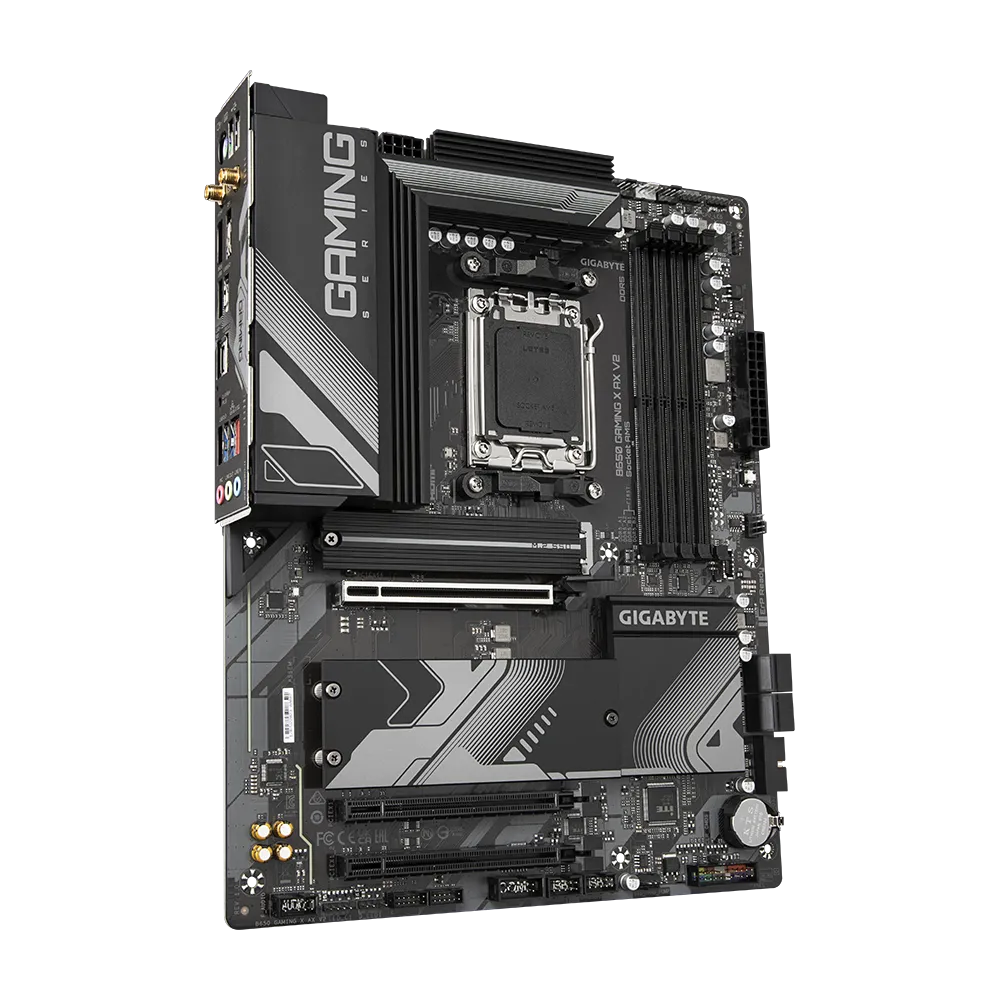

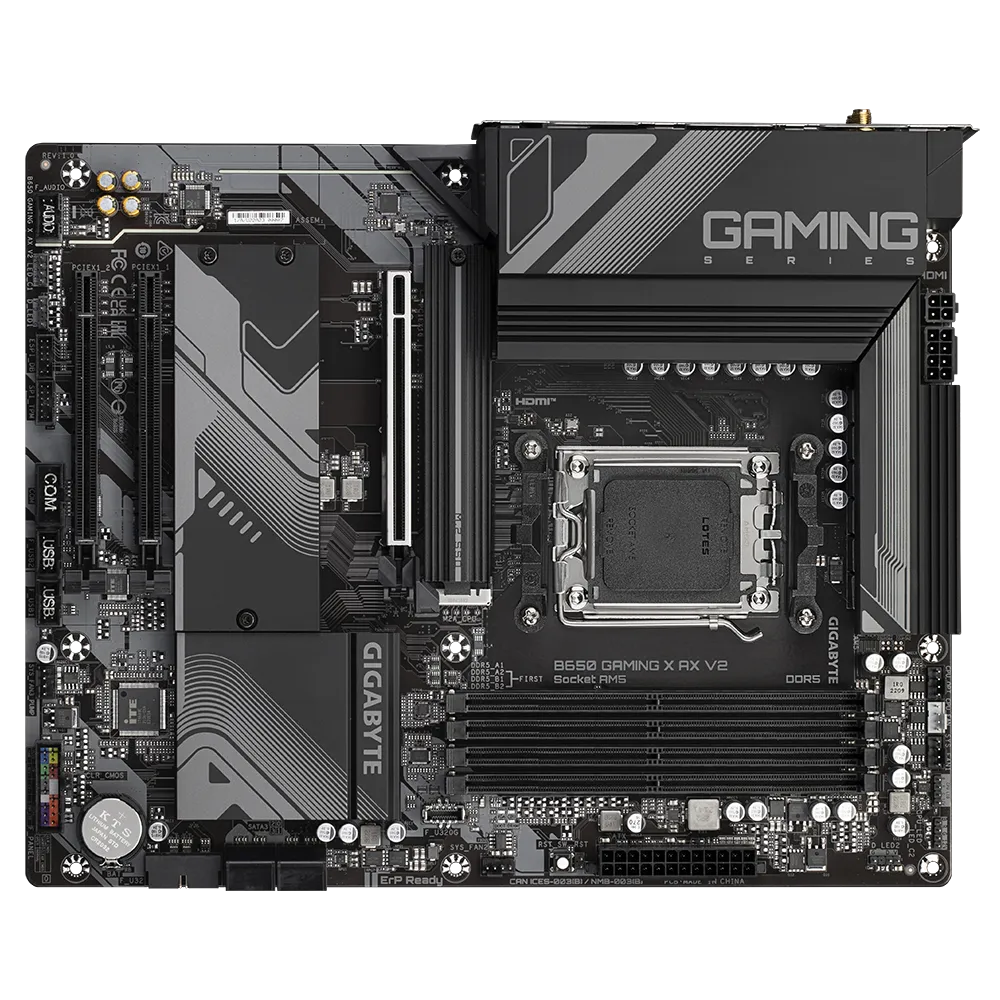

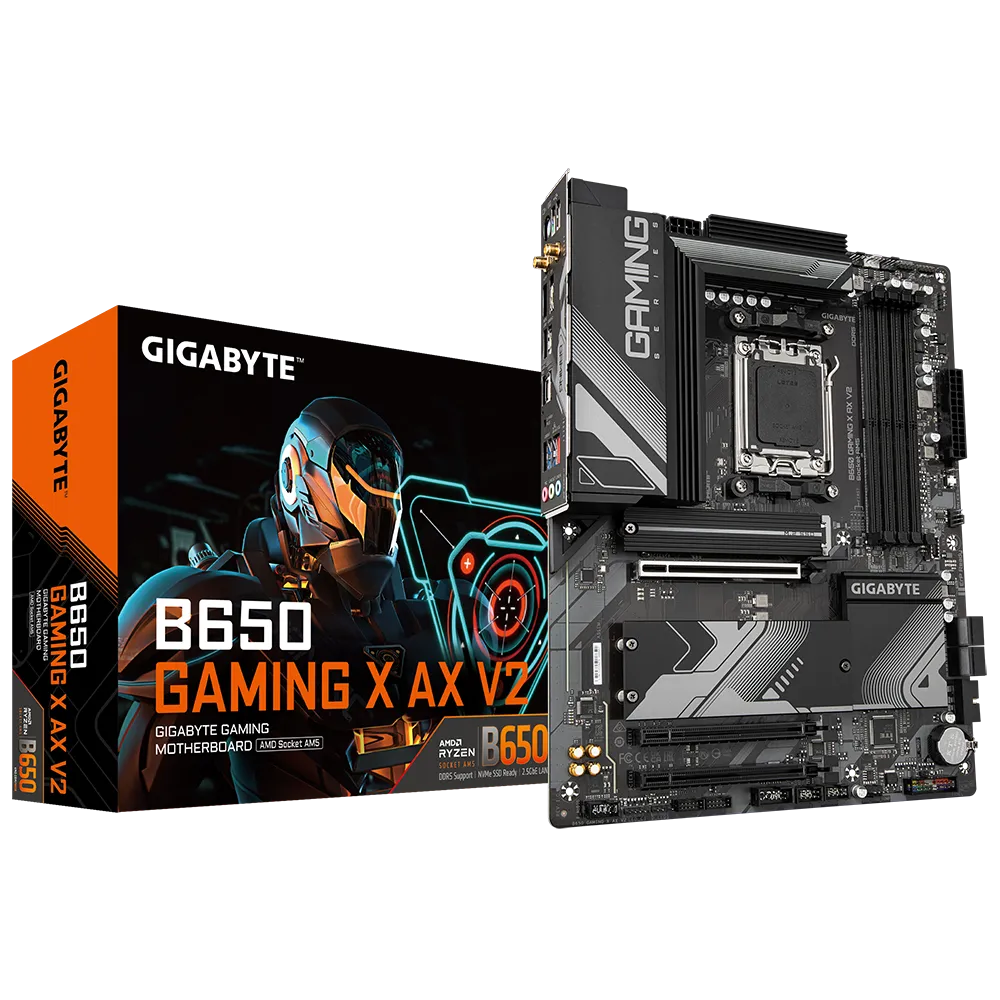

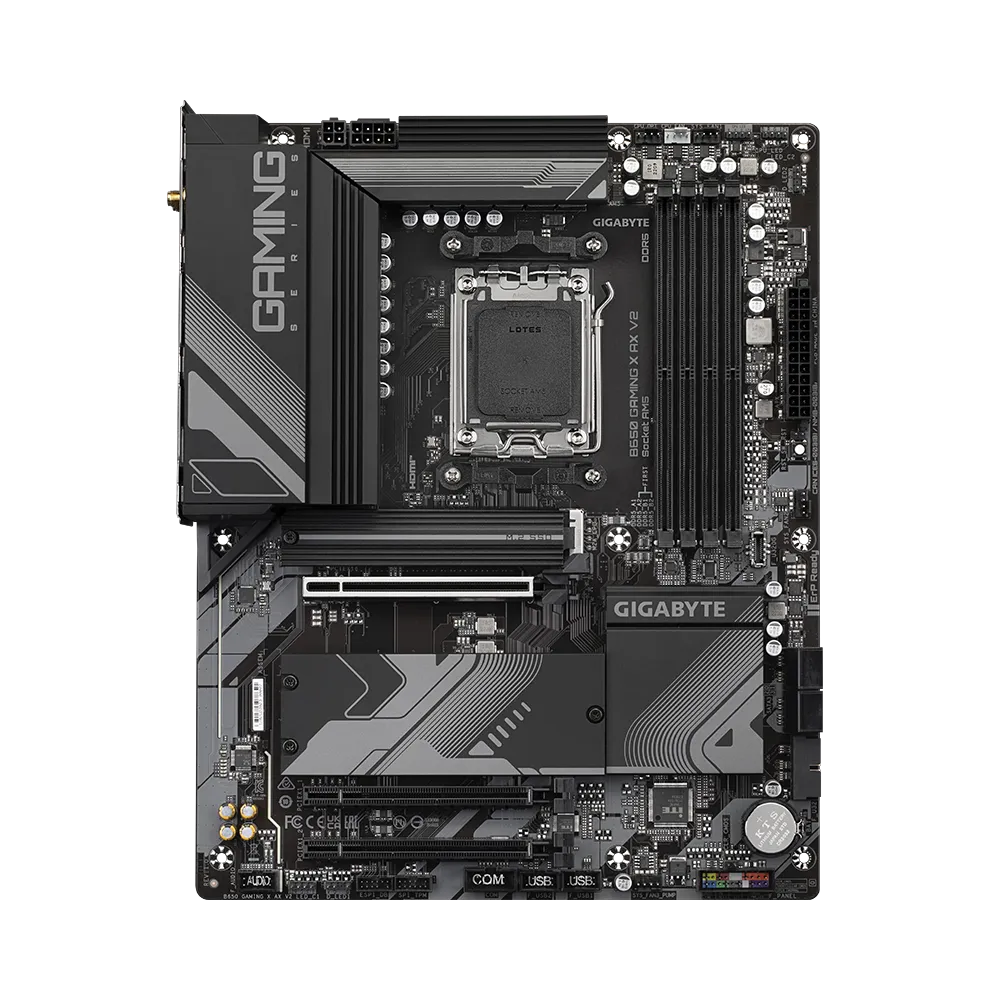

The GIGABYTE B650 GAMING X AX V2 is a robust ATX motherboard designed for AMD's latest Ryzen™ 7000, 8000, and 9000 Series processors. Featuring DDR5 support, PCIe 5.0 readiness, Wi-Fi 6E, and a comprehensive thermal design, it's built to meet the demands of modern gamers and PC enthusiasts.
| Model Name | GIGABYTE B650 GAMING X AX V2 |
| Form Factor | ATX (30.5cm x 24.4cm) |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| Supported CPUs | AMD Ryzen™ 7000 / 8000 / 9000 Series |
| Memory Support | 4x DDR5 DIMM slots, up to 192GB |
| Memory Speed Support | Up to 8000 MHz (OC), AMD EXPO™ & Intel® XMP support |
| Graphics Output | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| Expansion Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1 mode) |
| M.2 Slots | 1x PCIe 5.0 x4, 2x PCIe 4.0 x4 |
| SATA Ports | 4x SATA 6Gb/s |
| Wireless | Wi-Fi 6E (802.11ax), Bluetooth 5.3 |
| LAN | Realtek 2.5GbE LAN |

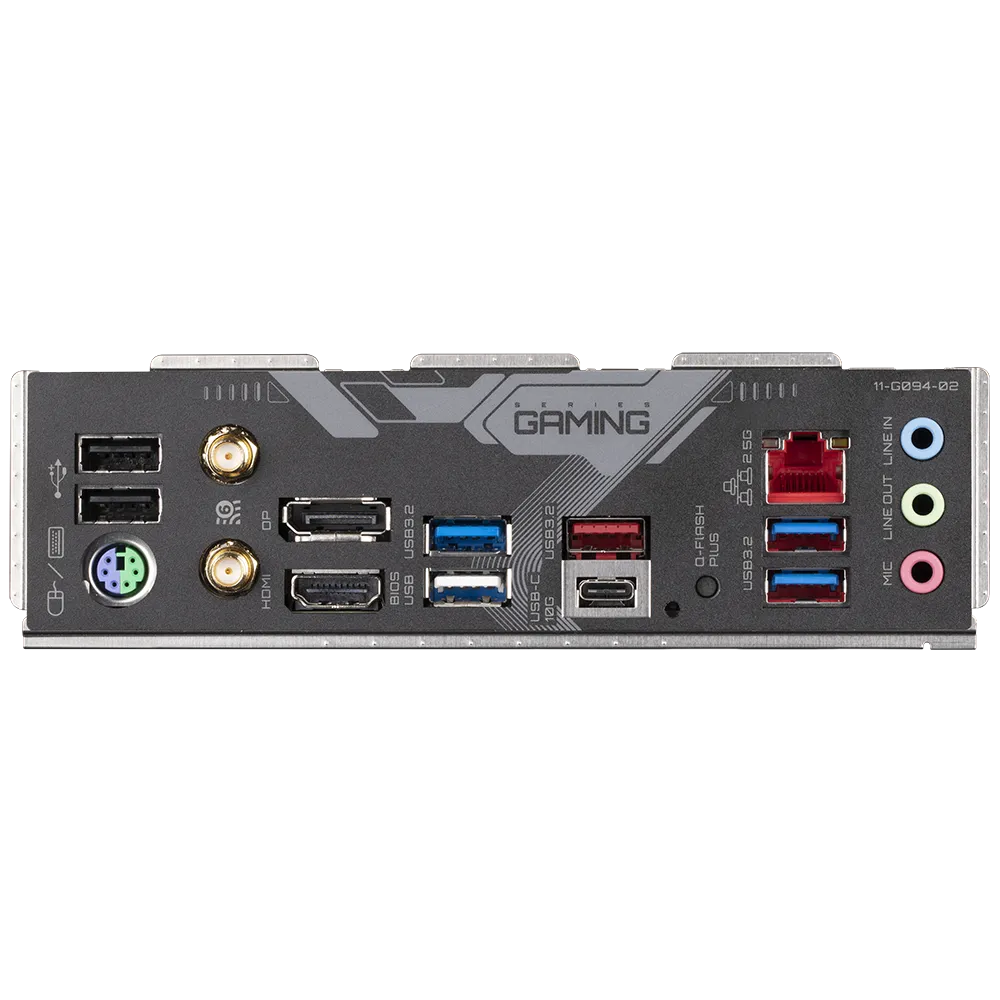

| USB Ports (Rear I/O) | 1x USB-C 10Gbps, 1x USB-C 5Gbps, 3x USB-A 5Gbps, 3x USB 2.0 |
| Internal USB Headers | Front USB-C 20Gbps, USB 3.2 Gen1, USB 2.0 |
| Audio | Realtek 7.1 Channel HD Audio (ALC897) |
| Cooling Features | Smart Fan 6, Fully Covered MOSFET Heatsinks, M.2 Thermal Guards |
| BIOS Features | Q-Flash Plus, Dual BIOS |
| EZ-Latch Support | For PCIe x16 Slot (tool-free design) |
| RGB & Sync | RGB FUSION 2.0, Addressable RGB Header |
All products—including Brand New, Open Box, and Used items—are subject to the same warranty conditions, inspection standards, and exclusions outlined in this policy.
Open Box and Used items receive the same manufacturing-defect coverage as Brand New items. However, they may have a shorter designated warranty period, as specified on the product page or purchase invoice.
Due to extreme grid-voltage fluctuations ranging from 180V to 250V, all systems, individual components, and electronic devices must be powered exclusively through a verified, high-quality Uninterruptible Power Supply (UPS).
Failures or damage caused by the following are strictly excluded:
These exclusions apply to products in all conditions, including Brand New, Open Box, and Used items.
Opening or disassembling any device—including user-accessible hardware such as custom PCs, pre-built PCs, laptops, graphics cards, and power supplies—will immediately void the warranty.
Breaking or removing any store or factory warranty seal will also void all coverage.
The following work must be performed exclusively by our technical service center:
Every individual hardware component installed inside the system is covered under its respective manufacturer’s warranty.
The system must remain connected to a verified, high-quality UPS at all times.
The overall system and component warranties will be voided if the customer:
Laptop warranty coverage includes manufacturing defects affecting:
Laptops must be charged using their original power adapters connected to a stable, surge-protected power source.
Laptop batteries and original charging adapters are covered against complete hardware failure for their specified warranty period.
Covered against manufacturing defects.
Warranty coverage is void if the processor:
Covered against manufacturing defects.
Warranty coverage excludes:
Covered against manufacturing defects.
The graphics card must be used with:
Warranty coverage is void if the graphics card has been:
Covered against manufacturing defects.
Warranty coverage excludes:
Covered against manufacturing defects affecting the controller or NAND storage.
Warranty coverage is void if:
Covered against internal component failure under standard operating conditions.
The following are not covered:
Standard LCD/IPS and OLED monitors require four or more dead or stuck pixels to qualify for warranty repair or replacement.
OLED panels include coverage for burn-in and image retention under normal usage conditions, provided that all built-in panel-care and protection features remain enabled.
The following are strictly excluded:
Air coolers are covered exclusively under Dead on Arrival (DOA) terms. Any issue must be reported within 48 hours of delivery.
Liquid coolers are covered for:
Coverage applies only when the unit has been installed according to the manufacturer’s official guidelines and has not been modified or mounted with excessive hose tension.
Keyboards, mice, and headsets are covered against internal hardware and connectivity defects arising under normal operating conditions.
Coverage excludes:
UPS units are covered against manufacturing defects affecting:
Coverage applies for the specified warranty period.
The following products are covered exclusively under Dead on Arrival (DOA) terms and must be inspected and reported within 48 hours of delivery:
Issues reported after the 48-hour period will not qualify for warranty service unless otherwise stated on the product page or invoice.
Mouse pads are classified as consumable products and are sold with no warranty coverage.
| Device | White | Black | Red | Green |
|---|---|---|---|---|
| Chair | 14-14.5 | 15-15.5 | 16-16.5 | 17-17.5 |
| Moniter | 14-14.5 | 15-15.5 | 16-16.5 | 17-17.5 |
| Keycaps | 14-14.5 | 15-15.5 | 16-16.5 | 17-17.5 |
| CPU | 14-14.5 | 15-15.5 | 16-16.5 | 17-17.5 |
| Mouse | 14-14.5 | 15-15.5 | 16-16.5 | 17-17.5 |
