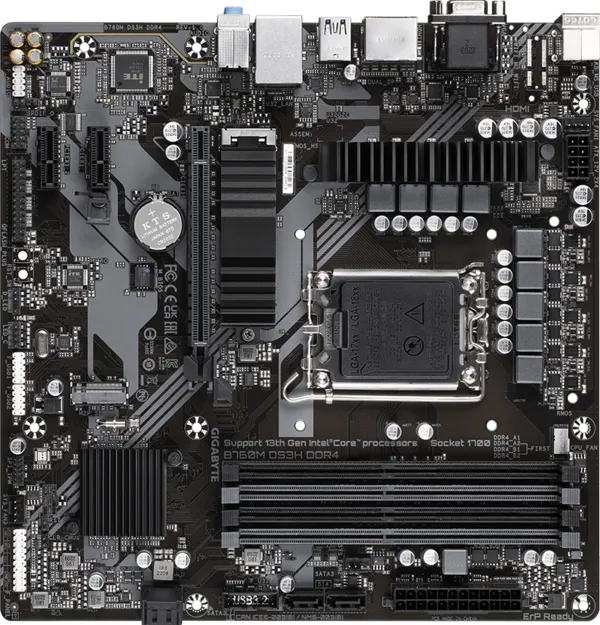

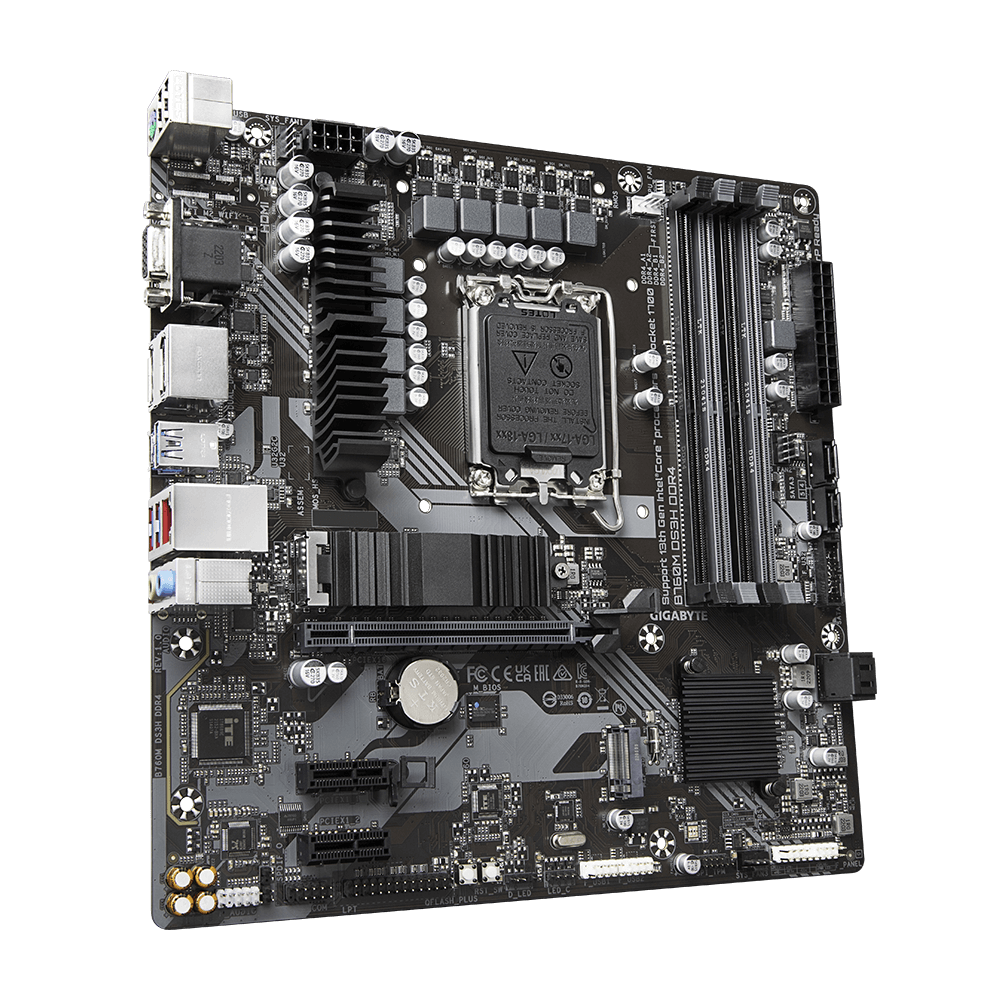

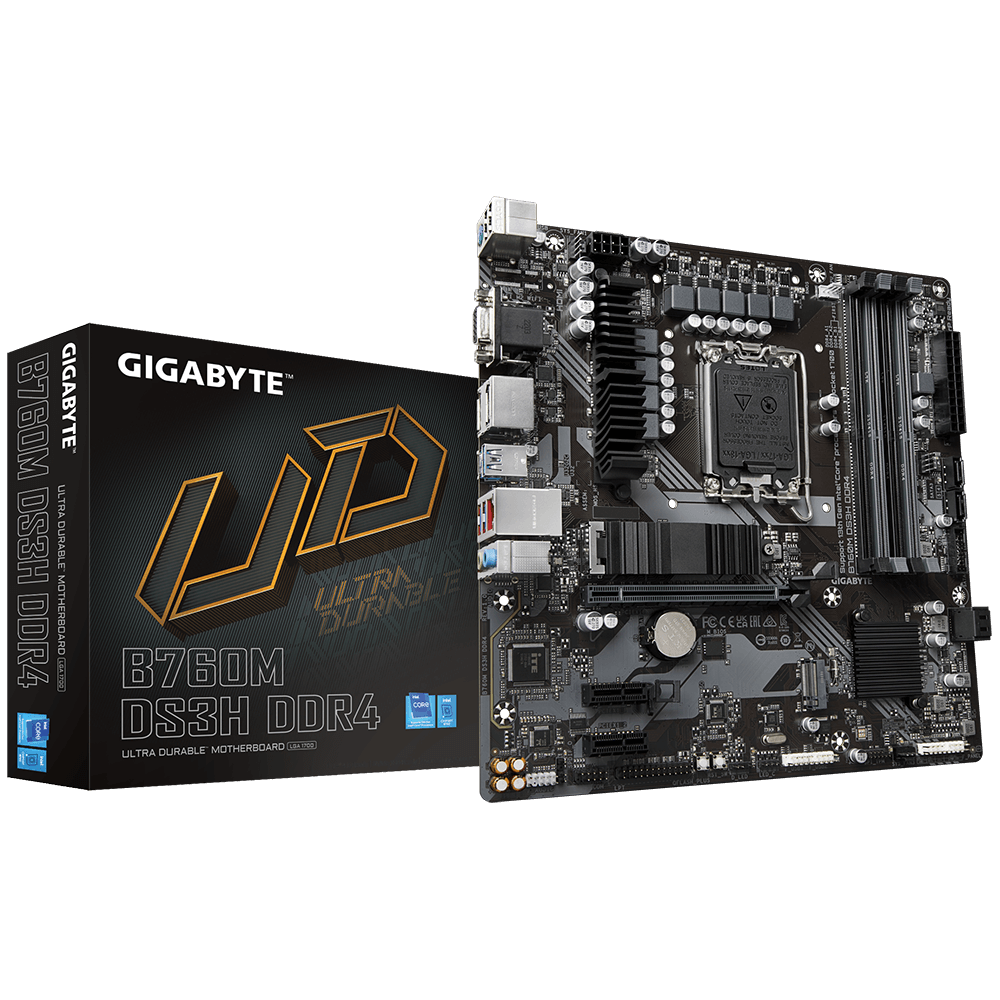

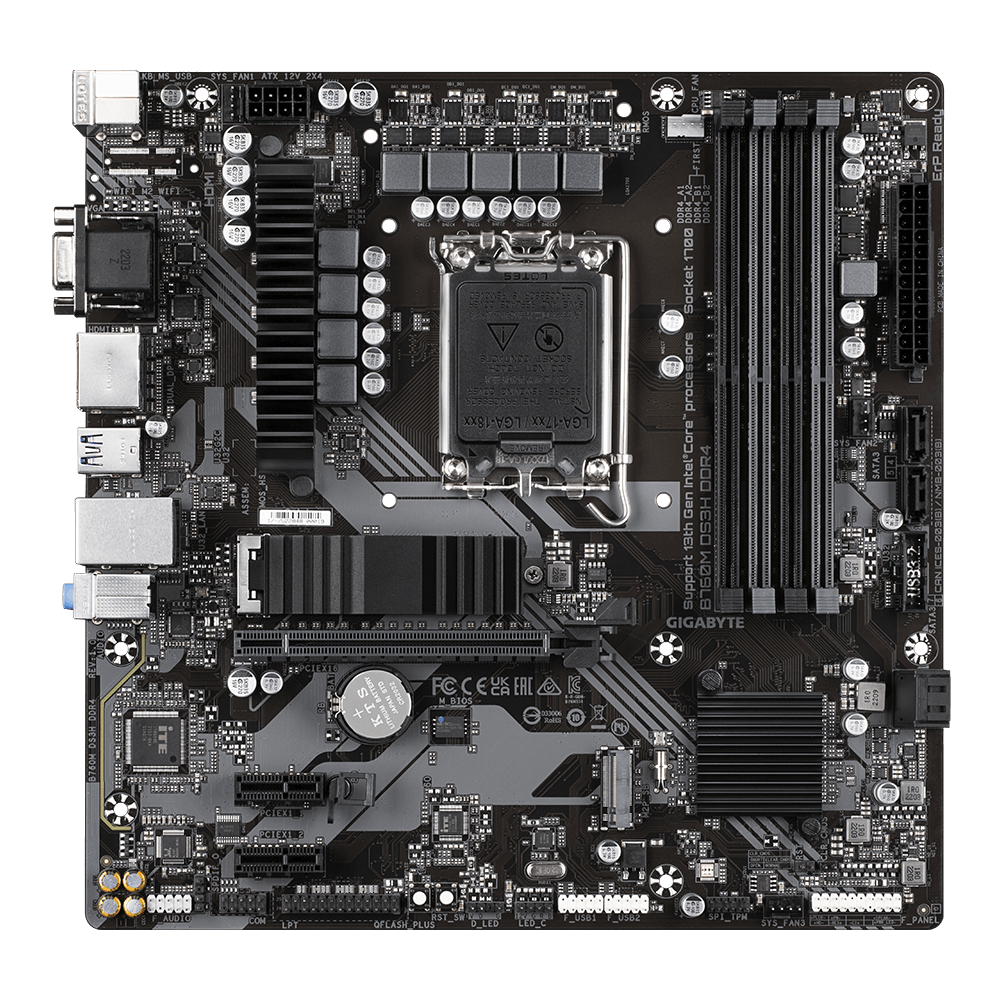

The GIGABYTE B760M DS3H DDR4 is a Micro-ATX motherboard engineered for Intel's 12th, 13th, and 14th Gen Core processors. Offering DDR4 memory support, PCIe 4.0 connectivity, and a robust power design, it's an excellent choice for budget-conscious builders seeking performance and reliability.

CPU Socket
LGA 1700
Chipset
Intel B760
Form Factor
Micro-ATX (24.4cm x 24.4cm)
Memory Support
4x DDR4 DIMM slots, up to 128GB

Specifications

Model Name GIGABYTE B760M DS3H DDR4
Form Factor Micro-ATX (24.4cm x 24.4cm)
CPU Socket LGA 1700
Chipset Intel B760
Supported CPUs Intel 12th / 13th / 14th Gen Core, Pentium Gold, and Celeron
Memory Support 4x DDR4 DIMM slots, up to 128GB
Memory Speed Support Up to 5333 MHz (OC), Intel XMP support
Graphics Output 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
M.2 Slots 2x PCIe 4.0 x4
SATA Ports 4x SATA 6Gb/s
LAN Realtek 2.5GbE LAN

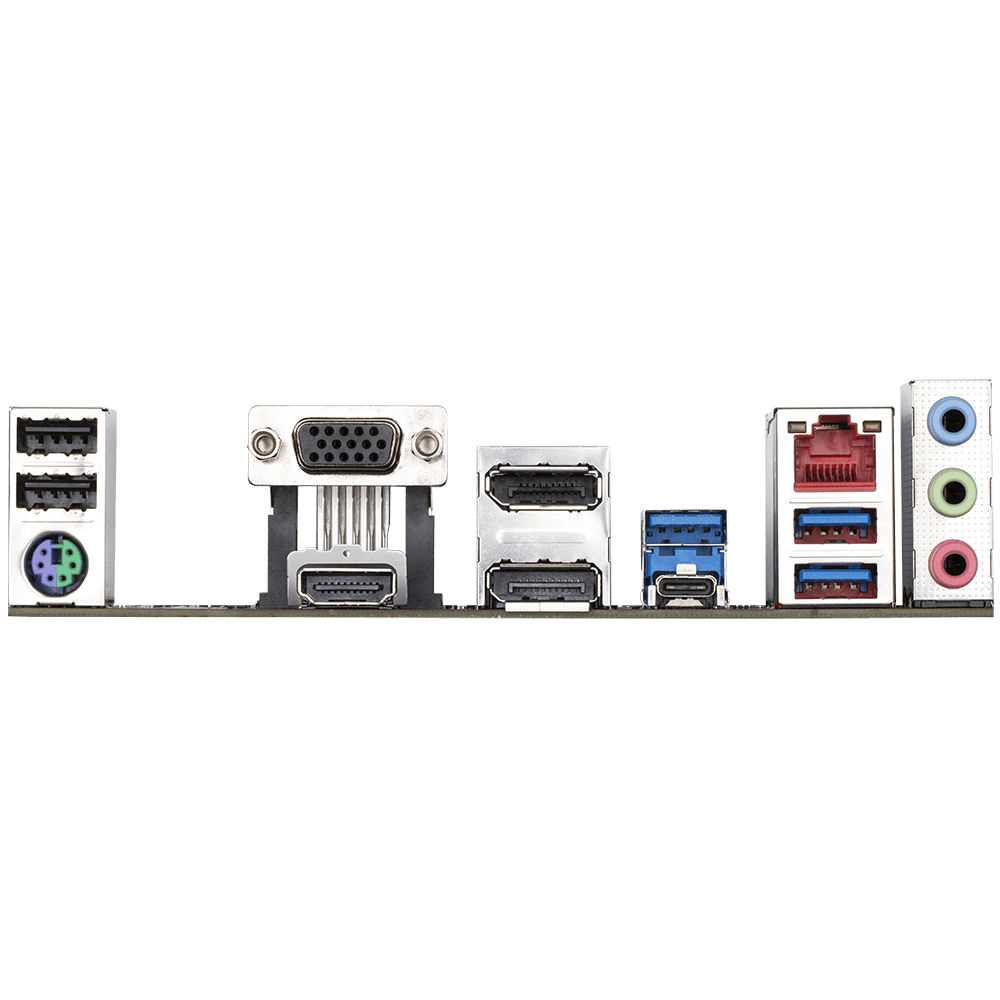

USB Ports (Rear I/O) 1x USB-C 10Gbps, 3x USB-A 5Gbps, 4x USB 2.0
Internal USB Headers USB 3.2 Gen1, USB 2.0
Audio Realtek 7.1 Channel HD Audio (ALC897)
Cooling Features Smart Fan 6, M.2 Thermal Guard
BIOS Features Q-Flash Plus, Dual BIOS
EZ-Latch Support For PCIe x16 Slot (tool-free design)
RGB & Sync RGB FUSION 2.0, Addressable RGB Header

Highlights

  • PCIe 4.0 Ready : Equipped with one PCIe 4.0 x16 slot and two PCIe 4.0 x4 M.2 slots for high-speed graphics and storage solutions.
  • High-Speed DDR4 Support : Supports DDR4 memory up to 5333 MHz (OC) with Intel XMP profiles for optimized performance.
  • Advanced Thermal Design : Features M.2 Thermal Guard and Smart Fan 6 technology to ensure efficient heat dissipation.
  • 2.5GbE LAN : Provides high-speed wired networking for seamless online experiences.
  • Q-Flash Plus & EZ-Latch : Allows BIOS updates without CPU or memory installation and easy component swaps with tool-free design.
  • RGB Fusion 2.0 : Offers customizable lighting effects to personalize your gaming setup.
Build a powerful and efficient PC with the GIGABYTE B760M DS3H DDR4 motherboard. Featuring support for Intel's latest processors, high-speed DDR4 memory, PCIe 4.0 slots, and advanced thermal solutions, it's the perfect foundation for your next build.
