GIGABYTE

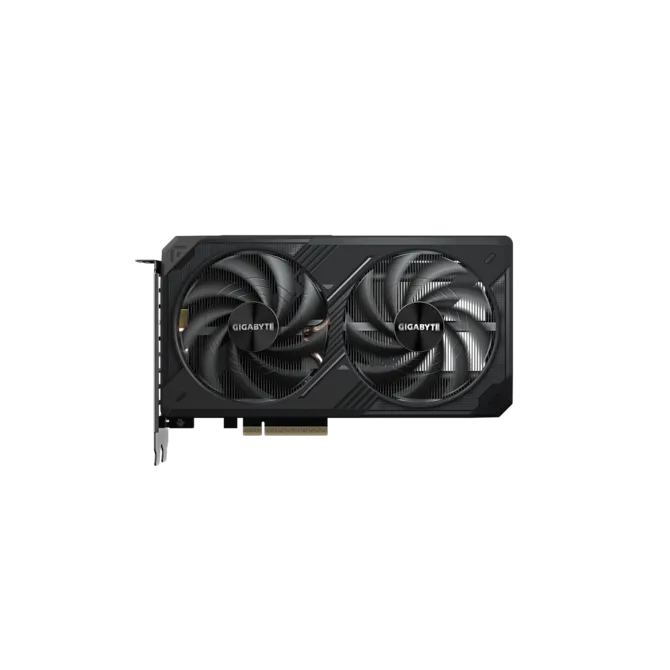

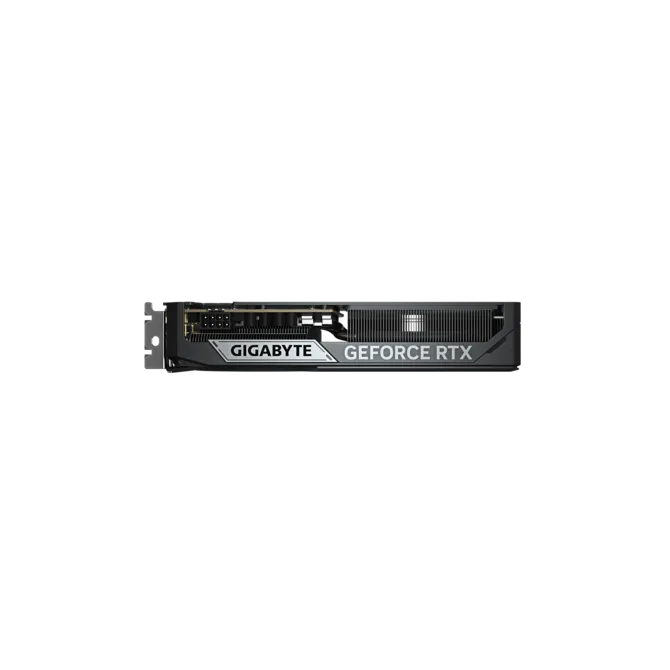

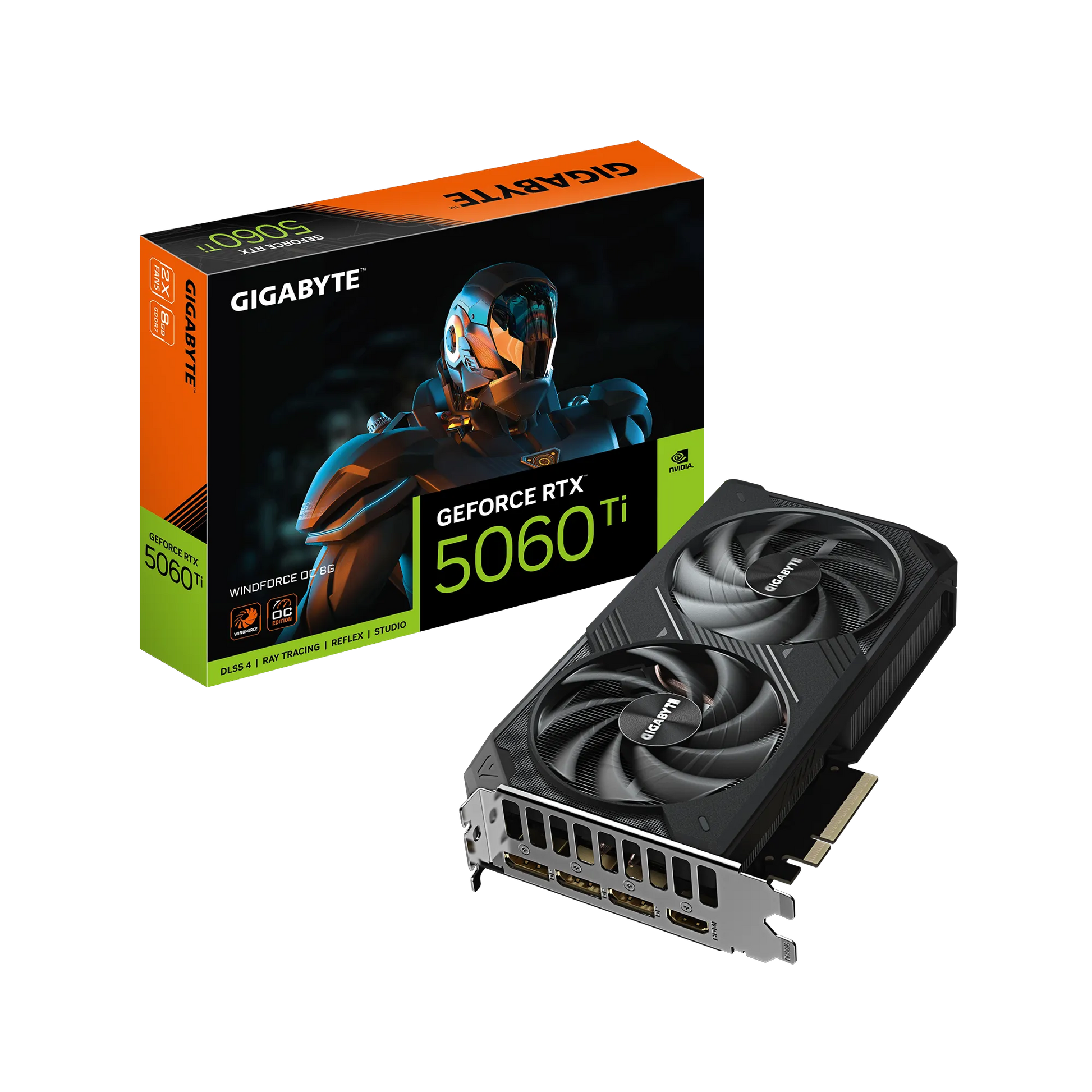

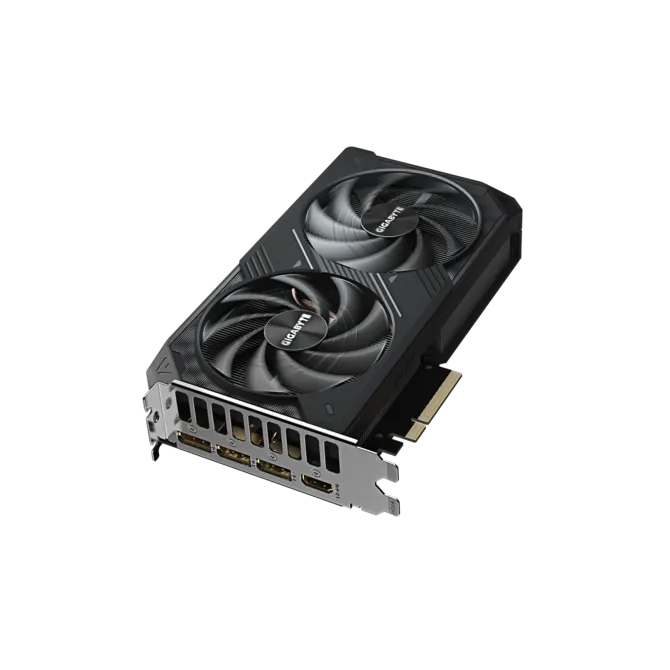

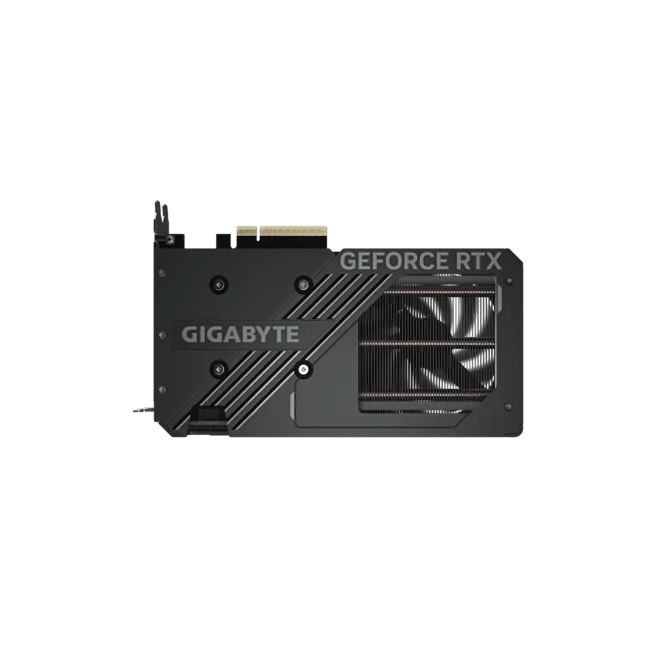

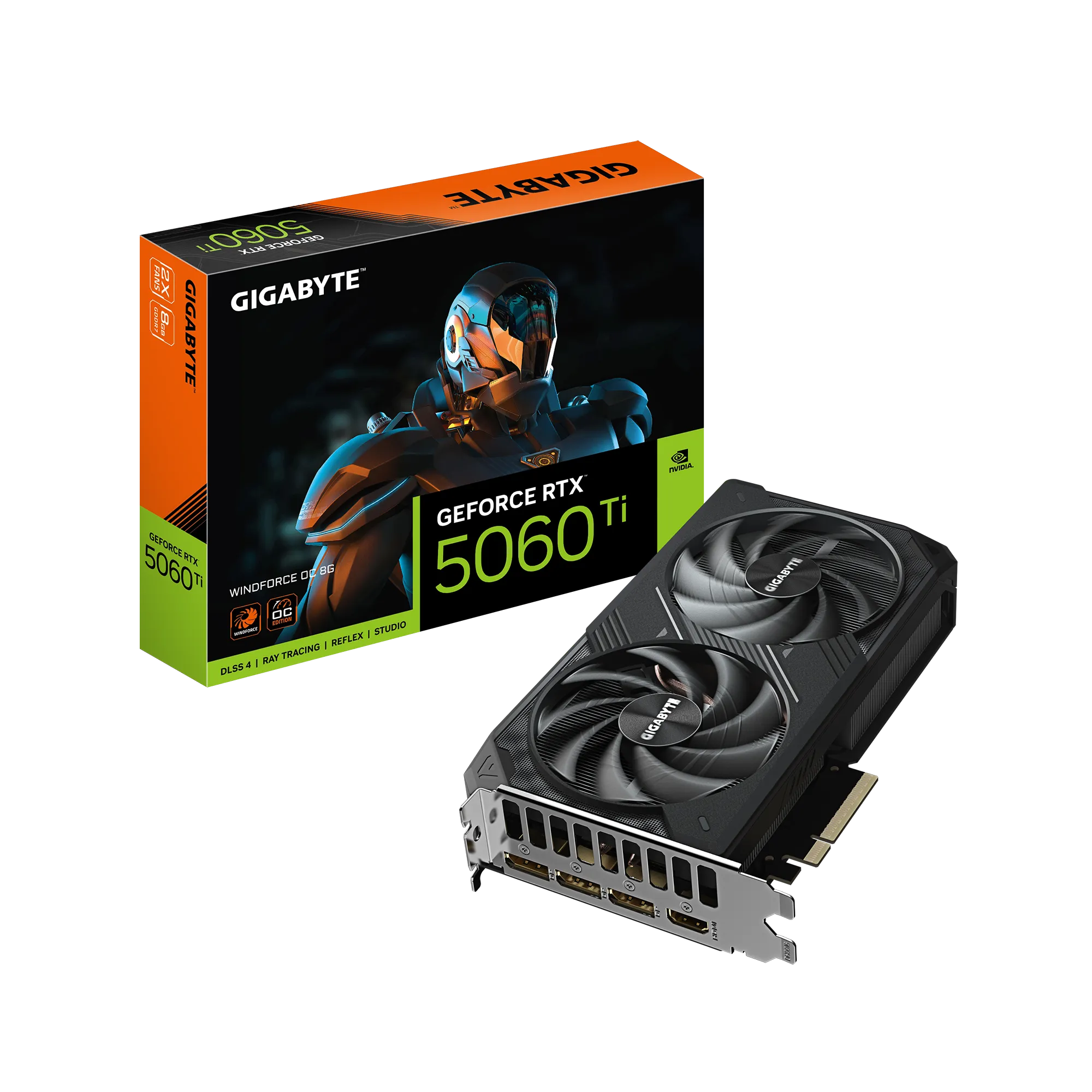

GIGABYTE GEFORCE RTX 5060 TI 8GB WINDFORCE OC - BLACK

  • TYPE: Graphics Card
  • SKU: 4719331356316
Brand New1 Year Warranty
$600.00

Notify me when GIGABYTE GEFORCE RTX 5060 TI 8GB WINDFORCE OC - BLACK - Default Title becomes available.

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC Edition delivers exceptional next-generation graphics performance wrapped in a stealthy, minimalist all-black design. Powered by the groundbreaking NVIDIA Blackwell architecture and equipped with high-speed GDDR7 memory, this graphics card is factory overclocked to dominate high-refresh-rate 1080p and 1440p gaming, real-time ray tracing, and AI-accelerated workflows. Featuring a compact dual-fan WINDFORCE cooling system, it eliminates performance bottlenecks and thermal throttling while fitting seamlessly into a wide variety of desktop configurations.

Memory Size
8 GB
Interface
PCI Express 5.0 x16 (runs at x8)
Graphics Chipset
NVIDIA GeForce RTX 5060 Ti
Power Consumption (TDP)
160 W

Specifications

Brand GIGABYTE
Series WINDFORCE OC Series
Model GV-N506TWF2OC-8GD
Graphics Chipset NVIDIA GeForce RTX 5060 Ti
Architecture Blackwell
Core Clock 2535 MHz (Reference: 2430 MHz)
CUDA Cores 4608
Tensor Cores 144 (5th Generation)
Ray Tracing Cores 36 (4th Generation)
Memory Size 8 GB
Memory Type GDDR7
Memory Bus 128-bit
Memory Speed 28 Gbps
Interface PCI Express 5.0 x16 (runs at x8)
Digital Max Resolution 7680 x 4320 (8K UHD)
Multi-Monitor Support Up to 4 displays
Video Outputs 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Power Consumption (TDP) 160 W
Recommended PSU 550 W
Power Connectors 1 x 8-pin PCIe or 16-pin (12V-2x6 variant)
Card Dimensions (L x W x H) 240 mm x 120 mm x 40 mm
Slot Width 2.0 Slots

Highlights

  • Powered by the cutting-edge NVIDIA Blackwell architecture with native support for DLSS 4 neural rendering and advanced Multi Frame Generation
  • Sleek matte black shroud with a matching reinforced protection backplate easily integrates into any classic or dark-themed build
  • WINDFORCE cooling system features dual aerodynamic unique blade fans that rotate alternately to minimize air turbulence and maximize down pressure
  • Integrated semi-passive 3D Active Fan design turns off the cooling array during low-load tasks to achieve completely silent operation
  • Premium server-grade thermal conductive gel replaces traditional pads on critical VRAM and MOSFET components for superior long-term reliability
  • Ultra Durable certified components include solid choke cores and lower ESR solid capacitors to guarantee extended component life
  • Screen cooling design extends the backplate to allow airflow to pass completely through the heatsink, significantly increasing heat dissipation
  • High-bandwidth DisplayPort 2.1b and HDMI 2.1b video output standards provide complete readiness for high-refresh-rate 4K and 8K displays
Elevate your desktop performance and framing efficiency with the GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC Edition. Armed with 8GB of rapid GDDR7 memory, an optimized dual-fan cooling layout, and next-gen DLSS 4 support, it provides uncompromised fluidity for mainstream enthusiasts and creators.
