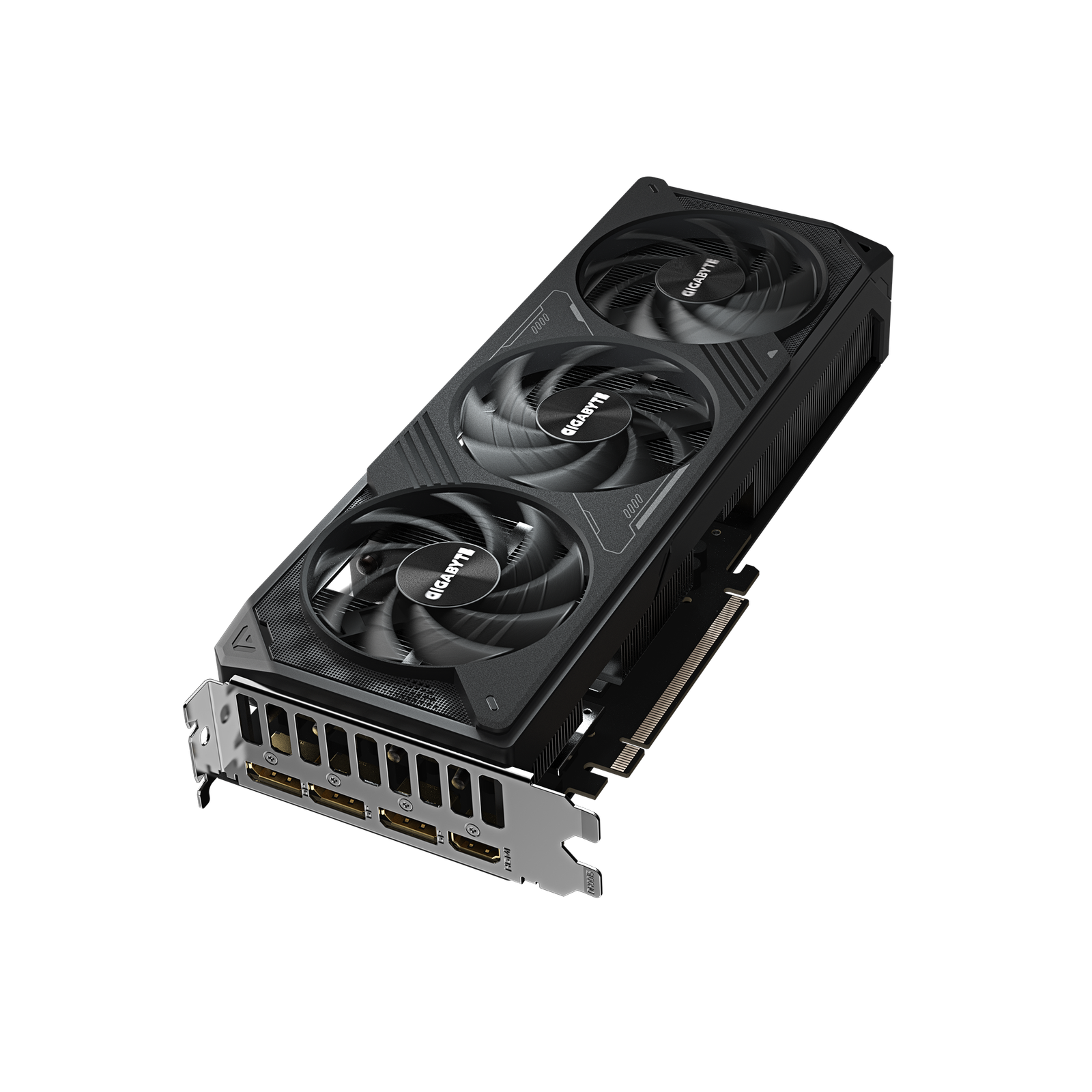

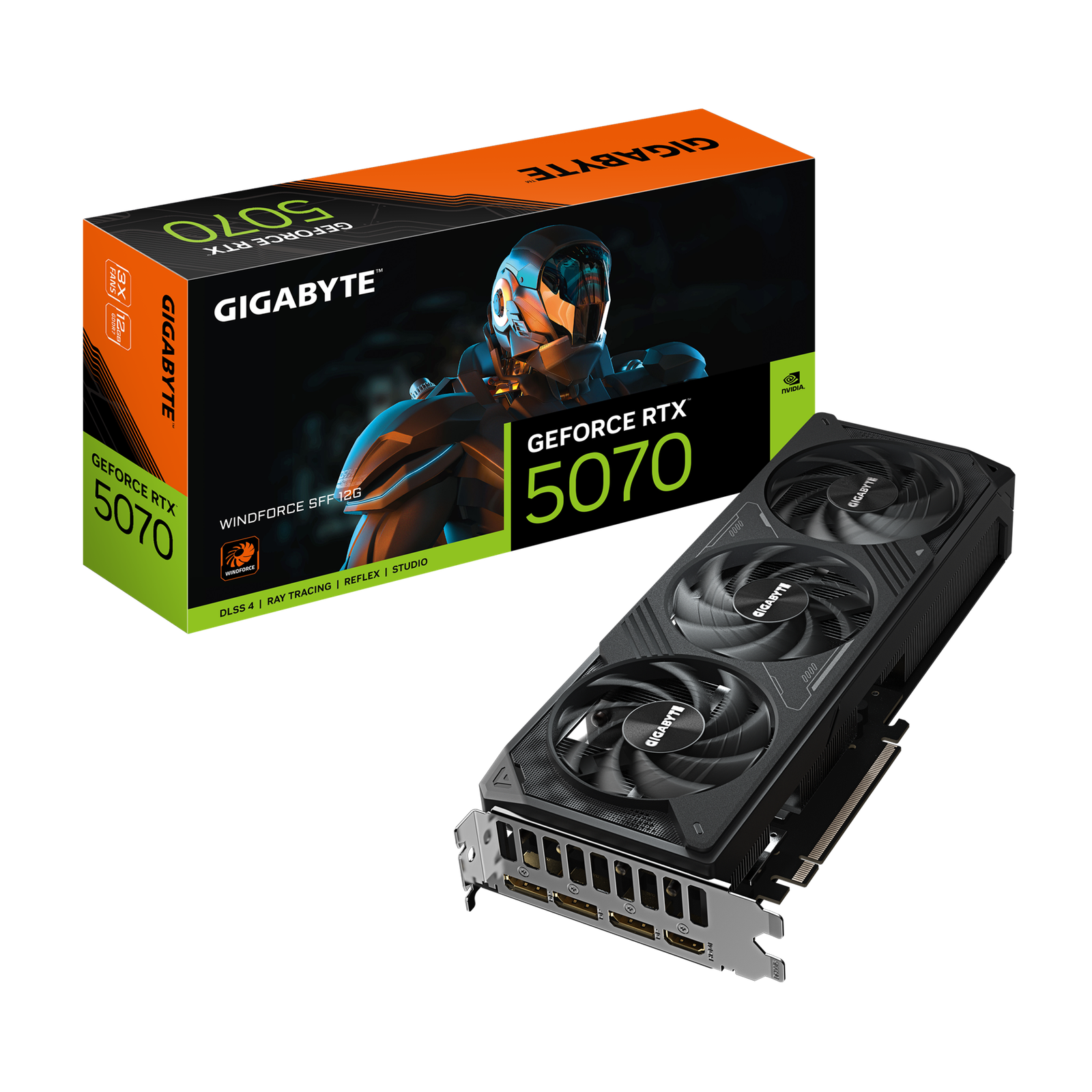

GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF

  • TYPE: Graphics Card
  • SKU: 4719331356132
Brand New1 Year Warranty
$980.00
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF
GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF

Notify me when GIGABYTE GEFORCE RTX 5070 12GB WINDFORCE SFF - Default Title becomes available.

The GIGABYTE GeForce RTX 5070 WINDFORCE SFF provides massive graphics performance in an ultra-compact, space-saving design. Built on the next-generation NVIDIA Blackwell architecture and featuring 12GB of ultra-fast GDDR7 memory, this graphics card is engineered to handle immersive 4K gaming, pro-grade AI acceleration, and complex 3D rendering. Complying directly with NVIDIA’s Small Form Factor (SFF) guidelines, its streamlined 2.5-slot profile fits seamlessly into compact ITX chassis while a custom triple-fan WINDFORCE cooling system guarantees optimal thermal stability without acoustic compromise.

Memory Size
12 GB
Interface
PCI Express 5.0 x16
Graphics Chipset
NVIDIA GeForce RTX 5070
Power Connectors
1 x 16-pin (12V-2x6)

Specifications

Brand GIGABYTE
Series WINDFORCE Series
Model GV-N5070WF3-12GD
Graphics Chipset NVIDIA GeForce RTX 5070
Architecture Blackwell
Core Clock 2512 MHz
CUDA Cores 6144
Tensor Cores 192 (5th Generation)
Ray Tracing Cores 48 (4th Generation)
Memory Size 12 GB
Memory Type GDDR7
Memory Bus 192-bit
Memory Speed 28 Gbps
Interface PCI Express 5.0 x16
Digital Max Resolution 7680 x 4320 (8K UHD)
Multi-Monitor Support Up to 4 displays
Video Outputs 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Form Factor Compliance NVIDIA SFF-Ready
Recommended PSU 750 W
Power Connectors 1 x 16-pin (12V-2x6)
Card Dimensions (L x W x H) 282 mm x 110 mm x 50 mm
Slot Width 2.5 Slots

Highlights

  • Powered by the cutting-edge NVIDIA Blackwell architecture featuring DLSS 4 neural rendering and advanced Multi Frame Generation technology
  • NVIDIA SFF-Ready layout matches stringent space constraints, making it perfect for Mini-ITX systems and small form factor custom builds

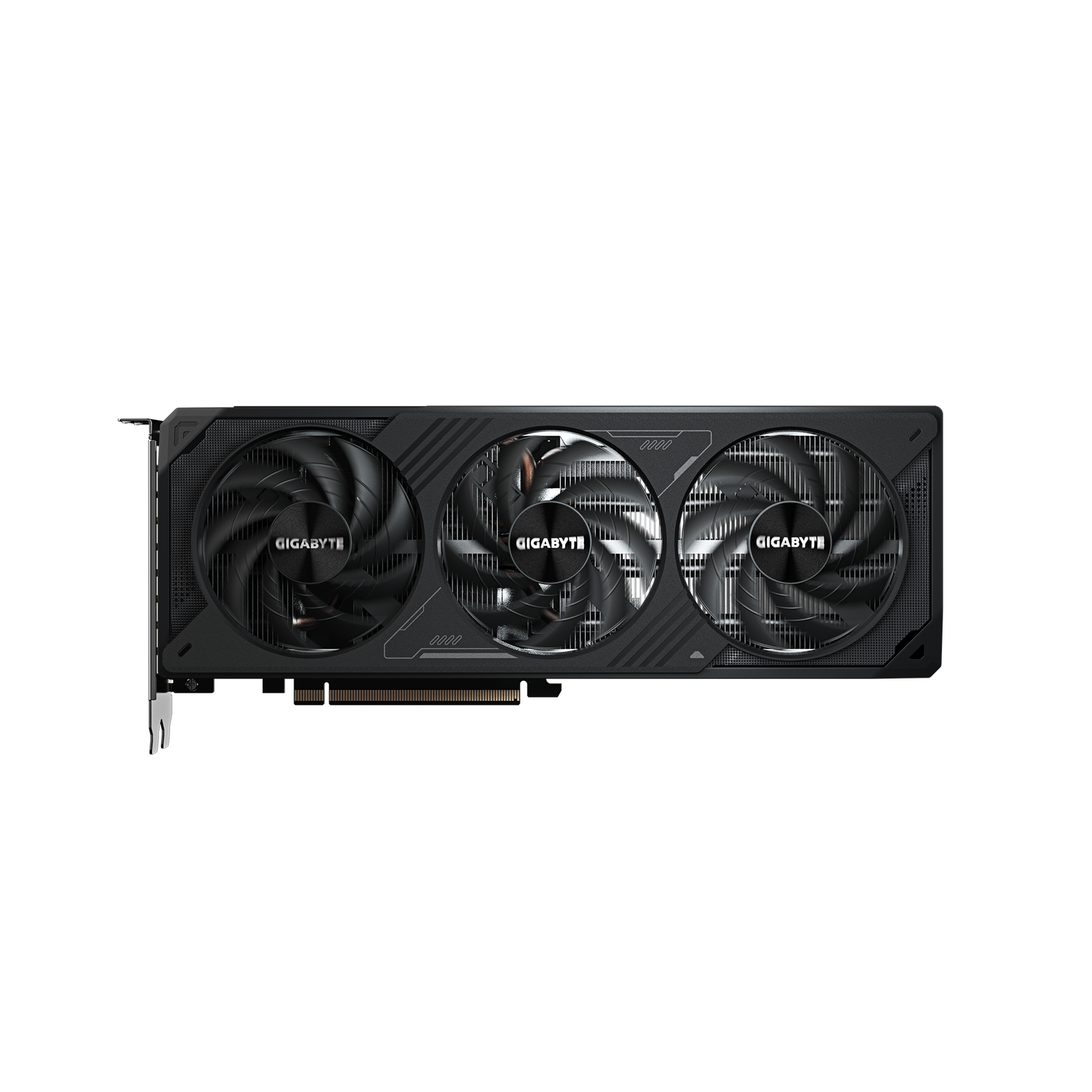

  • Specialized WINDFORCE cooling system incorporates three alternate spinning Hawk Fans to optimize downward static pressure and minimize air turbulence
  • Integrated semi-passive 3D Active Fan mechanism keeps the cooling array silent by completely disabling the fans during low-load operations
  • Premium server-grade thermal conductive gel applied to critical VRAM and MOSFET components for enhanced structural resilience and better dissipation

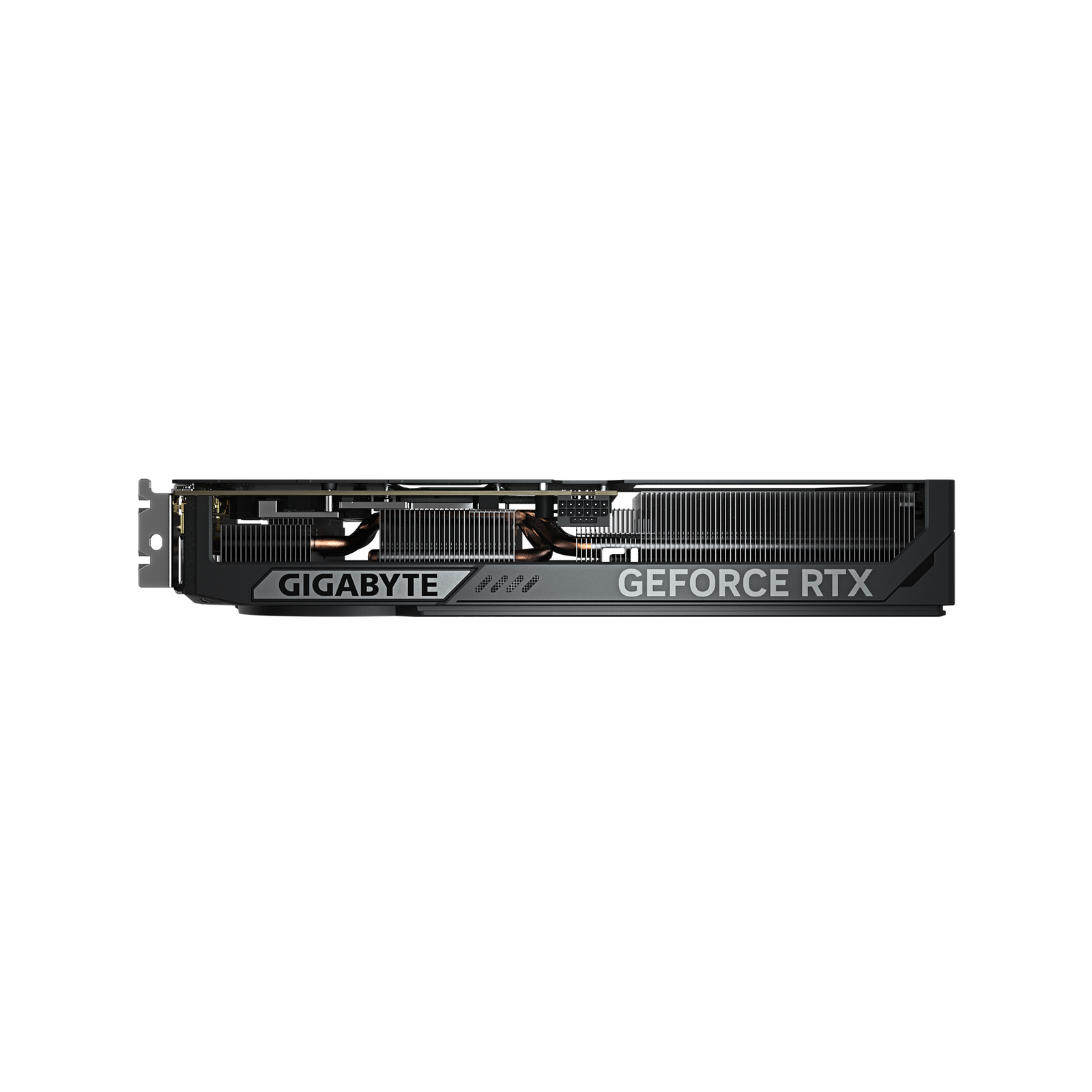

  • Large copper base plate coupled with composite copper heat pipes ensures immediate, uniform thermal energy transmission away from the GPU core

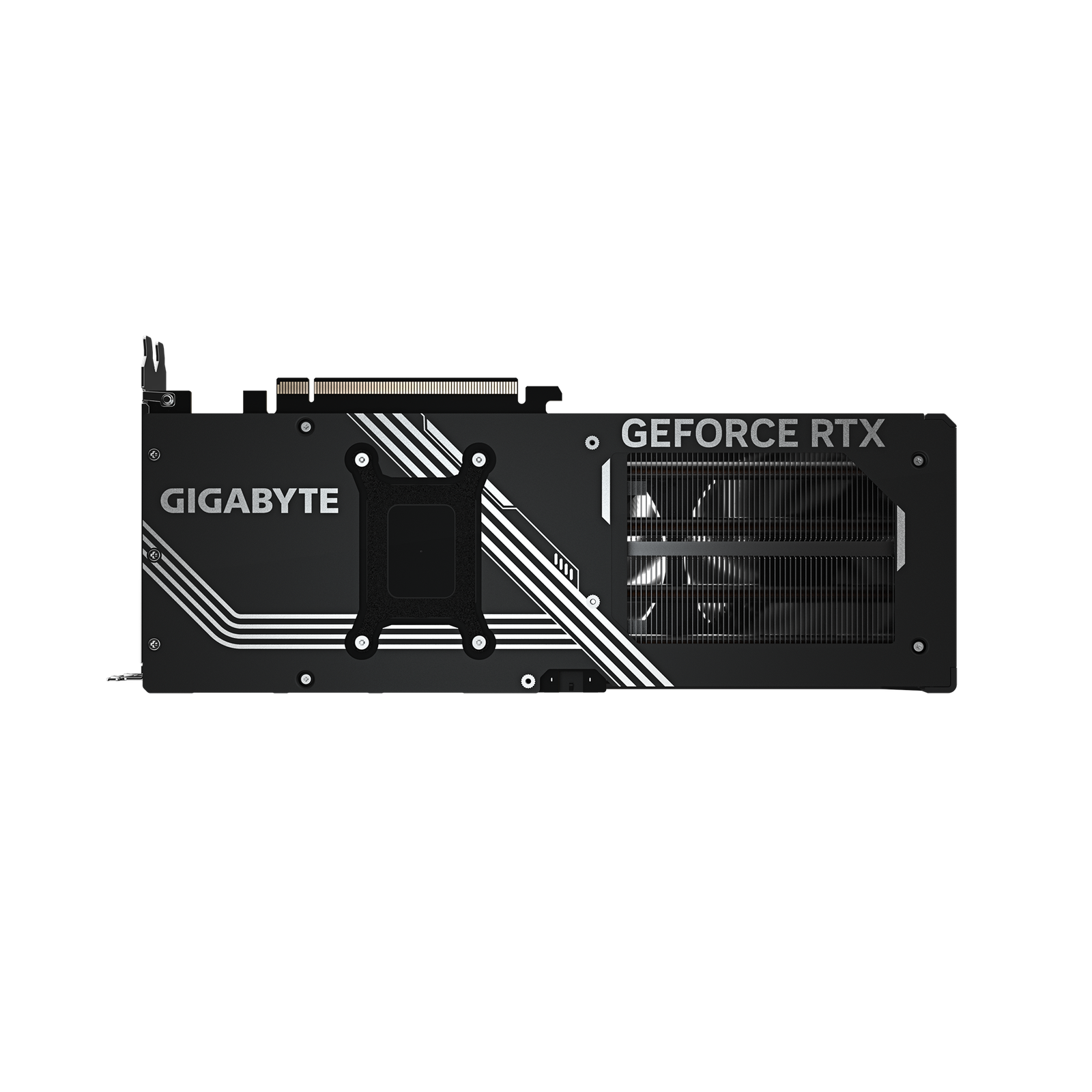

  • Reinforced metal backplate features a specialized bent edge linked directly to the I/O bracket for structural rigidity against bending
  • High-bandwidth DisplayPort 2.1b and HDMI 2.1b video outputs easily drive high-refresh displays up to 8K digital resolutions
Maximize your small form factor setup with the compact GIGABYTE GeForce RTX 5070 WINDFORCE SFF graphics card. Outfitted with 12GB of elite GDDR7 memory, an advanced triple-fan layout, and next-gen DLSS 4 support, it delivers big-tower computing power in an ITX-friendly footprint.
