KSTAR 1KVA 900W ONLINE UPS

TYPE: UPS
SKU:

Brand New1 Year Warranty

$0.00

Share

Link

The Kstar 1kVA / 900W True Online Double-Conversion UPS is an industrial-grade power protection and clean energy delivery system engineered to shield mission-critical workstations, high-end gaming battlestations, network servers, and sensitive lab electronics from dirty power and abrupt outages. Featuring advanced DSP micro-controller technology and true zero-transfer-time (0ms) double-conversion topology, it continuously regenerates pure, flawless sine wave AC power—completely isolating connected equipment from severe utility voltage sags, brownouts, surges, frequency shifts, and electrical noise. Outfitted with a high 0.9 output power factor, wide input voltage tolerance, intelligent multi-mode LCD status interface, smart ECO energy-saving mode, and high-capacity internal valve-regulated lead-acid batteries, the Kstar 1kVA UPS guarantees rock-solid uptime and uncompromised electrical stability even on unstable local power grids and generator transitions.

RATED CAPACITY

1000VA / 900W

TOPOLOGY

Online Double-Conv.

TRANSFER TIME

0 ms (Instant)

OUTPUT WAVEFORM

Pure Sine Wave

Specifications

Model Series	Kstar 1kVA / 900W High-Frequency Online Double-Conversion UPS (Tower Model)
UPS Architecture & Processing	True Online Double-Conversion (AC-DC / DC-AC) with Advanced DSP Digital Signal Controller
Rated Output Capacity & Power Factor	1000VA / 900W Real Power \| High 0.9 Output Power Factor (Delivers More Usable Wattage)
Transfer Time	Zero Milliseconds (0 ms) Seamless Transfer (Utility to Battery & Inverter to Bypass)
Nominal Input Voltage & Window	208 / 220 / 230 / 240 VAC \| Wide Input Voltage Range: 110 – 300 VAC (Reduces Unnecessary Battery Wear)
Input Frequency Range	40 – 70 Hz (Auto-Sensing 50/60 Hz; Fully Compatible with Standby Diesel & Gasoline Generators)
Output Voltage Regulation & Waveform	Pure Sine Wave Output \| Precision Voltage Regulation: ±1% (THDv < 2% Linear Load)
Battery Bank Configuration	Internal 24V DC / 36V DC Bus (Equipped with High-Rate Sealed Maintenance-Free VRLA AGM Batteries)
Recharge & Charging Management	Smart 3-Stage Battery Charging (Recovers to 90% in ~4 Hours; Extends Chemical Battery Lifespan)
Overload Capacity	105% – 125% for 1 Minute \| 125% – 150% for 30 Seconds \| >150% Instant Bypass Transfer

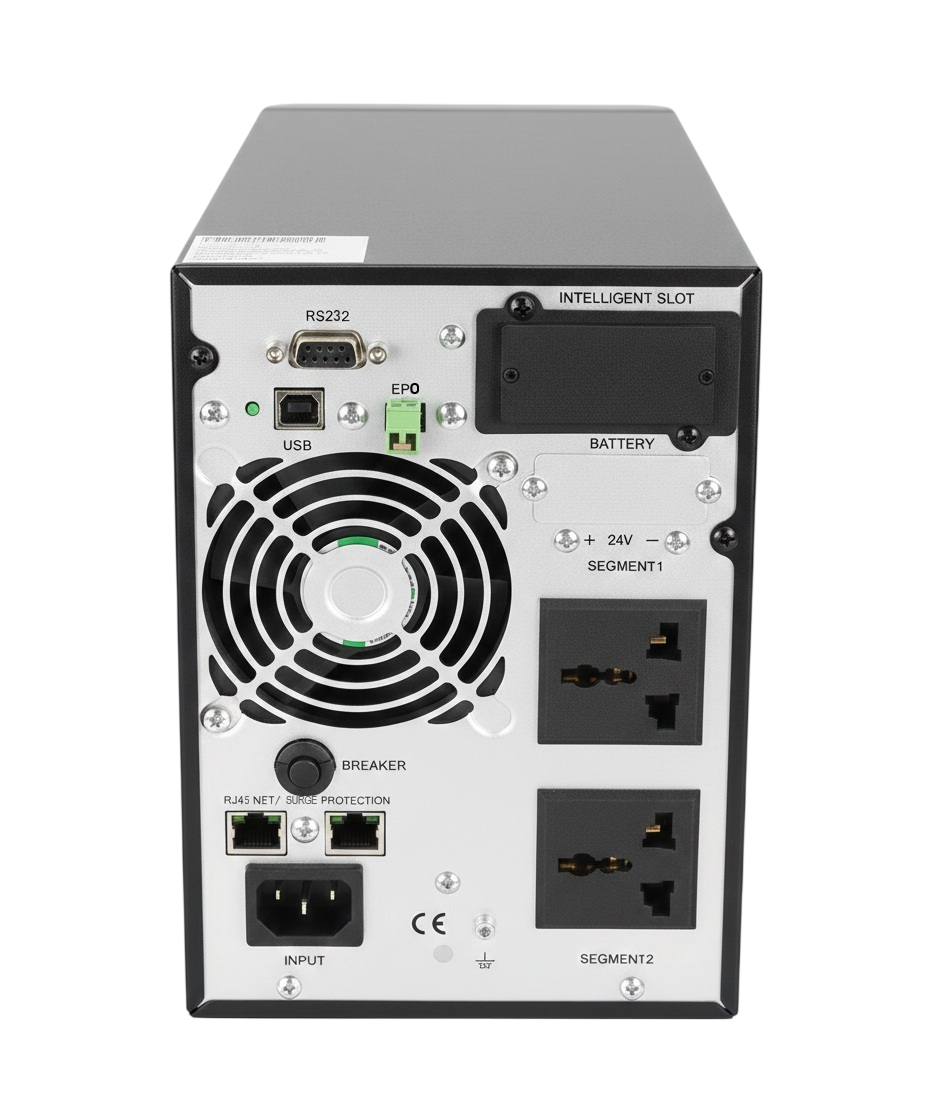

Output Sockets & Protection	Multi-Outlet Backup Sockets (Universal / IEC Outlets) + Integrated High-Joule Surge & Lightning Suppression
Monitoring Interface & Ports	Multi-Functional Front Blue-Backlit LCD Display + USB / RS232 Communication Ports (Optional SNMP Slot)
Chassis Form Factor & Weight	Rugged Industrial Steel Tower Casing in Stealth Black \| Approx. 9.5 – 11.5 kg
Included Quality Assurance & Support	Full 100% Resistive Load Bank Stress Test, Inverter Calibration Audit & Dedicated Support

Highlights

True Online Double-Conversion topology continuously rectifies AC utility power to DC and reconstructs a flawless AC wave, providing absolute electrical isolation from grid disturbances.
Instantaneous zero-millisecond (0ms) transfer time ensures sensitive equipment like high-end PC power supplies, NAS enclosures, and servers never experience rebooting or dropping off.
Pure sine wave output with ultra-low harmonic distortion (±1% voltage stability) guarantees optimal efficiency and quiet operation for Active PFC computer power supplies.
High 0.9 output power factor delivers a full 900W of actual usable load capacity out of its 1000VA rating, supporting power-hungry GPU and CPU rendering loads.
Extremely wide input voltage range (110VAC to 300VAC) allows the UPS to regulate wild power fluctuations without constantly draining internal battery reserves.
Seamless generator compatibility handles unstable generator frequencies and dirty harmonic distortions effortlessly without tripping offline.

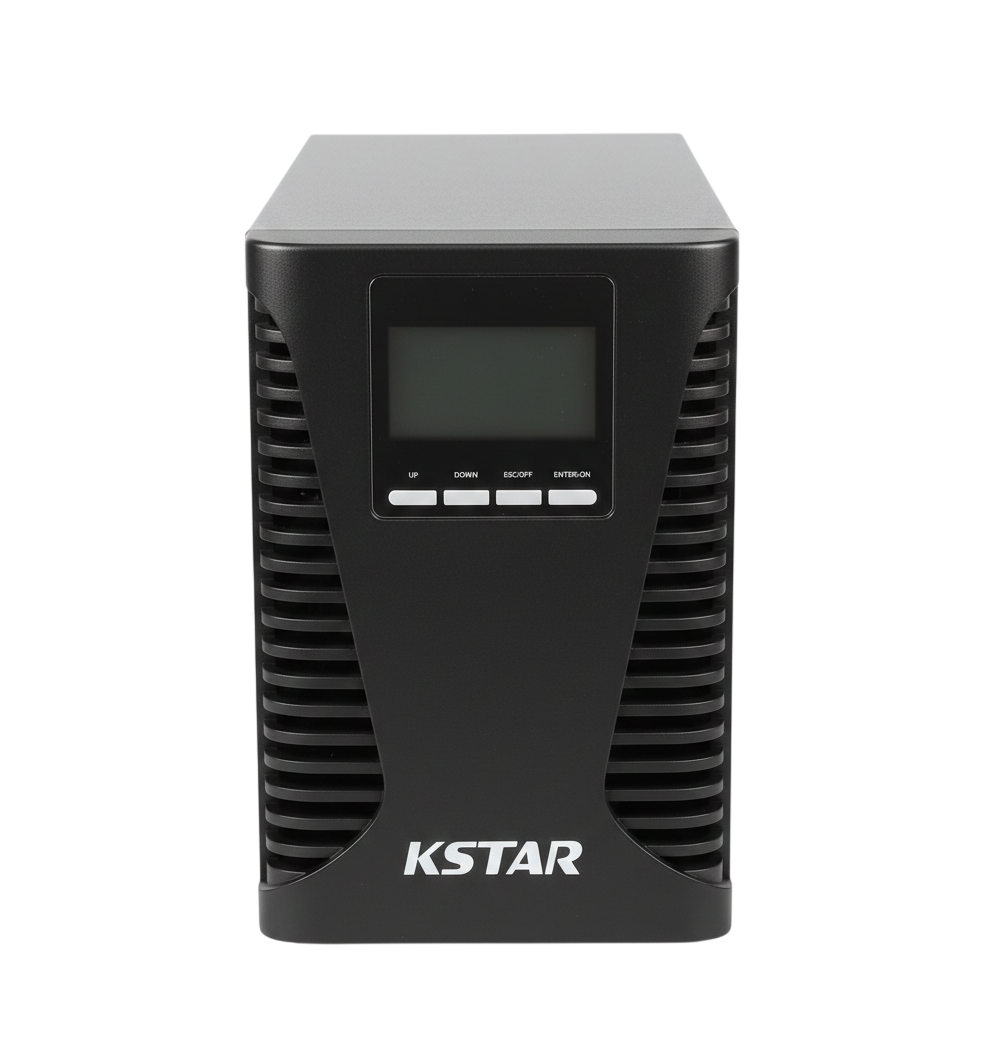

Clear, comprehensive front LCD panel displays real-time load percentage, battery capacity bar, input/output voltage, frequency, and operating modes at a single glance.
Advanced Digital Signal Processing (DSP) technology delivers rapid hardware-level error correction, precise inverter control, and enhanced overall operational reliability.
ECO Operating Mode boosts overall system efficiency up to 97% during stable grid conditions, reducing electricity consumption and ambient heat generation.
Intelligent multi-stage battery charger monitors temperature and cell voltages to prevent overcharging, achieving a rapid 90% recovery time in approximately 4 hours.
Cold-start capability allows you to boot your PC and networking gear directly from the UPS battery during a complete blackout without available mains electricity.
Backed by dedicated after-sales customer support, ensuring guidance on system load sizing, software shutdown configurations, and complete operating peace of mind.

Protect your valuable workstation and hardware setup with the Kstar 1kVA / 900W Online UPS, featuring true double-conversion technology, 0ms transfer time, pure sine wave output, 0.9 power factor, wide input voltage tolerance, and intuitive LCD monitoring.
