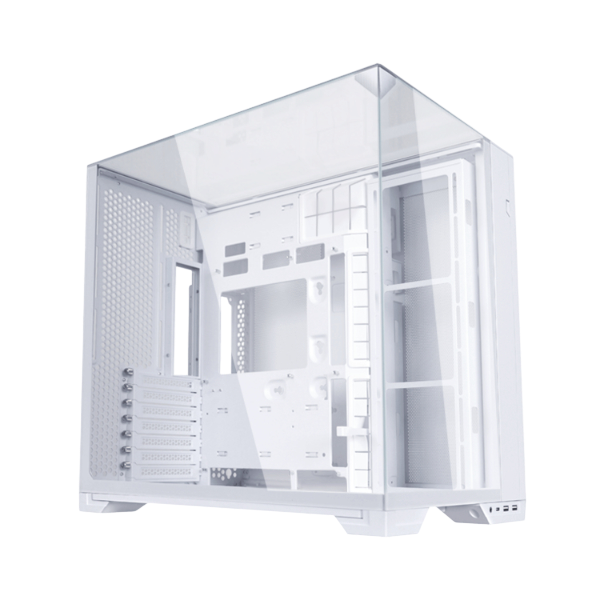

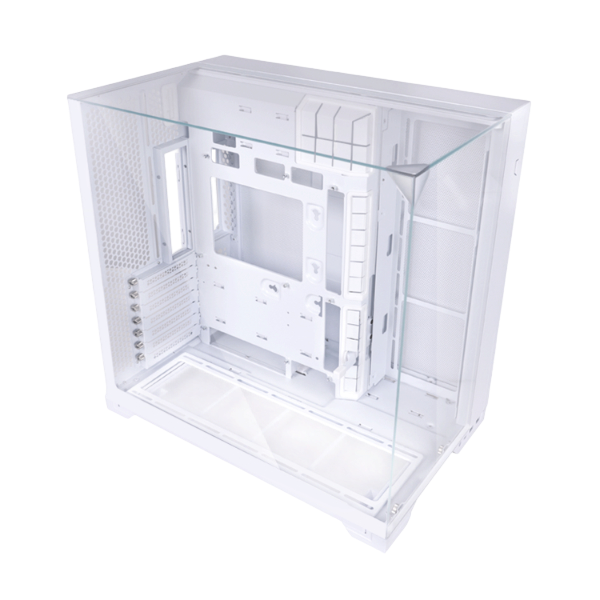

LIAN LI O11 VISION COMPACT - WHITE

  • TYPE: Case
  • SKU: 4718466015891
Brand New
$180.00
LIAN LI O11 VISION COMPACT - WHITE
LIAN LI O11 VISION COMPACT - WHITE
LIAN LI O11 VISION COMPACT - WHITE
LIAN LI O11 VISION COMPACT - WHITE

Notify me when LIAN LI O11 VISION COMPACT - WHITE - Default Title becomes available.

The Lian Li O11 Vision Compact (O11VPW) is a premium, streamlined mid-tower chassis engineered in collaboration with PC Master Race (PCMR) to deliver an uninterrupted, three-sided hardware showcase. Shrinking down the iconic footprint of the original O11 Vision to a space-efficient 57.4 liters, the Compact edition maintains a columnless dual-chamber architecture while expanding versatility. Featuring an innovative dual-configuration top structure, full support for modern back-connect motherboards, and discrete AIO tube routing, this pristine matte white enclosure offers the ultimate canvas for clean cable management, massive liquid cooling setups, and breathtaking component presentation.

Expansion Slots
7 Standard PCI-E Positions
Max GPU Clearance
Length: Up to 408 mm
Max CPU Cooler Height
167 mm
PSU Support
ATX (Up to 220 mm in Length)

Specifications

Model Name / Number O11 Vision Compact White / O11VPW
Case Type / Volume Dual-Chamber Mid Tower / 57.4 Liters
Color / Materials Matte Minimalist White / Steel, Brushed Aluminum, Tempered Glass
Glass Panels 3mm Clear Top Glass, 4mm Clear Front & Side Glass (270° View)
Motherboard Support E-ATX (Under 280mm), ATX, Micro-ATX, Mini-ITX
Back-Connect Support Yes (Compatible with ASUS BTF and MSI Project Zero)
Expansion Slots 7 Standard PCI-E Positions
Storage Capacity Behind MB Tray: 2x 2.5" SSD Hard Drive Cage: 2x 3.5" HDD or 2x 2.5" SSD
Max GPU Clearance Length: Up to 408 mm
Max CPU Cooler Height 167 mm
PSU Support ATX (Up to 220 mm in Length)
Front I/O Ports 1x USB 3.2 Gen 2 Type-C, 2x USB 3.0 Type-A, 1x HD Audio Combo
Dust Filtration Full-Length Magnetic Bottom Filter, Top & Right Side Mesh Filters
Dimensions (DxWxH) 447.5 mm x 287.5 mm x 446.4 mm

Highlights

  • Borderless 270-Degree Showcase: Utilizes structural key locks capable of withstanding 35kg of force to secure the front, side, and top panels without an ugly corner pillar. This delivers a pristine, columnless panoramic frame that shows off your hardware from every angle.
  • Modular Panel Swap (Vision vs. Mesh Mode): Ships with interchangeable top layouts. Drop in the 3mm clear tempered glass panel for an uninterrupted three-sided look, or swap to the included white mesh panel with a removable fan bracket to unleash massive top-exhaust ventilation and 360mm AIO compatibility.
  • Next-Gen Back-Connect Compatibility: Specifically engineered to accommodate modern hidden-connector motherboards such as ASUS BTF and MSI Project Zero, entirely relocating the main motherboard power, CPU, and fan cables into the secondary chamber.
  • Hidden AIO Tube Routing Channel: Features an innovative pass-through architecture that routes the liquid cooling tubes directly into the second chamber when an AIO or custom loop radiator is mounted on the side bracket, completely decluttering the main component showcase.
  • Dual-Chamber Thermal Efficiency: Separates the hot-running CPU and GPU from the power supply and storage drives. The chassis stands on elevated 27mm feet with a hollowed-out bottom bracket, pulling massive amounts of cold air upward through the GPU.
  • Advanced Dual-Layer Cable Management: Outfitted with a magnetic, tool-free cable management bar that neatly conceals internal wiring while doubling as an SSD mounting plate. Flexible dual-layer cable clips and dedicated Velcro channels keep bulky runs perfectly organized.
  • Extended Power Supply Room: The rear PSU mounting bracket extends 15mm outward from the frame. This smart offset creates crucial internal clearance, allowing you to easily store excess slack from thick white power cables without pinching.
  • Heavy-Duty GPU Anti-Sag Bracket: Includes a pre-installed, highly adjustable anti-sag bracket that bolts securely behind the motherboard tray. It adjusts seamlessly to support heavy, full-length graphics cards from 278mm up to 408mm without blocking lower fan airflow.
Maximize your desk space without sacrificing component presence with the white Lian Li O11 Vision Compact. By fusing a stunning columnless 270-degree glass canopy with back-connect motherboard routing, switchable mesh/glass top layouts, and massive triple-360mm radiator support, this compact dual-chamber chassis delivers an exquisite balance of high-airflow performance and pristine presentation.
