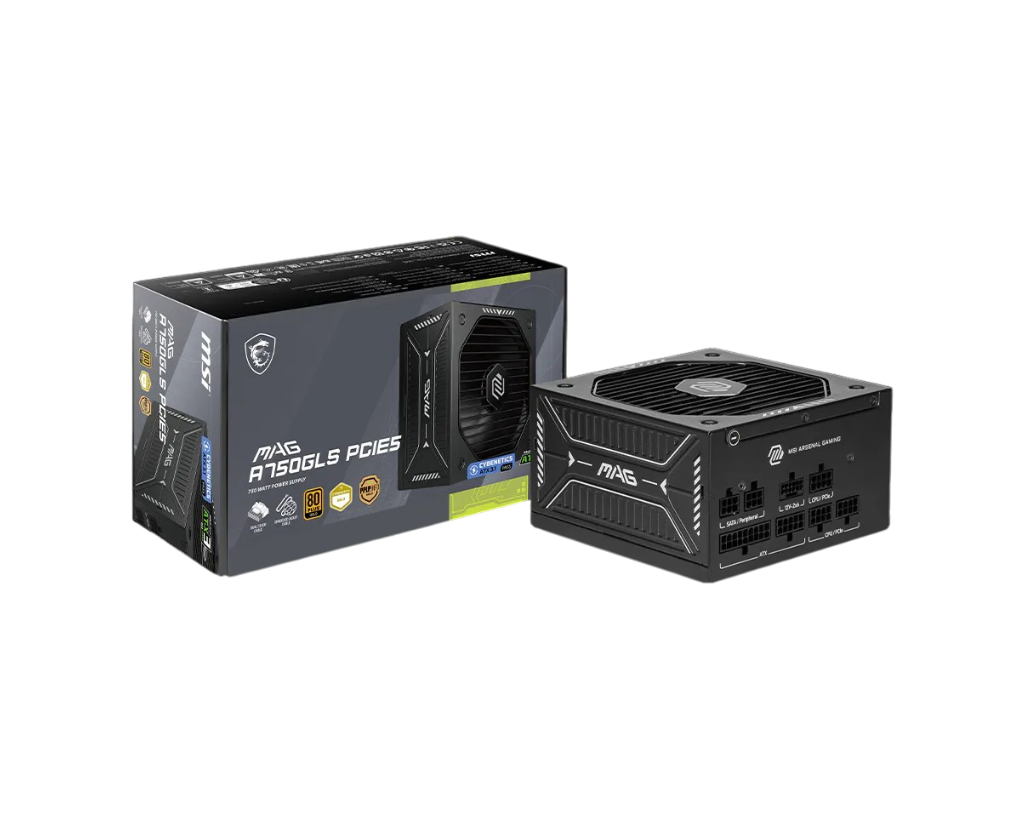

MSI MAG A750GLS PCIE5 750W 80 PLUS GOLD ATX 3.1 FULLY MODULAR - BLACK

  • TYPE: Power Supply
Brand New3 Years Warranty
$140.00

Notify me when MSI MAG A750GLS PCIE5 750W 80 PLUS GOLD ATX 3.1 FULLY MODULAR - BLACK - Default Title becomes available.

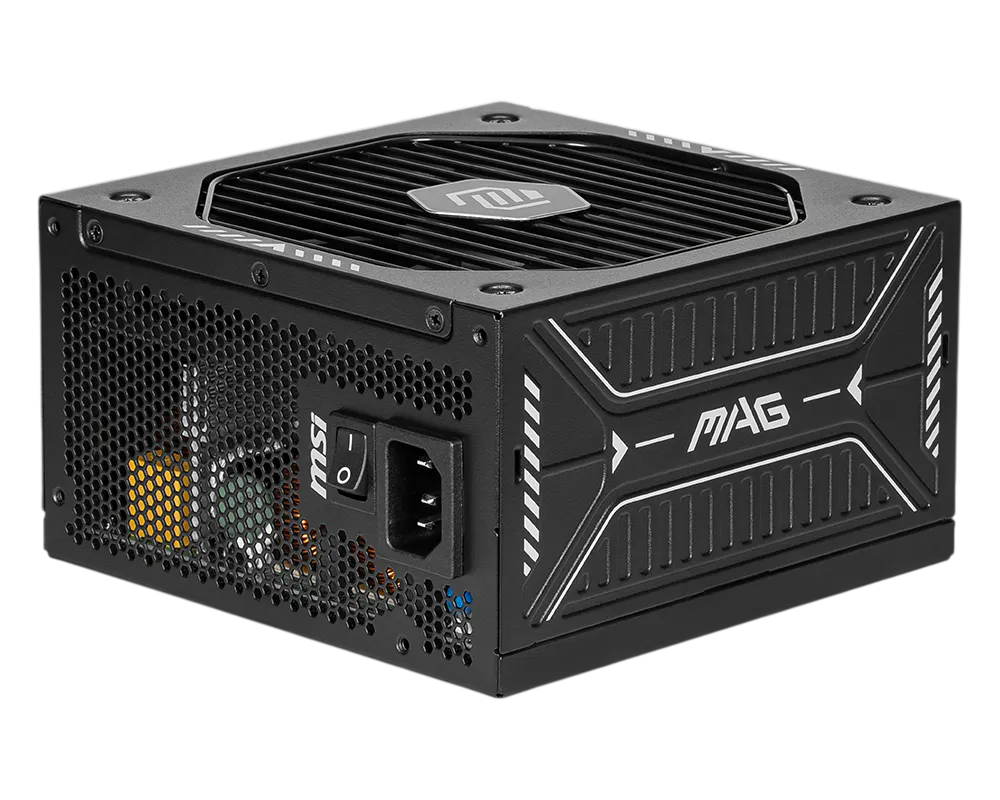

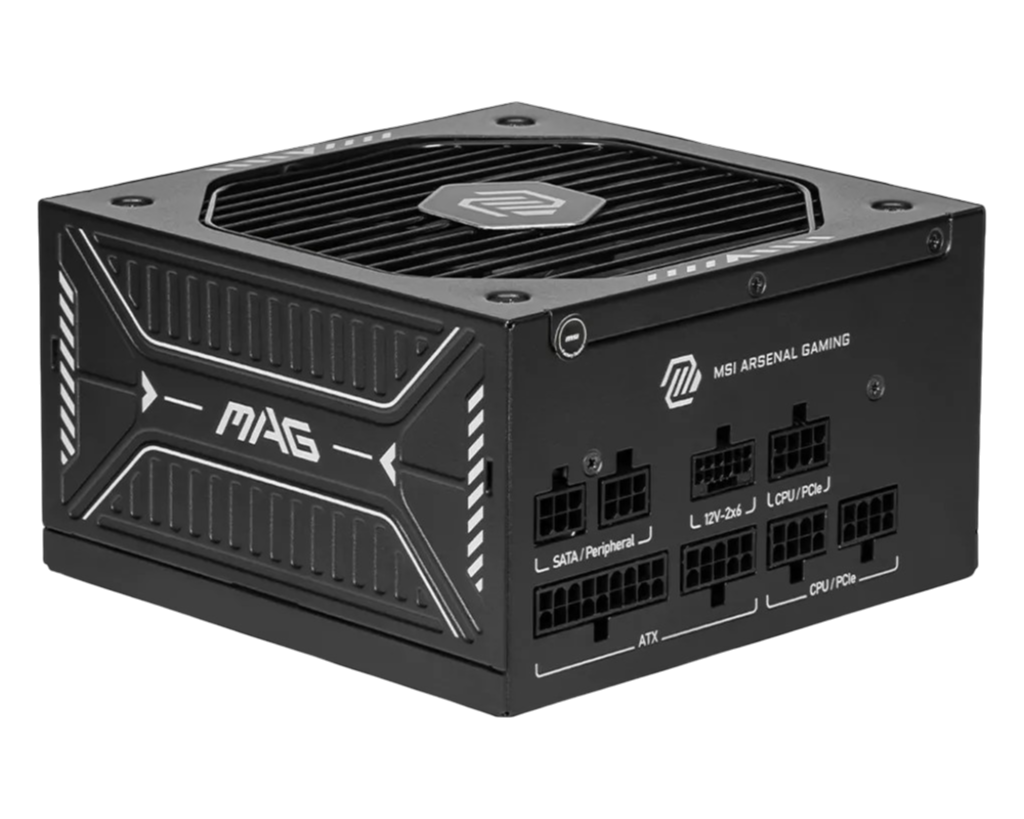

The MSI MAG A750GLS PCIE5 750W 80 PLUS Gold Power Supply is a next-generation, fully modular desktop power unit engineered to deliver uncompromising power stability to modern high-performance GPUs and multi-core processors. Built with full ATX 3.0 compliance and native PCIe 5.0 readiness, it features a dedicated 16-pin (12V-2x6 / 12VHPWR) power header capable of supplying up to 450W directly to demanding graphics cards. Backed by 80 PLUS Gold certified energy efficiency, an advanced LLC Half-Bridge DC-to-DC topology, and a silent 120mm fluid dynamic bearing fan, it serves as the ultimate reliable foundation for high-end custom gaming builds.

WATTAGE
750 W
EFFICIENCY
80 PLUS Gold
MODULARITY
Fully Modular
STANDARD
ATX 3.0 / PCIe 5

Specifications

Model MSI MAG A750GLS PCIE5 750W 80 PLUS Gold Power Supply
Total Continuous Output 750 Watts
Efficiency Certification 80 PLUS Gold Certified (Up to 90% Efficiency at 50% Load)
Power Standards Compliance Intel ATX 3.0 & PCIe 5.0 Ready (Handles 2x total power excursion)
Cable Management Fully Modular Flat Black Low-Profile Cables

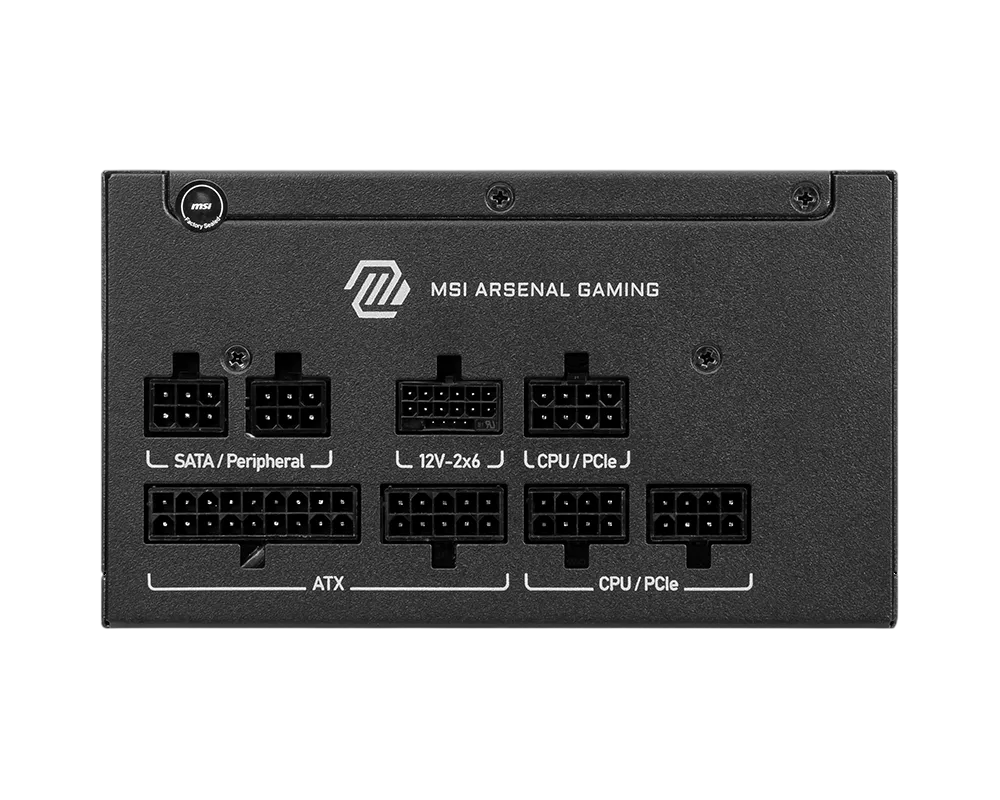

Native 16-Pin GPU Connector 1 × 16-Pin (12V-2x6 / 12VHPWR) Dual-Color Safety Header (Up to 450W)
Motherboard & CPU Headers 1 × 24-Pin ATX, 2 × 8-Pin (4+4) EPS 12V CPU Connectors
Traditional PCIe Connectors 3 × 8-Pin (6+2) PCIe Connectors
Storage & Peripheral Connectors 8 × SATA, 4 × 4-Pin Molex (Peripheral), 1 × FDD

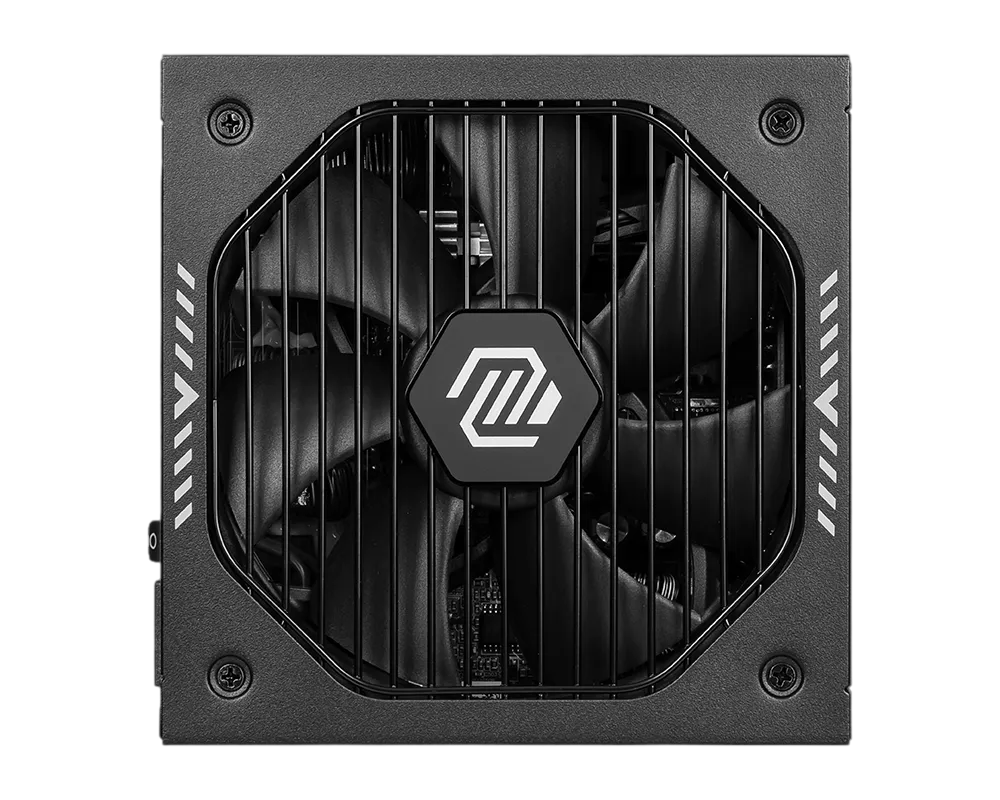

Cooling Fan & Bearing 120 mm Fluid Dynamic Bearing (FDB) Silent Fan
Circuit Topology LLC Half-Bridge with DC-to-DC Structure & Active PFC
Protection Suite OCP, OVP, OPP, OTP, SCP, UVP Complete Industrial Protections
Form Factor & Dimensions Compact ATX (140 × 150 × 86 mm) in Stealth Matte Black

Highlights

  • Official Intel ATX 3.0 certification guarantees full stability against modern GPU transient power excursions and sudden load spikes.
  • Native PCIe 5.0 16-pin (12V-2x6 / 12VHPWR) connection delivers up to 450W power directly to GeForce RTX 40 and 50 series GPUs without messy adapter cables.
  • Patented dual-color yellow 16-pin connector provides instant visual confirmation of a secure, flush insertion to prevent connector overheating.
  • 80 PLUS Gold certified energy efficiency delivers up to 90% power conversion, reducing heat dissipation, electricity waste, and overall noise.
  • Fully modular flat black low-profile cables let you connect only necessary leads for effortless cable routing and maximized case airflow.
  • Compact 140mm chassis depth ensures wide compatibility across compact ATX mid-towers and small-form-factor builds.
  • 120mm Fluid Dynamic Bearing (FDB) fan operates quietly under high loads while offering exceptional long-term mechanical durability.
  • Full industrial-grade safety protection suite (OCP, OVP, OPP, OTP, SCP, UVP) guards your core system components against electrical anomalies.
Power your next-gen gaming rig with the MSI MAG A750GLS PCIE5 750W 80 PLUS Gold Power Supply, featuring native ATX 3.0 / PCIe 5.0 readiness, dual-color 16-pin safety design, fully modular flat cabling, and compact chassis versatility.
