THERMALRIGHT LGA1700 ANTI BEND BRACKET

  • TYPE: Cooling
  • SKU: 814256004596
Brand New
$15.00
THERMALRIGHT LGA1700 ANTI BEND BRACKET
THERMALRIGHT LGA1700 ANTI BEND BRACKET

Notify me when THERMALRIGHT LGA1700 ANTI BEND BRACKET - Default Title becomes available.

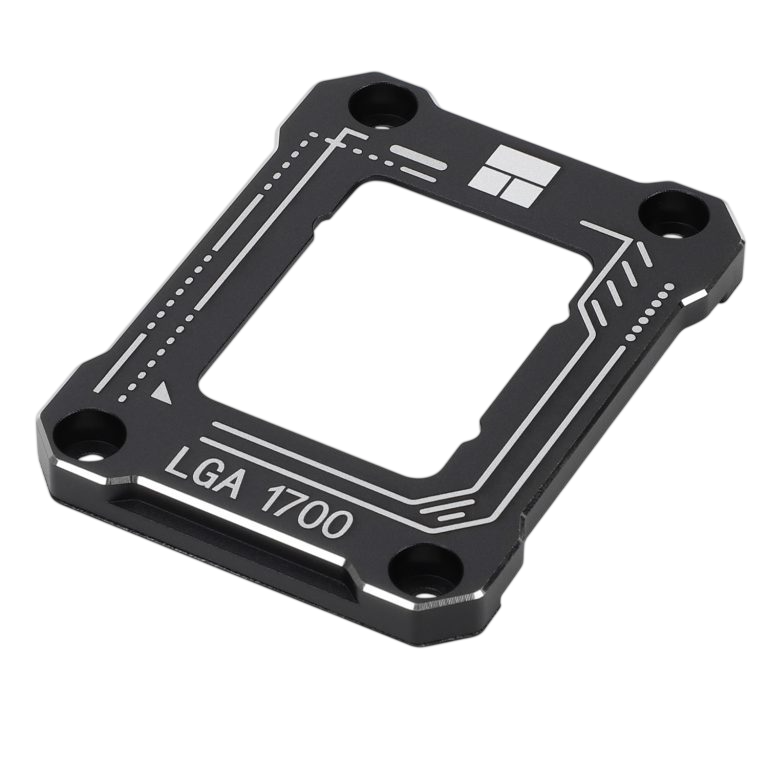

The Thermalright LGA1700 Anti-Bend Bracket is a precision-engineered solution designed to prevent CPU warping and improve thermal performance for 12th, 13th, and 14th Generation Intel processors. By replacing the standard Independent Loading Mechanism (ILM), this frame ensures even pressure distribution across the Integrated Heat Spreader (IHS), resulting in better contact with your cooler and lower operating temperatures.

Weight
20g (Frame only)
Material
Aluminum Alloy (CNC Machined)
Dimensions
54 mm x 70 mm x 6 mm

Specifications

Model Thermalright LGA1700-BCF (Bending Correct Frame)
Material Aluminum Alloy (CNC Machined)
Compatibility Intel LGA1700 Socket (12th/13th/14th Gen)
Support Chips H610, B660, Z690, B760, Z790, and more
Dimensions 54 mm x 70 mm x 6 mm
Weight 20g (Frame only)
Finish Anodized Sandblast (Available in Black/Silver/Red)
Included L-shaped Screwdriver + TF7 Thermal Paste (varies by pack)

Highlights

  • Prevention of CPU Warping: Standard Intel ILM brackets apply pressure only in the center, which can cause the CPU to "bow." This frame provides full-perimeter support to keep the CPU perfectly flat.
  • Improved Thermal Efficiency: By ensuring the IHS remains flat, the contact between the CPU and your heatsink or AIO cold plate is maximized, often resulting in temperature drops of 3°C to 10°C .
  • Precision CNC Construction: Manufactured from high-quality aluminum alloy with high-precision CNC machining, ensuring a perfect fit and long-term durability.
  • Insulated Protection: The underside of the bracket features high-temperature insulated protective pads to prevent any contact with the motherboard traces or capacitors.
  • Safe & Easy Installation: Designed to use the original motherboard screws, the installation process is straightforward and maintains the structural integrity of the socket.
  • Universal Cooler Compatibility: Its low-profile design ensures it does not interfere with any air coolers or liquid cooling blocks on the market.
Protect your Intel 12th/13th/14th Gen processor with the Thermalright LGA1700 Anti-Bend Bracket. This CNC-machined aluminum frame prevents CPU warping and improves cooling performance by ensuring perfect contact with your heatsink, making it a must-have for any LGA1700 system builder.
