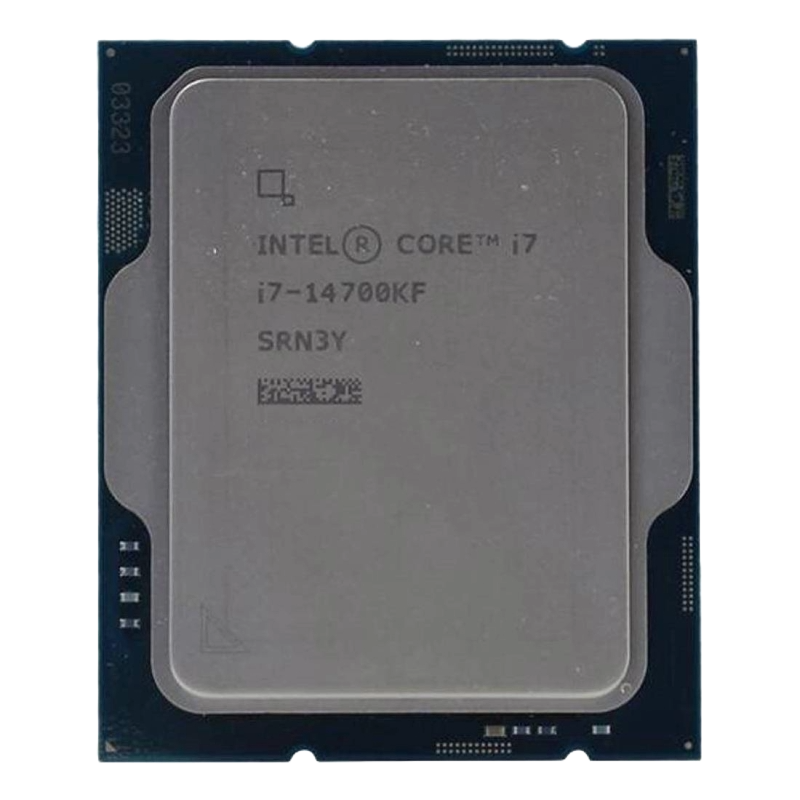

The Intel Core i7-14700KF Tray Edition offers elite-level performance with 20 cores and 28 threads, built on the 14th Gen Raptor Lake Refresh architecture. With higher boost frequencies, unlocked overclocking, and support for DDR5 and PCIe 5.0, it’s perfect for high-end gaming and productivity systems that use discrete GPUs.
Feature
Details
Model
Intel Core i7-14700KF (Tray)
Architecture
Raptor Lake Refresh
Socket
LGA 1700
Cores / Threads
20 Cores / 28 Threads (8P + 12E Cores)
Base Clock (P-Cores)
3.4 GHz
Max Turbo Frequency
Up to 5.6 GHz
L3 Cache
33MB Intel Smart Cache
L2 Cache
28MB
Unlocked
Yes
Integrated Graphics
None (F-series – requires dedicated GPU)
TDP (Base Power)
125W
Max Turbo Power
253W
Memory Support
DDR4 3200 / DDR5 5600
PCIe Support
PCIe 5.0 & 4.0
Cooler Included
No (Tray version)
Compatible Chipsets
600 & 700 Series (Z690, Z790, B760, etc.)
Manufacturing Process
Intel 7 (10nm)
20-core hybrid design with 8 Performance and 12 Efficiency cores
Up to 5.6 GHz turbo boost for extreme performance
Unlocked for overclocking with proper cooling
Supports both DDR4 and DDR5 memory
PCIe 5.0 support for future-ready systems
No integrated graphics – discrete GPU required
Tray version – ideal for high-performance custom builds
Intel Core i7-14700KF Tray CPU offers 20 cores, 28 threads, and up to 5.6GHz boost. Unlocked and built for gamers and creators, it supports DDR5 and PCIe 5.0 for elite-level custom builds with discrete GPUs.
