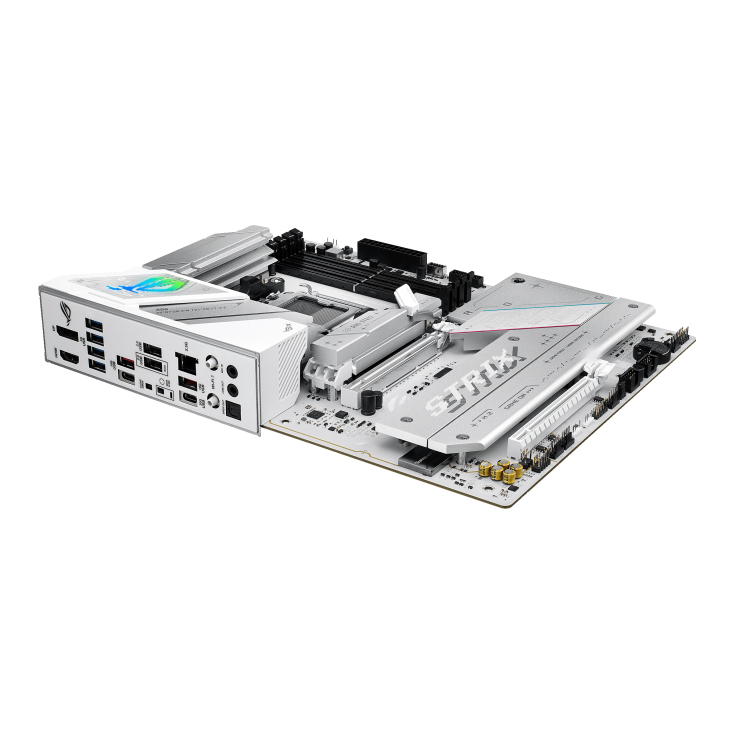

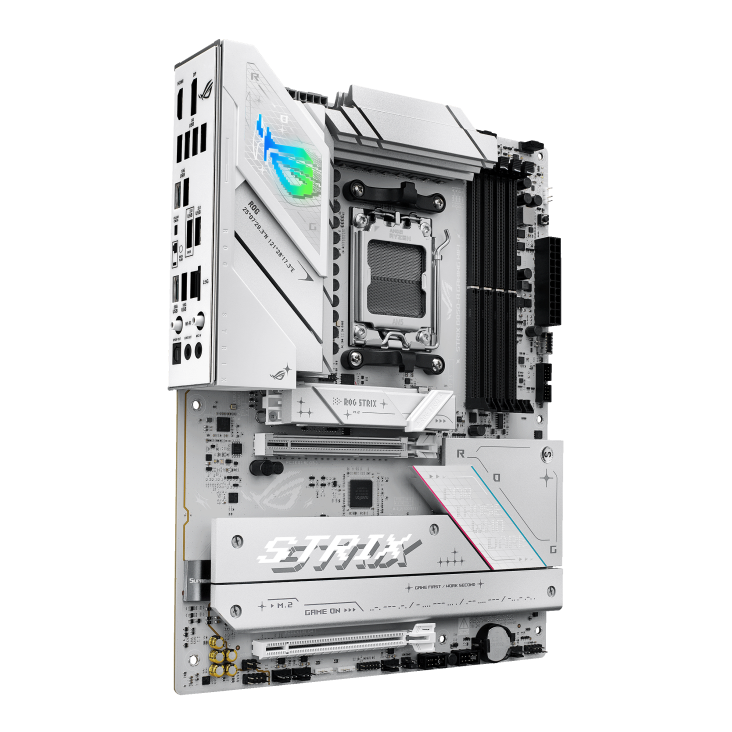

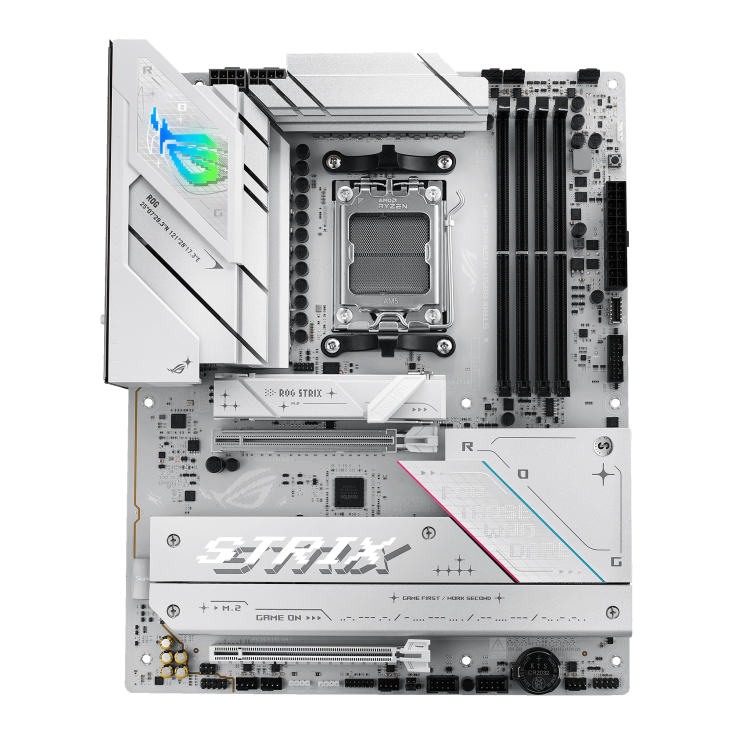

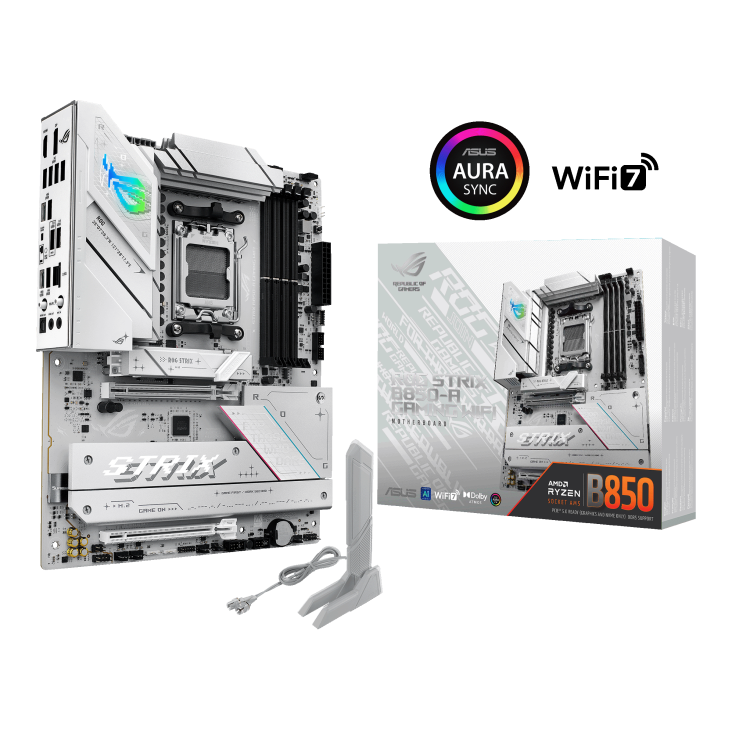

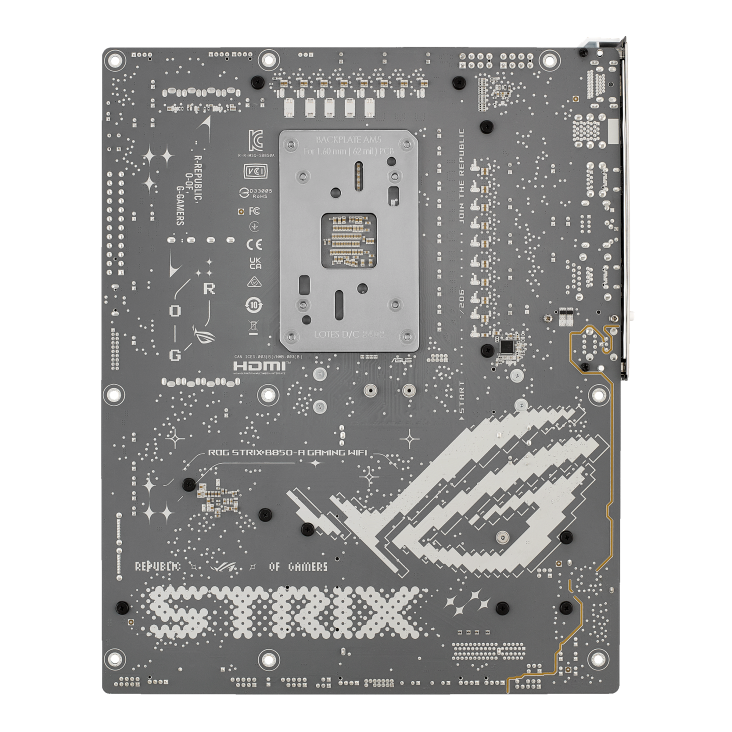

ASUS ROG STRIX B850-A GAMING WIFI – AMD AM5 DDR5

Chipset

AMD B850

CPU Socket

AM5

CPU Compatibility

AMD Ryzen 7000 Series / Ryzen 8000 Series

Form Factor

ATX

Memory Support

4× DDR5 DIMM slots, up to 192GB

Memory Speed (OC)

Up to 7600+ MHz (OC)

Expansion Slots

1× PCIe 5.0 x16

1× PCIe 4.0 x16

1× PCIe 4.0 x1

Storage Interface

2× M.2 PCIe 4.0

4× SATA 6Gb/s

M.2 Support

2× M.2 (PCIe 4.0 x4, 2242/2260/2280)

USB Ports (Rear)

1× USB 3.2 Gen 2×2 Type-C

4× USB 3.2 Gen 2 Type-A

4× USB 2.0

USB Ports (Front)

1× USB 3.2 Gen 2 Type-C (internal header)

2× USB 3.2 Gen 1

4× USB 2.0

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Networking

Intel 2.5Gb Ethernet

Wi-Fi 7

Bluetooth 5.4

Display Outputs

1× HDMI 2.1

1× DisplayPort 1.4

Cooling Features

VRM heatsinks, M.2 heatsinks, hybrid fan headers

RGB Support

Aura Sync RGB headers and Gen 2 ARGB headers

BIOS Features

UEFI AMI BIOS with EZ and Advanced Modes
