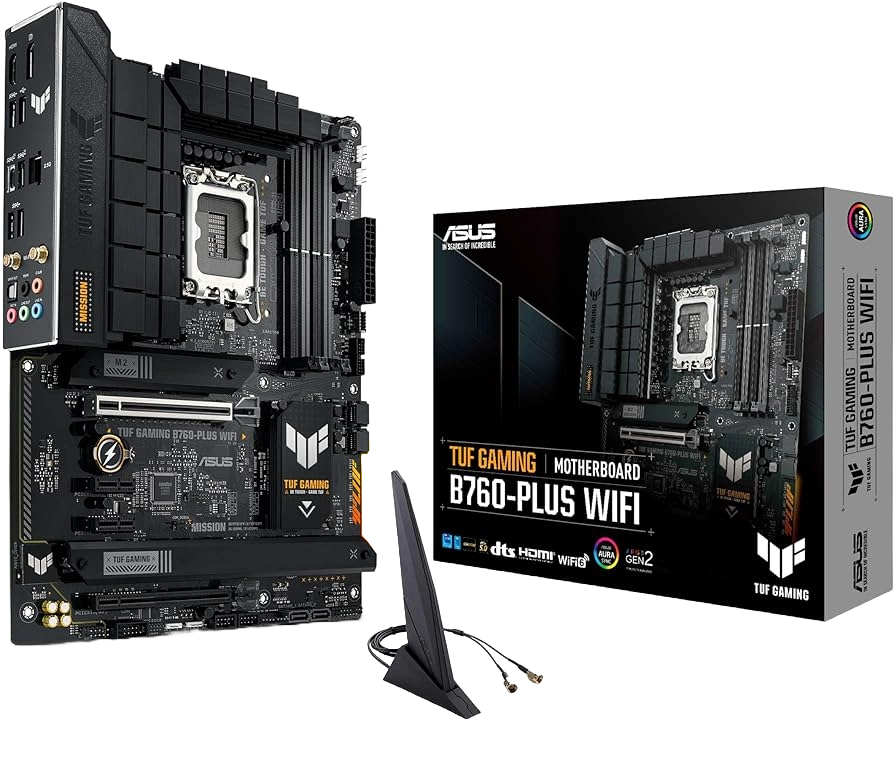

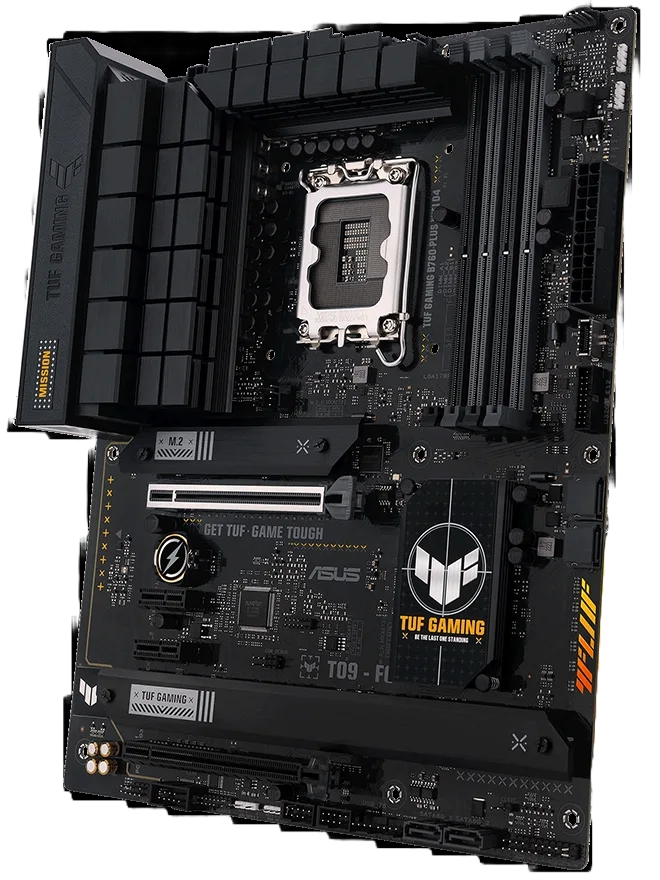

ASUS TUF GAMING B760-PLUS WIFI INTEL DDR5 MOTHERBOARD LGA 1700
Designed for durability and performance, the ASUS TUF GAMING B760-PLUS WIFI combines military-grade components, next-gen connectivity, and comprehensive cooling to support 12th and 13th Gen Intel CPUs with blazing-fast DDR5 memory.
Feature
Details
Model
ASUS TUF GAMING B760-PLUS WIFI
Socket
Intel LGA 1700
Chipset
Intel B760
Form Factor
ATX
Memory Support
4 x DDR5 DIMM slots, up to 192GB, 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400/5200/5000/4800 MHz
Graphics Support
1 x HDMI 2.1, 1 x DisplayPort 1.4
Expansion Slots
1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1
Storage
2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s

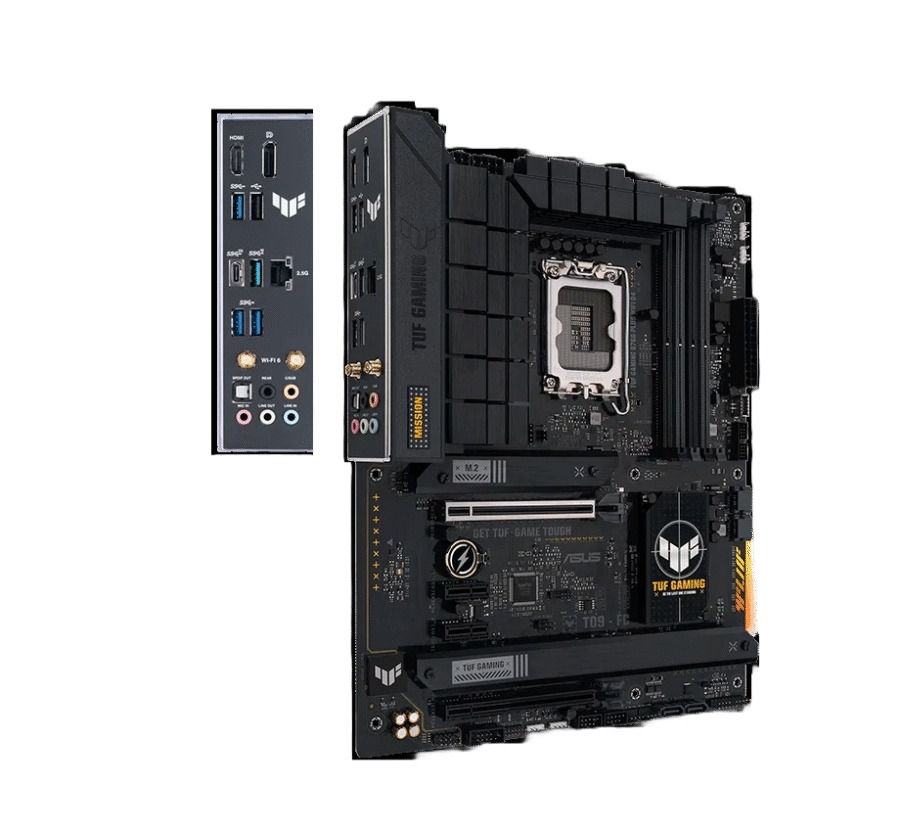

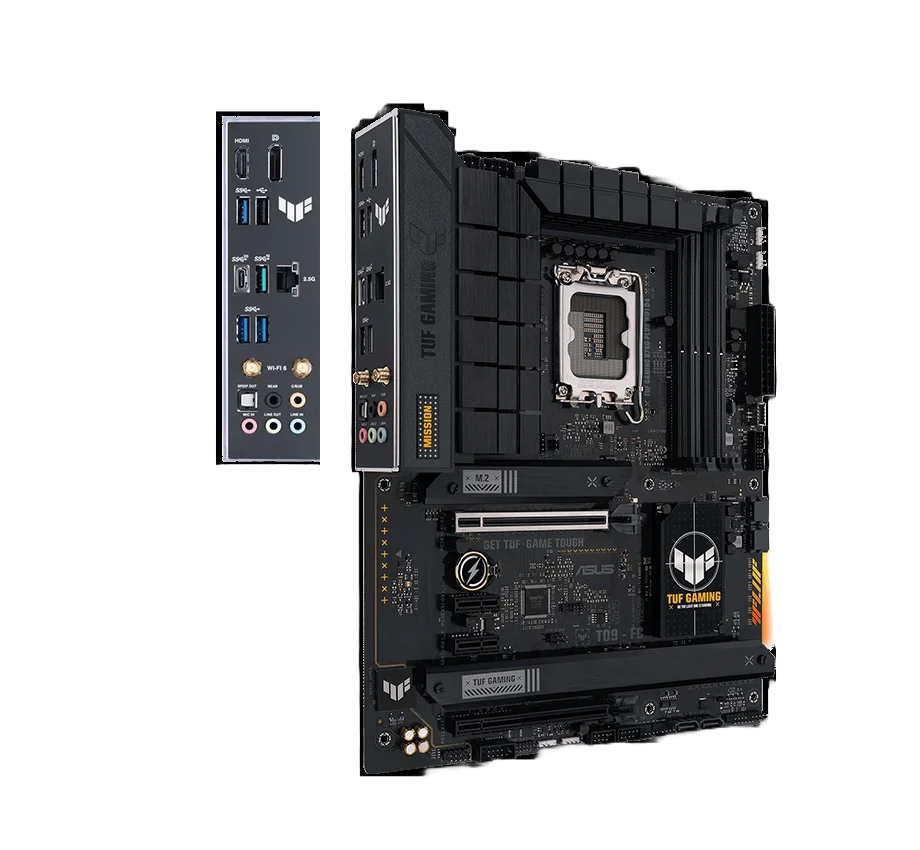

USB Ports (Rear)
1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0
USB Ports (Internal Headers)
Supports additional 1 x USB 3.2 Gen 1 header, 1 x USB 3.2 Gen 1 Type-C, 2 x USB 2.0 headers
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN
Realtek 2.5Gb Ethernet
Wireless
Intel Wi-Fi 6 and Bluetooth 5.2
Cooling Features
Large VRM heatsinks, multiple hybrid fan headers, M.2 heatsinks
Power Solution
12+1 DrMOS power stages
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System Support
Windows 10 & 11 (64-bit)
Next-Gen Memory Support: Fully supports ultra-fast DDR5 memory up to 7200+ MHz (OC).
PCIe 5.0 Ready: Future-proof your build with a full-speed PCIe 5.0 x16 slot for the latest GPUs.
Advanced Connectivity: Includes Wi-Fi 6, 2.5Gb LAN, and USB 3.2 Gen 2×2 Type-C for modern setups.
Enhanced Cooling: VRM and M.2 heatsinks, plus hybrid fan headers to maintain optimal thermals.
TUF Durability: Built with military-grade components and ASUS TUF Protection for long-term reliability.
Maximize your gaming and productivity with the ASUS TUF GAMING B760-PLUS WIFI DDR5 motherboard. Featuring PCIe 5.0, Wi-Fi 6, and DDR5 up to 7200+ MHz, it’s built tough for high-performance Intel LGA 1700 processors in demanding setups.
