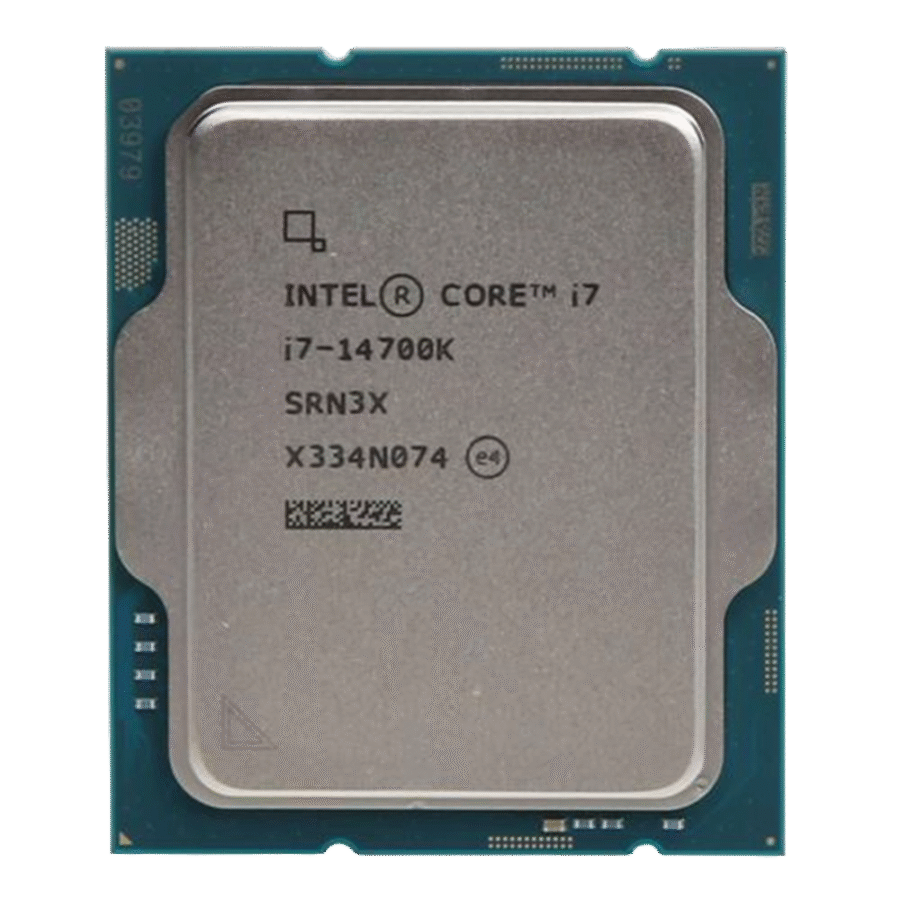

The Intel Core i7-14700K Tray Edition is a 14th Gen Raptor Lake Refresh processor delivering high-end performance with 20 cores and 28 threads. Featuring unlocked overclocking, support for DDR5, PCIe 5.0, and enhanced boost frequencies, it’s ideal for gaming, streaming, and productivity in custom-cooled builds.
Feature
Details
Model
Intel Core i7-14700K (Tray)
Architecture
Raptor Lake Refresh
Socket
LGA 1700
Cores / Threads
20 Cores / 28 Threads (8P + 12E Cores)
Base Clock (P-Cores)
3.4 GHz
Max Turbo Frequency
Up to 5.6 GHz
L3 Cache
33MB Intel Smart Cache
L2 Cache
28MB
Unlocked
Yes
Integrated Graphics
Intel UHD Graphics 770
TDP (Base Power)
125W
Max Turbo Power
253W
Memory Support
DDR4 3200 / DDR5 5600
PCIe Support
PCIe 5.0 & 4.0
Cooler Included
No (Tray version)
Compatible Chipsets
600 & 700 Series (Z690, Z790, B760, etc.)
Manufacturing Process
Intel 7 (10nm)
20-core hybrid architecture with 8 Performance and 12 Efficiency cores
Up to 5.6 GHz boost clock for high-performance tasks
Unlocked for overclocking and advanced tuning
Supports both DDR4 and DDR5 memory platforms
PCIe 5.0 readiness for next-gen graphics and SSDs
Integrated Intel UHD Graphics 770
Tray version – ideal for custom builds with aftermarket cooling
Intel Core i7-14700K Tray CPU delivers 20-core, 28-thread performance with up to 5.6GHz boost. With DDR5 and PCIe 5.0 support, it’s perfect for custom gaming, streaming, and productivity builds needing unlocked, high-performance processing.
