MSI PRO B760M-P DDR4 – INTEL LGA 1700 DDR4
155 $
SKU: 4711377030991
Brand New ~ 1 Year Warranty ~
Does NOT Cover Physical Damage
Only 1 left in stock
- Category: Motherboard
- Brand: MSI
Product Description

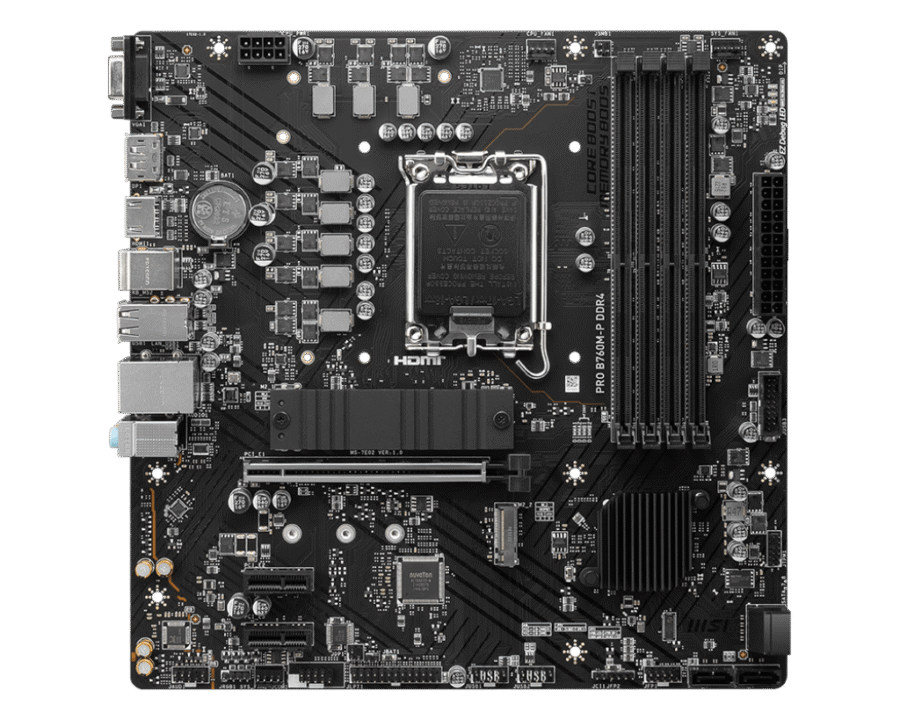

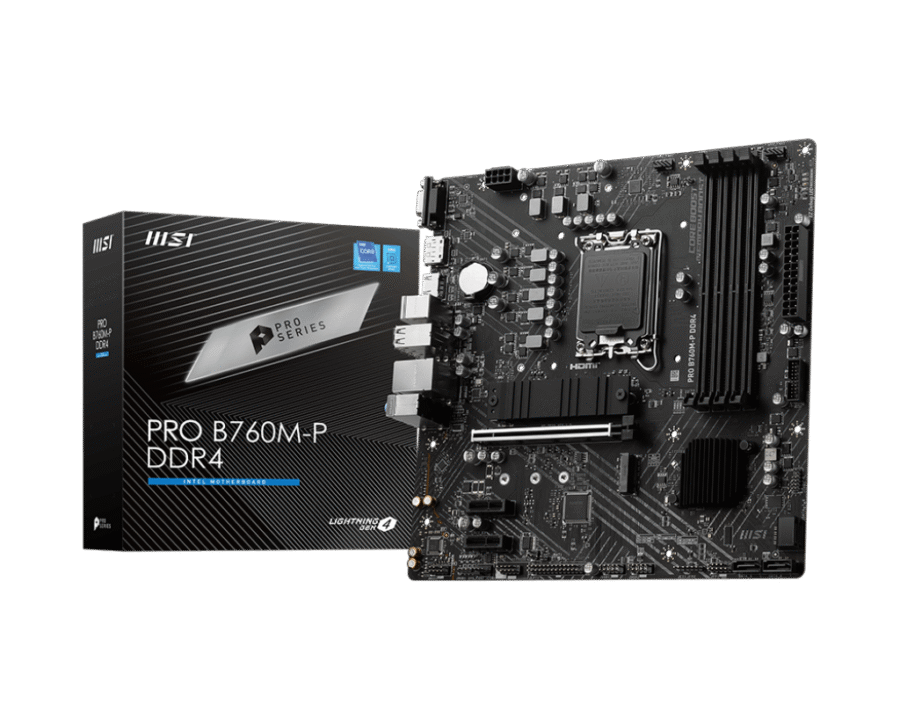

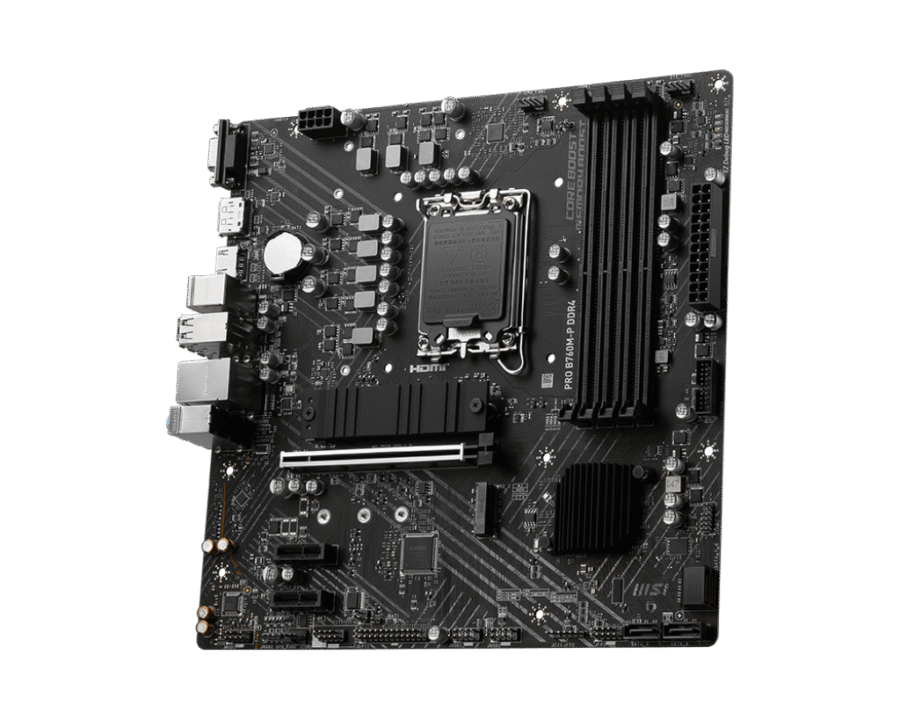

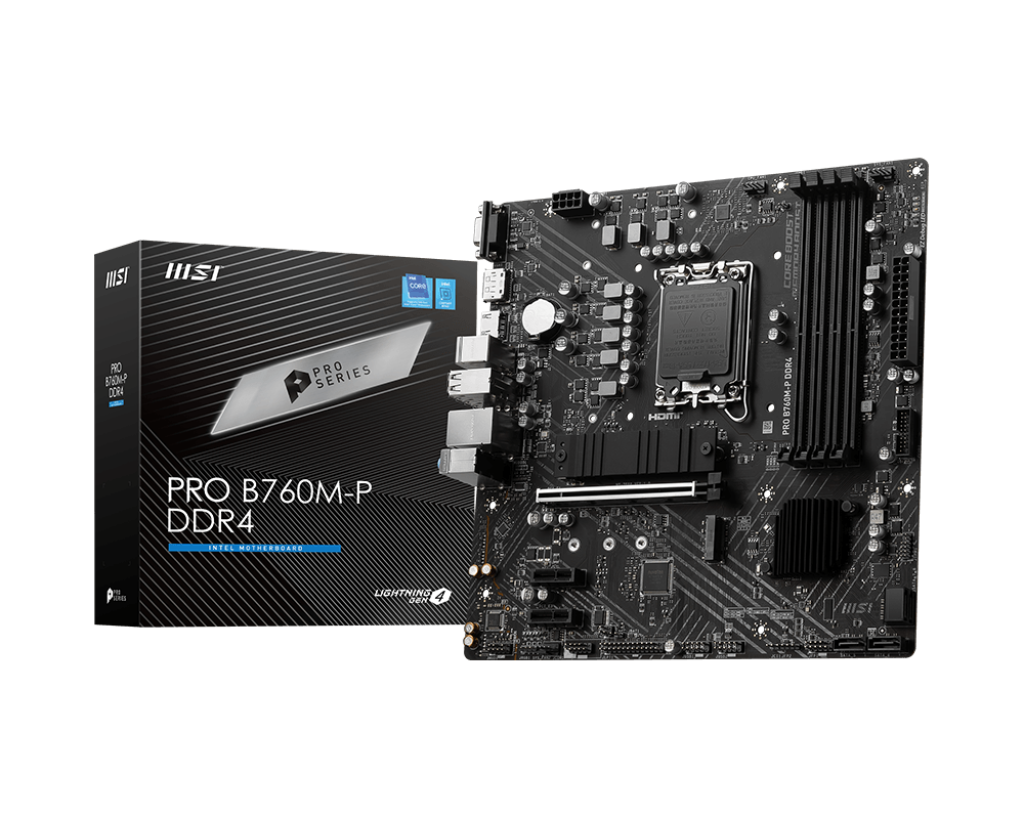

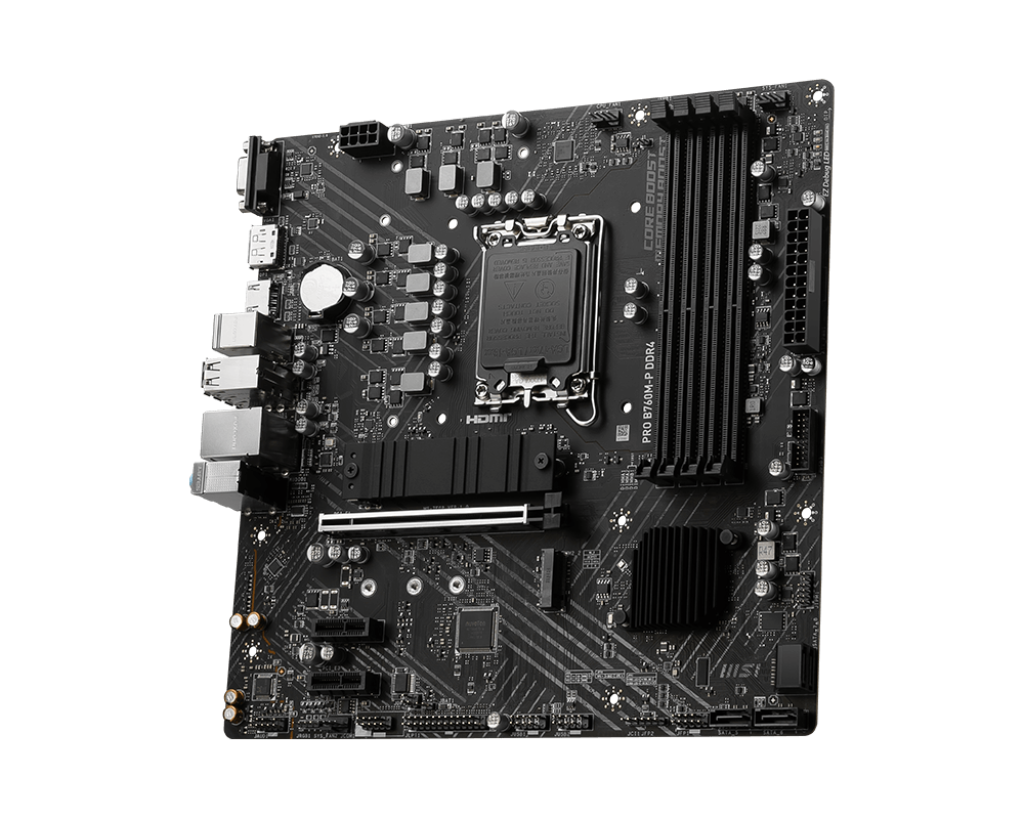

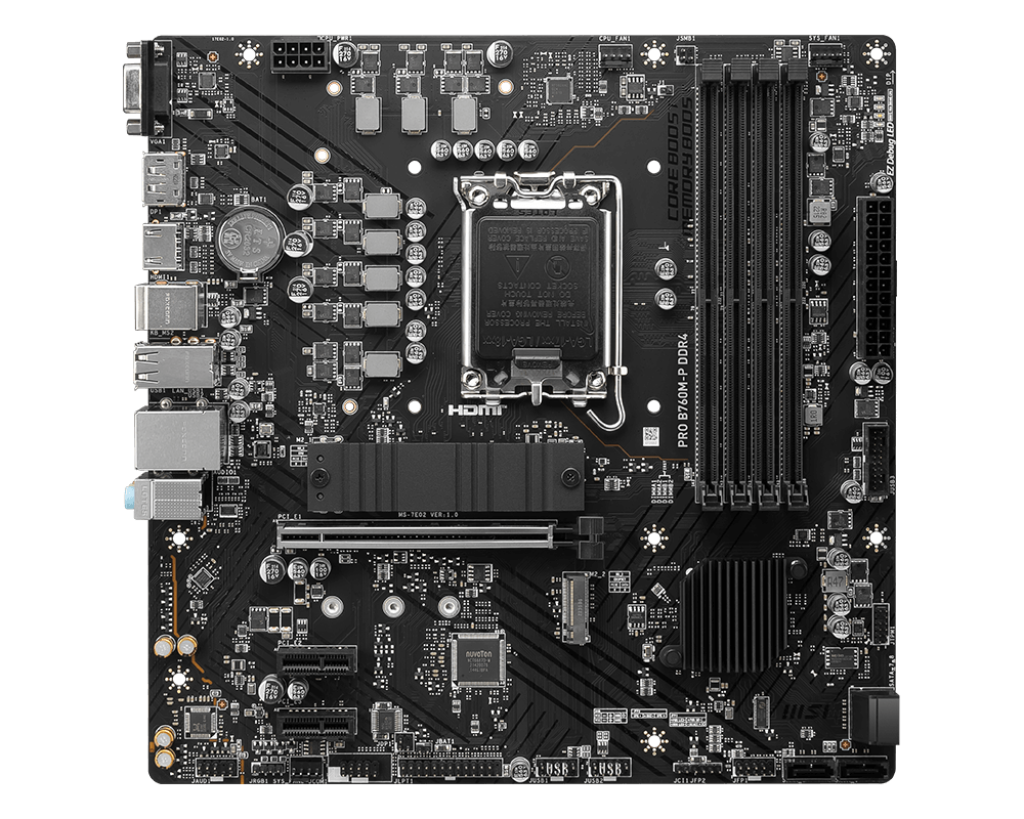

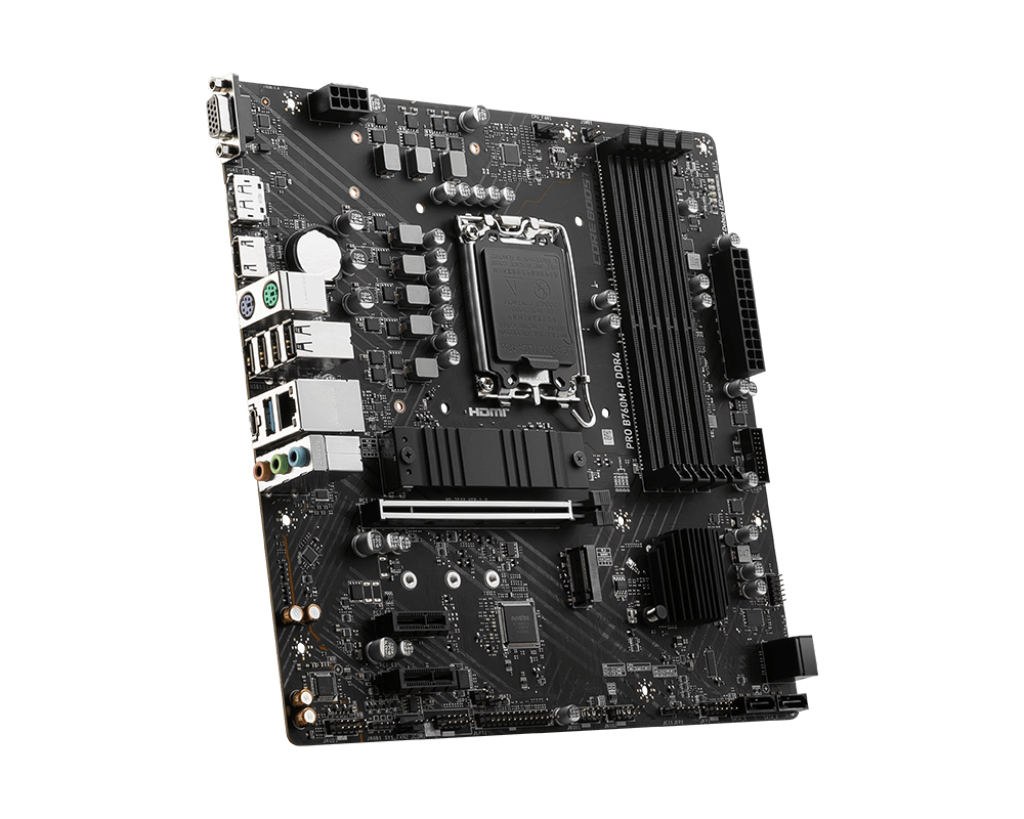

The MSI PRO B760M-P DDR4 is a Micro-ATX motherboard designed for Intel’s 14th, 13th, and 12th Gen processors. It offers essential features like PCIe 4.0 support, DDR4 memory compatibility, and dual M.2 Gen4 storage slots, making it an excellent choice for budget-conscious builders seeking performance and stability.
Specification |
Details |
|---|---|
Model |
PRO B760M-P DDR4 |
Form Factor |
Micro-ATX (243.8mm x 243.8mm) |
CPU Support |
Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, and Celeron® Processors |
Socket |
LGA 1700 |
Chipset |
Intel B760 |
Memory Support |
4x DDR4 DIMM slots, up to 128GB, up to 4800 MHz (OC), Dual-Channel, XMP |
Graphics Outputs |
1x HDMI 1.4 (4K@30Hz), 1x DisplayPort 1.4 (4K@60Hz), 1x VGA |
Expansion Slots |
1x PCIe 4.0 x16, 2x PCIe 4.0 x1 |
Storage |
2x M.2 Gen4 x4 (64Gbps), 4x SATA 6Gb/s |
LAN |
Realtek® RTL8111H Gigabit LAN |
Audio |
Realtek® ALC897 7.1-Channel High Definition Audio |
USB Ports (Rear I/O) |
1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1 Type-A, 4x USB 2.0 |
USB Headers (Internal) |
2x USB 3.2 Gen 1, 2x USB 2.0 |
Power Connectors |
1x 24-pin ATX, 1x 8-pin CPU |
Cooling Features |
Passive chipset heatsink, M.2 Shield Frozr, Frozr AI Cooling |
RGB Headers |
1x RGB LED connector |
Diagnostic Tools |
EZ Debug LED |
Operating System Support |
Windows® 11 64-bit, Windows® 10 64-bit |
-
Intel 14th/13th/12th Gen CPU Support: Compatible with the latest Intel processors for versatile performance.
-
DDR4 Memory Compatibility: Supports high-speed DDR4 memory up to 4800 MHz (OC) for efficient multitasking.
-
PCIe 4.0 and Dual M.2 Gen4 Support: Offers fast data transfer rates for graphics cards and NVMe SSDs.
-
Comprehensive Connectivity: Equipped with multiple USB ports and display outputs for various peripherals.
-
Enhanced Cooling: Features passive chipset heatsink, M.2 Shield Frozr, and Frozr AI Cooling for optimal thermal performance.
-
EZ Debug LED: Simplifies troubleshooting with onboard diagnostic LEDs.
