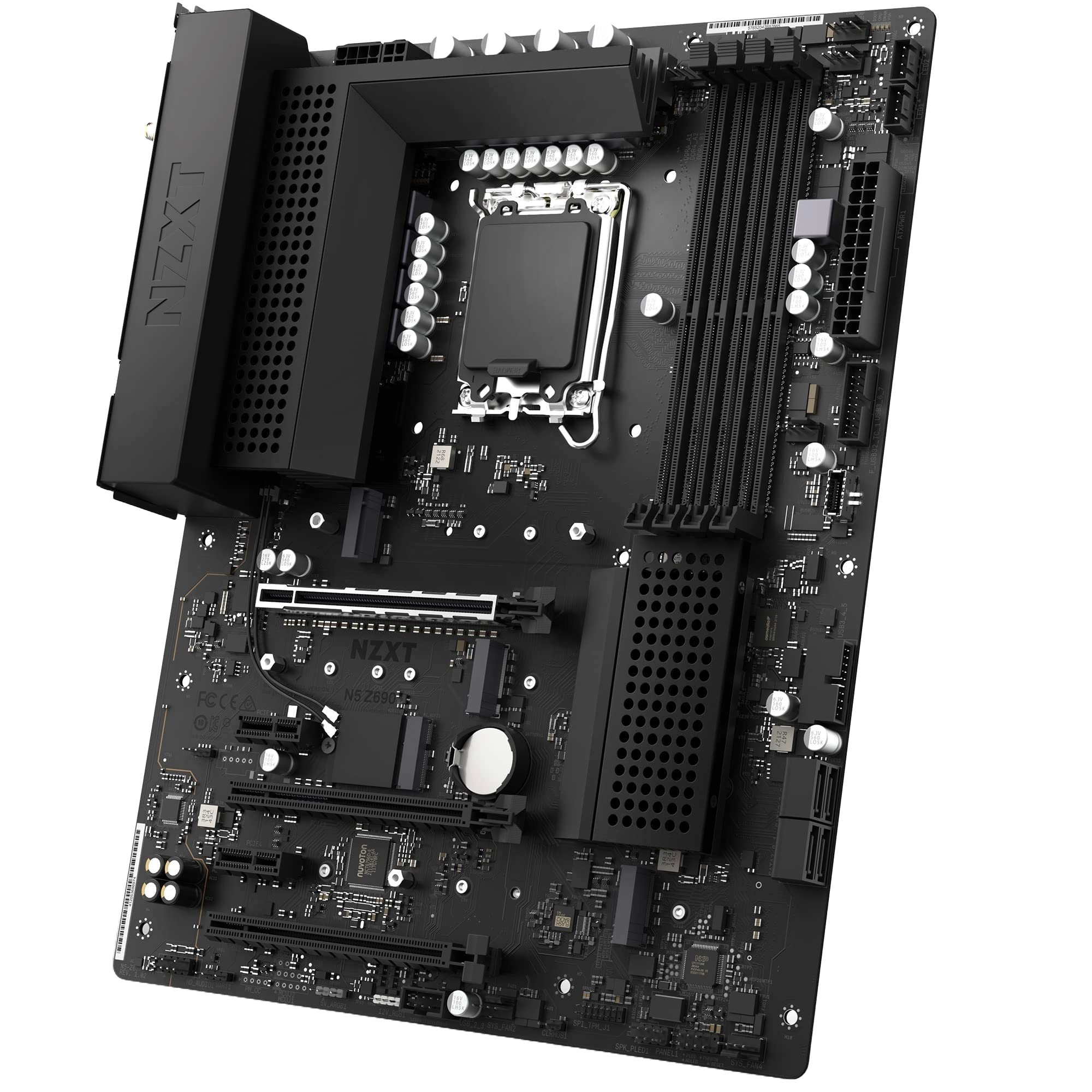

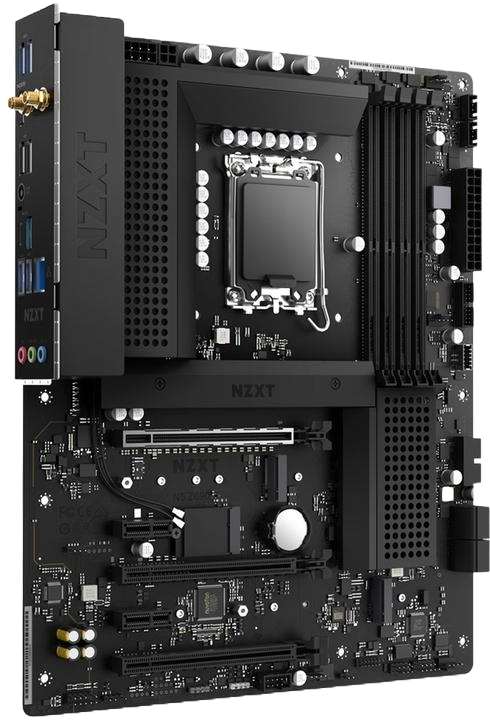

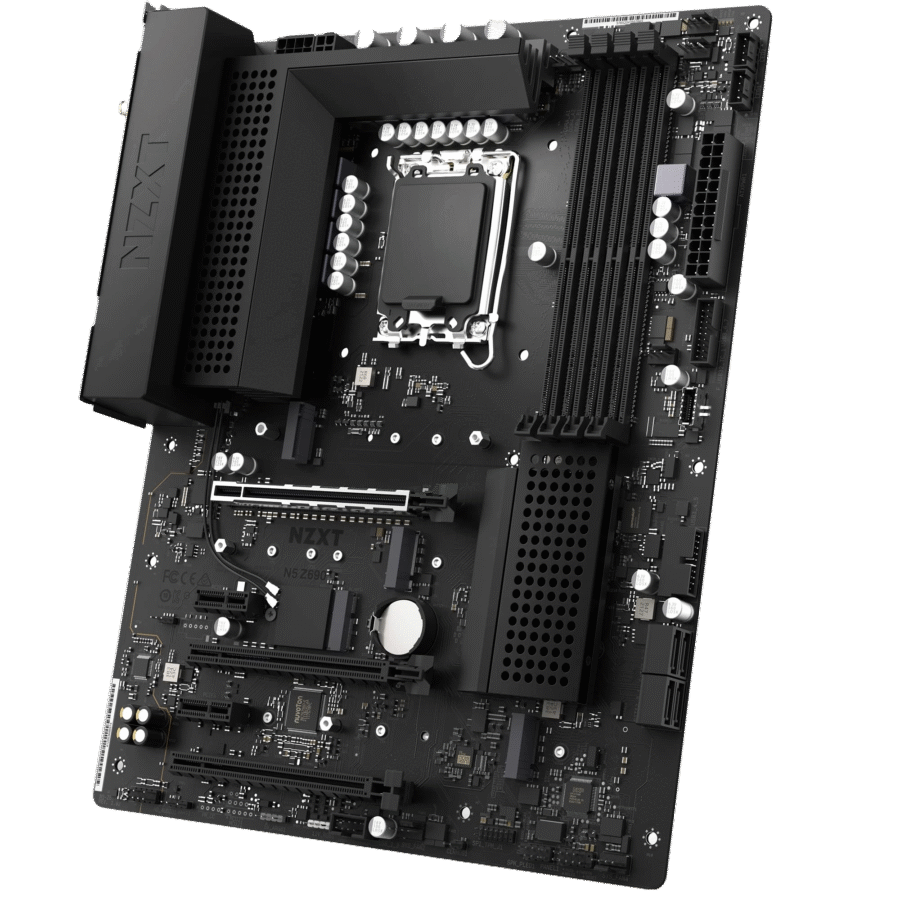

NZXT Z690 N5 BLACK – INTEL LGA 1700 DDR4
210 $
SKU: 5056547200149
Brand New ~ 1 Year Warranty ~
Does NOT Cover Physical Damage
Only 2 left in stock
- Category: Motherboard
- Brand: NZXT
Product Description
The NZXT N5 Z690 Black motherboard delivers a sleek aesthetic combined with powerful performance, supporting Intel’s 12th Gen processors with a robust Z690 chipset. With Wi-Fi 6E, PCIe 5.0, and NZXT CAM integration for lighting and fan control, it’s the perfect foundation for a high-end gaming or creative workstation build.
Specification | Details |
|---|---|
Form Factor | ATX |
Chipset | Intel Z690 |
CPU Socket | LGA 1700 |
CPU Support | 12th Gen Intel Core, Pentium Gold, Celeron |
Memory Support | 4× DDR4 DIMMs, up to 128GB, up to 5000MHz (OC) |
Expansion Slots | 1× PCIe 5.0 x16, 2× PCIe 4.0 x1, 1× PCIe 3.0 x4 |
Storage Support | 4× M.2 (PCIe 4.0 x4 & SATA), 4× SATA III 6Gb/s |
Graphics Output | 1× HDMI 2.0 |
LAN | 2.5G Realtek RTL8125BG |
Wi-Fi & Bluetooth | Intel Wi-Fi 6E & Bluetooth 5.2 |
Audio | Realtek ALC897 8-channel HD Audio |
USB Ports (Rear I/O) | 1× USB 3.2 Gen 2 Type-C, 1× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1 Type-A, 2× USB 2.0 |
Internal USB Headers | 1× USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 1, USB 2.0 |
RGB & Fan Control | 2× NZXT RGB, 1× 5V ARGB, 1× 12V RGB, 4× SYS FAN |
Power Phases | 8+1 DrMOS Power Phase |
BIOS Features | BIOS Flashback, Clear CMOS, POST LEDs |
Cooling Support | CPU_FAN, AIO_PUMP, 4× SYS_FAN (up to 24W each) |
Software | NZXT CAM support for lighting & fan control |
OS Compatibility | Windows 10 / 11 (64-bit) |
Compatible with 12th Gen Intel Core processors
Supports PCIe 5.0 GPU lane and fast DDR4 memory up to 5000MHz
Integrated Wi-Fi 6E and 2.5G LAN for next-gen networking
4× M.2 slots for high-speed NVMe SSDs
Built-in I/O shield and reinforced PCIe slots
NZXT CAM integration for RGB and fan customization
Sleek matte black design with optimized thermal layout
