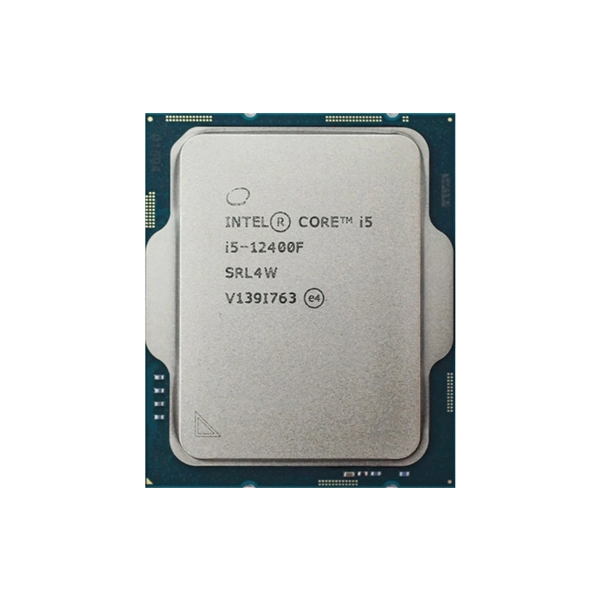

The Intel Core i5-12400F Tray Edition delivers excellent performance for gaming and multitasking with 6 performance cores and 12 threads. This version comes without a retail box or cooler, making it ideal for custom builds with aftermarket cooling solutions.
Feature
Details
Model
Intel Core i5-12400F (Tray)
Architecture
Alder Lake
Socket
LGA 1700
Cores / Threads
6 Cores / 12 Threads (6P + 0E Cores)
Base Clock
2.5 GHz
Max Turbo Frequency
Up to 4.4 GHz
L3 Cache
18MB Intel Smart Cache
L2 Cache
7.5MB
Unlocked
No
Integrated Graphics
None (Requires dedicated GPU)
TDP (Base Power)
65W
Max Turbo Power
117W
Memory Support
DDR4 3200 / DDR5 4800
PCIe Support
PCIe 5.0 & 4.0
Cooler Included
No (Tray version)
Compatible Chipsets
600 & 700 Series (B660, H670, Z690, etc.)
Manufacturing Process
Intel 7 (10nm)
6-core, 12-thread processor with Intel Alder Lake architecture
Boosts up to 4.4 GHz for high single-threaded performance
Compatible with both DDR4 and DDR5 memory types
PCIe 5.0 and 4.0 support for next-gen GPUs and storage
Requires aftermarket CPU cooler (tray version)
Ideal for budget to mid-range custom PC builds
Great efficiency and performance for gaming and multitasking
The Intel Core i5-12400F Tray Edition offers 6-core, 12-thread performance with up to 4.4GHz boost and support for DDR5 and PCIe 5.0. Ideal for custom builds, this version ships without a cooler for maximum flexibility.
