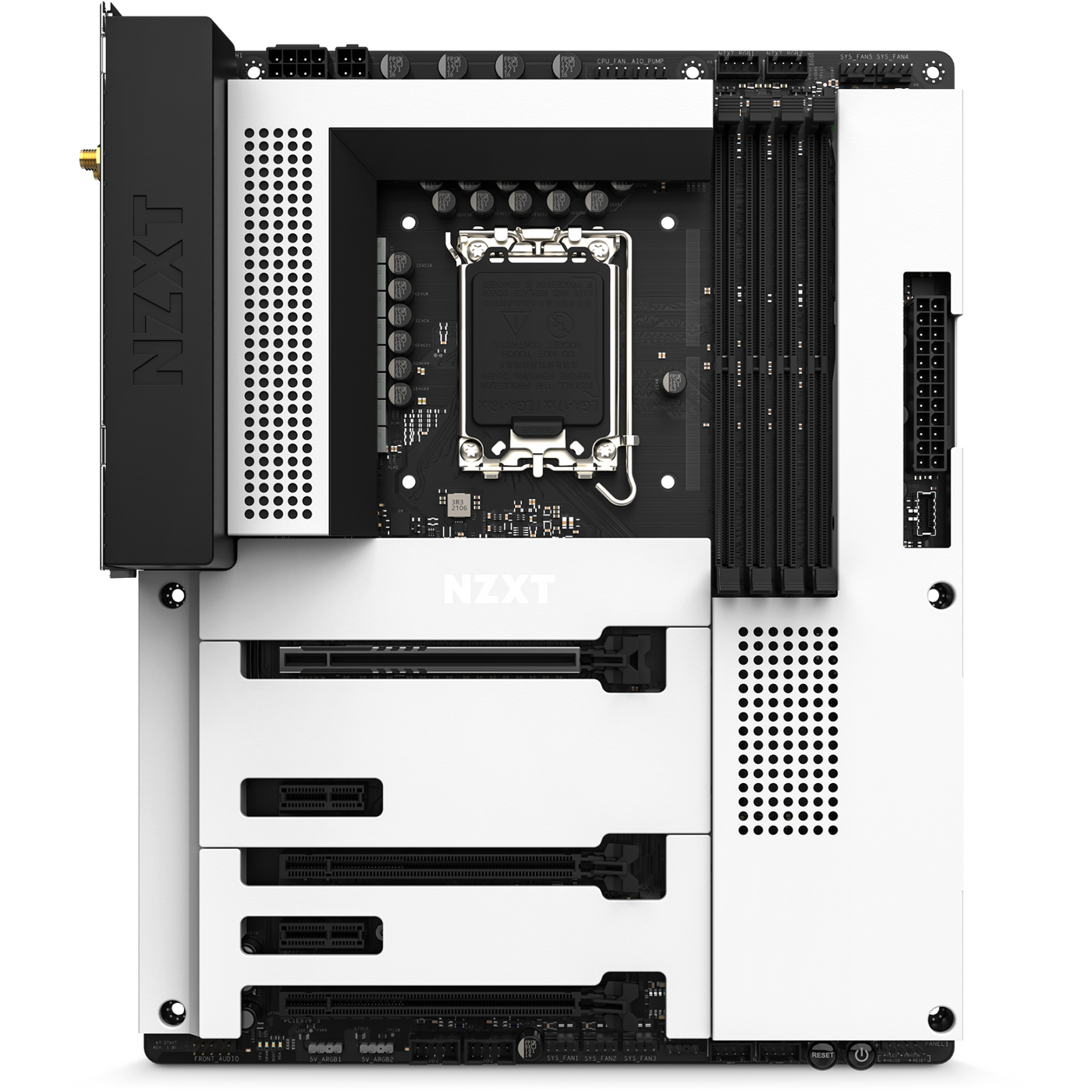

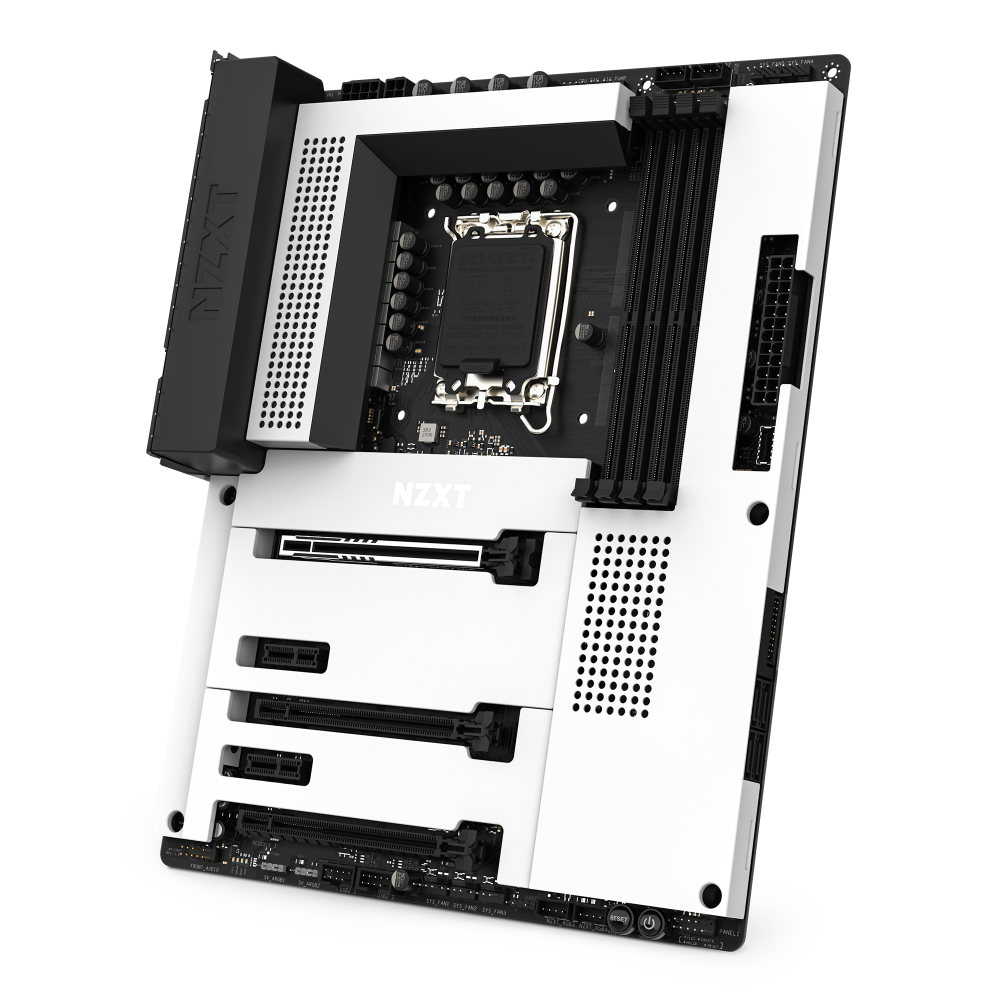

The NZXT N7 Z790 White motherboard is a premium ATX platform built for Intel’s latest 12th, 13th, and 14th Gen CPUs. With a full white metal cover, integrated Wi-Fi 6E, PCIe 5.0, and support for DDR5 memory, it offers exceptional performance and elegant aesthetics. Designed with creators and gamers in mind, it features powerful connectivity and seamless NZXT CAM integration for fan and RGB control.
Specification
Details
Form Factor
ATX
Chipset
Intel Z790
CPU Socket
LGA 1700
CPU Support
12th, 13th, and 14th Gen Intel Core processors
Memory Support
4× DDR5 DIMMs, up to 192GB, up to 7200+ MHz (OC)
Expansion Slots
1× PCIe 5.0 x16, 2× PCIe 4.0 x16, 2× PCIe 3.0 x1
Storage Support
3× M.2 (PCIe 4.0 x4 & SATA), 4× SATA III 6Gb/s
Graphics Output
1× HDMI 2.0
LAN
2.5G Realtek RTL8125BG
Wi-Fi & Bluetooth
Intel Wi-Fi 6E & Bluetooth 5.3
Audio
Realtek ALC1220 8-channel HD Audio with S/PDIF

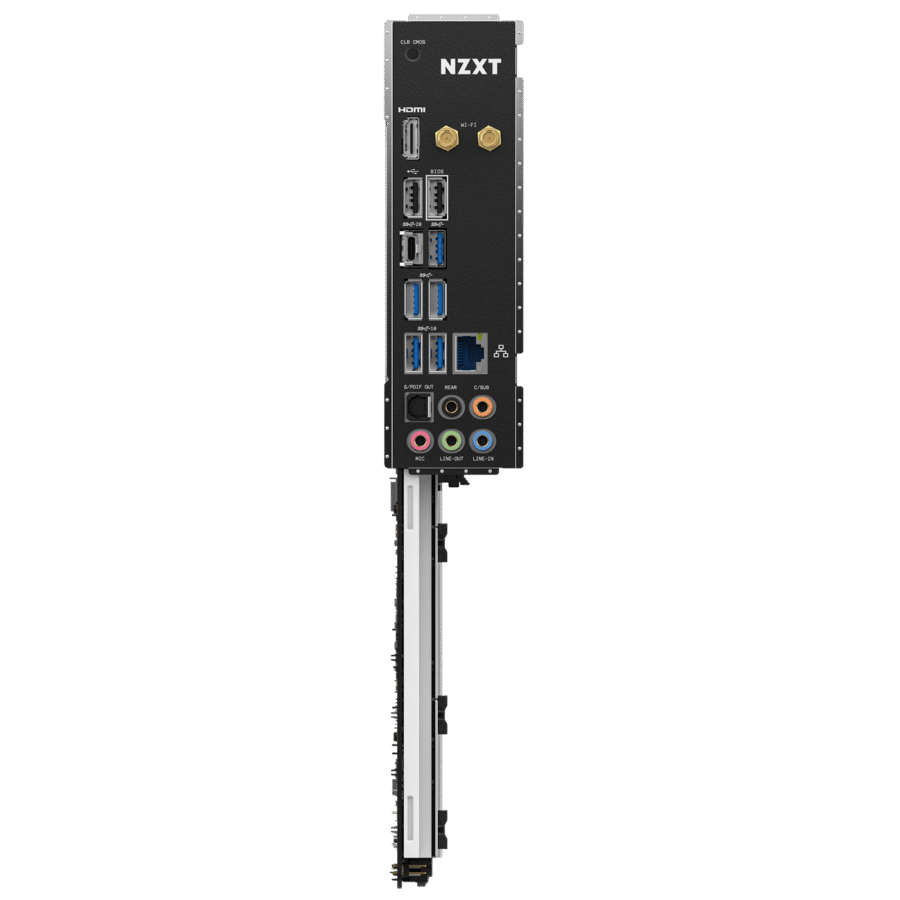

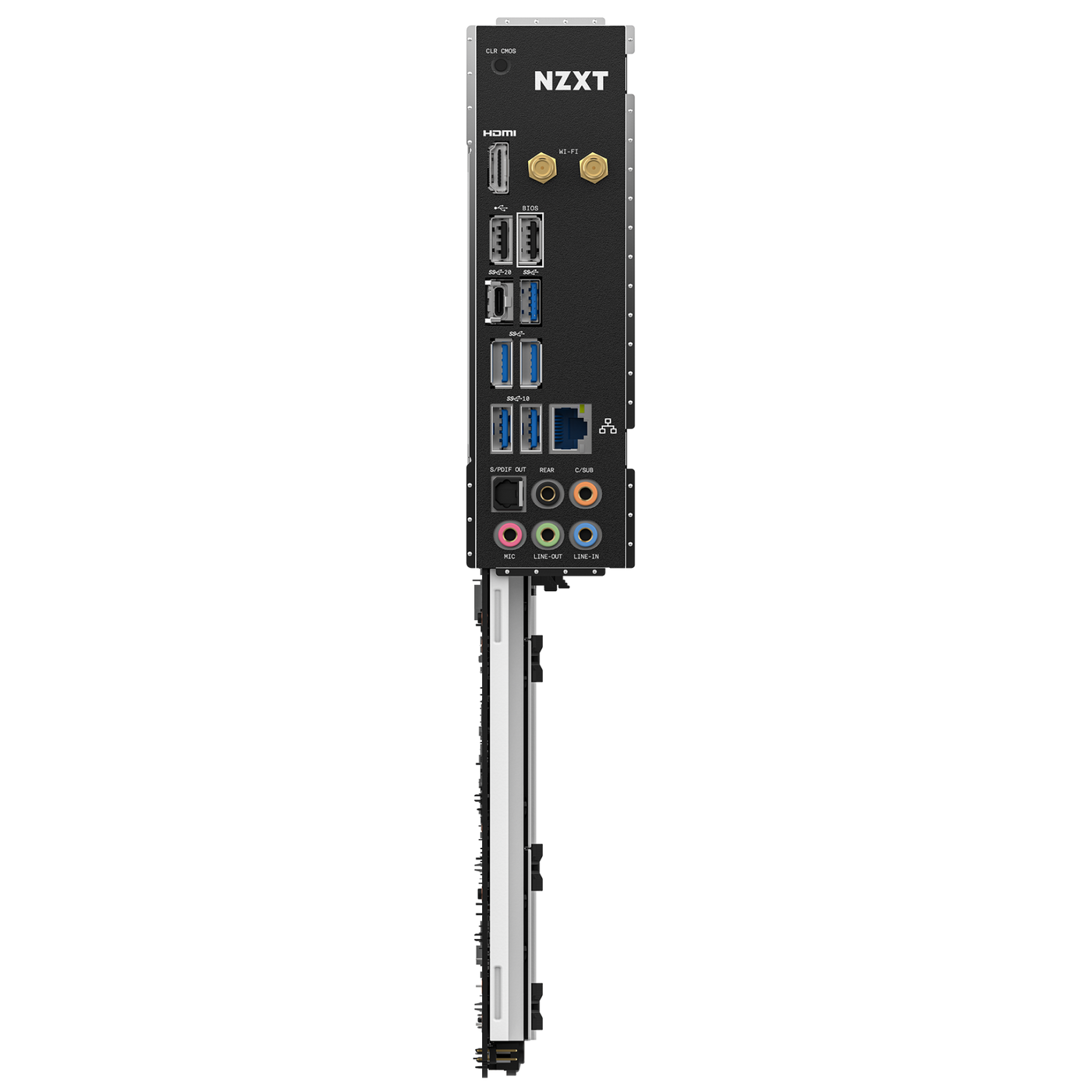

USB Ports (Rear I/O)
1× USB 3.2 Gen 2×2 Type-C, 1× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 2× USB 2.0

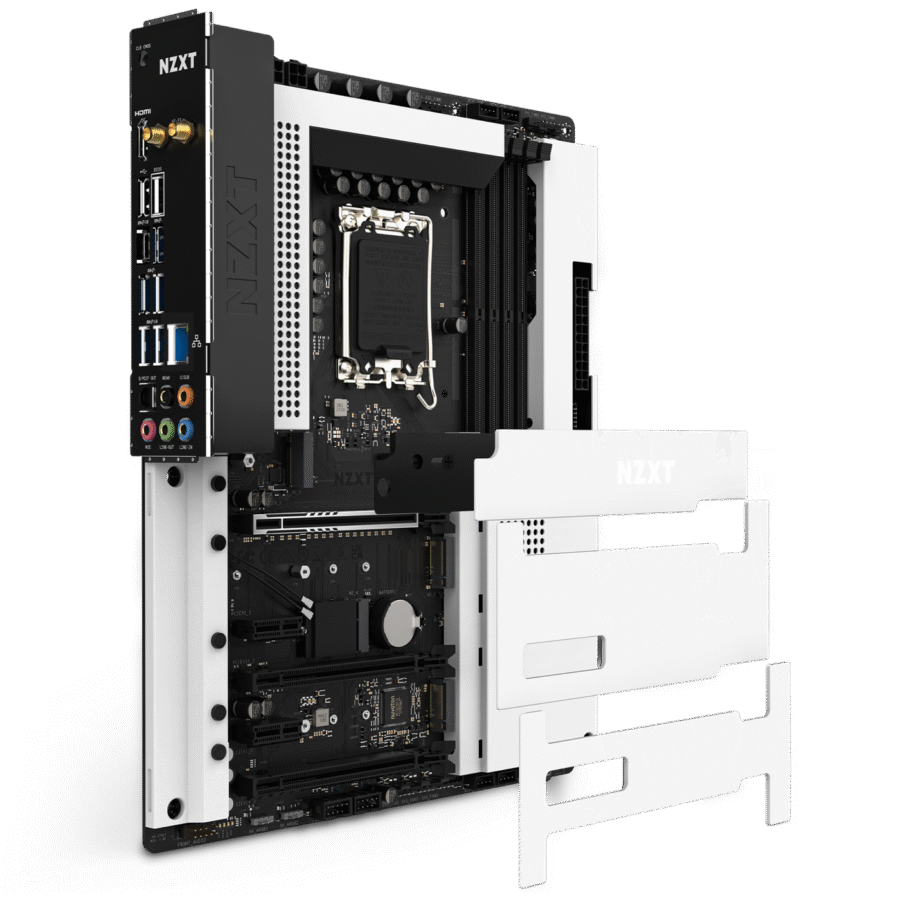

Sleek all-white metal cover with clean cable management layout
Supports high-performance DDR5 memory up to 7200MHz
PCIe 5.0 GPU support and triple M.2 slots for blazing storage speeds
Integrated Wi-Fi 6E and 2.5G LAN for ultra-fast networking
CAM-powered RGB and fan control with multiple headers
Reinforced slots and efficient VRM cooling design

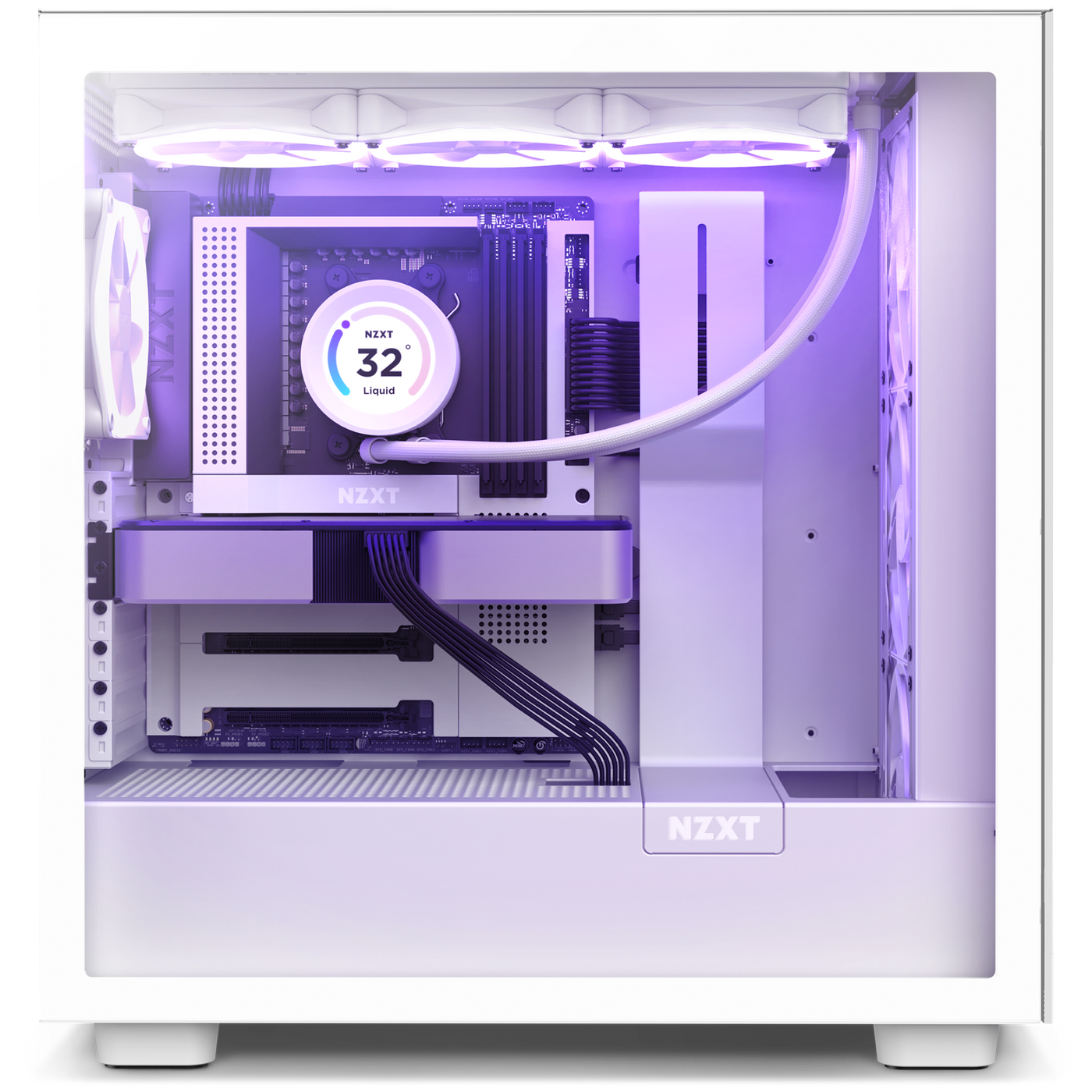

Ideal for gaming, streaming, editing, and custom PC builds
The NZXT N7 Z790 White DDR5 Motherboard is a powerful blend of minimalist design and enthusiast-grade features, offering a clean look and reliable performance for any modern Intel build.
